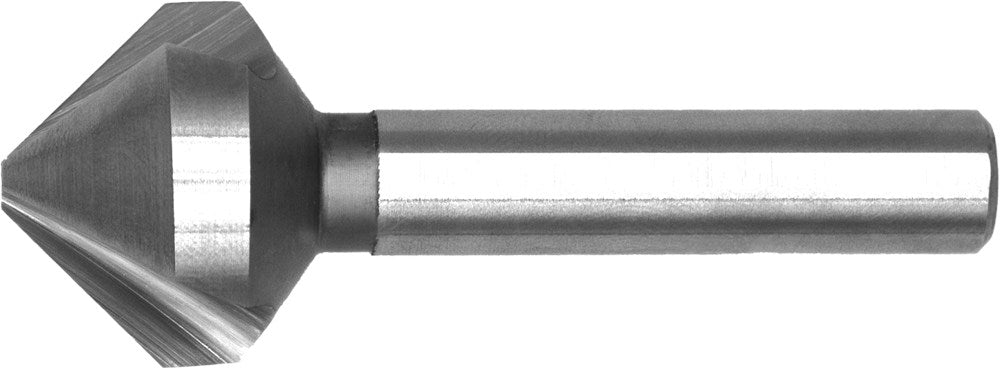

PHANTOM HP2 UNI HSS-E VARI VERZINKBOOR 16.5 MM DIN 335-C 90° 3 SNIJKANTEN MET DRIEVLAKS SCHACHT
PHANTOM HP2 UNI HSS-E VARI VERZINKBOOR 16.5 MM DIN 335-C 90° 3 SNIJKANTEN MET DRIEVLAKS SCHACHT
Normale prijs
€34,80
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
DIN 335-C. met drievlaks schacht
| Norm | DIN 335-C |
|---|---|
| Oppervlak | Blank geslepen |
| Familie | HP2 UNI |
| Koelkanaal | Nee |
| Snijrichting | Rechts |
| Gereedschapsmateriaal | HSS-E |
| Schachttype | Cilindrisch met 3 platte vlakken |
| Variant | met variabele tandsteek |

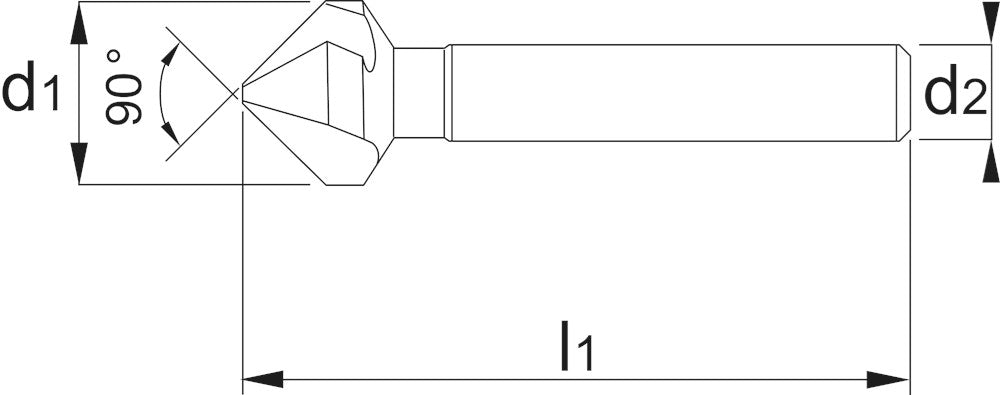

| Totaallengte (l1) | 60 mm |
| Schacht Ø (d2) | 10 mm |
| Tolerantie d2 (Tol. d2) | h9 |
| Diameter Ø (d1) | 16.5 mm |
| Verzinkbereik (Min Max Ø) | 3.2-16.5 mm |
| Draadmaat (M) | M8 |
