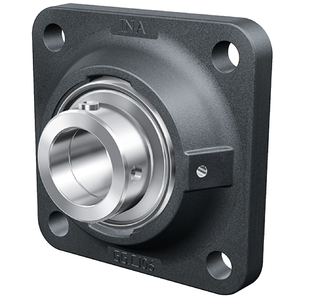

INA RCJ50-XL-N
Normale prijs
€187,98
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 50 mm Bore diameter
L 143 mm Flange width
U 66.2 mm Total height unit
Cr 35.000 N Basic dynamic load rating. radial
C0r 23.200 N Basic static load rating. radial
Cur 990 N Fatigue load limit. radial
˜m 2.63 kg Weight

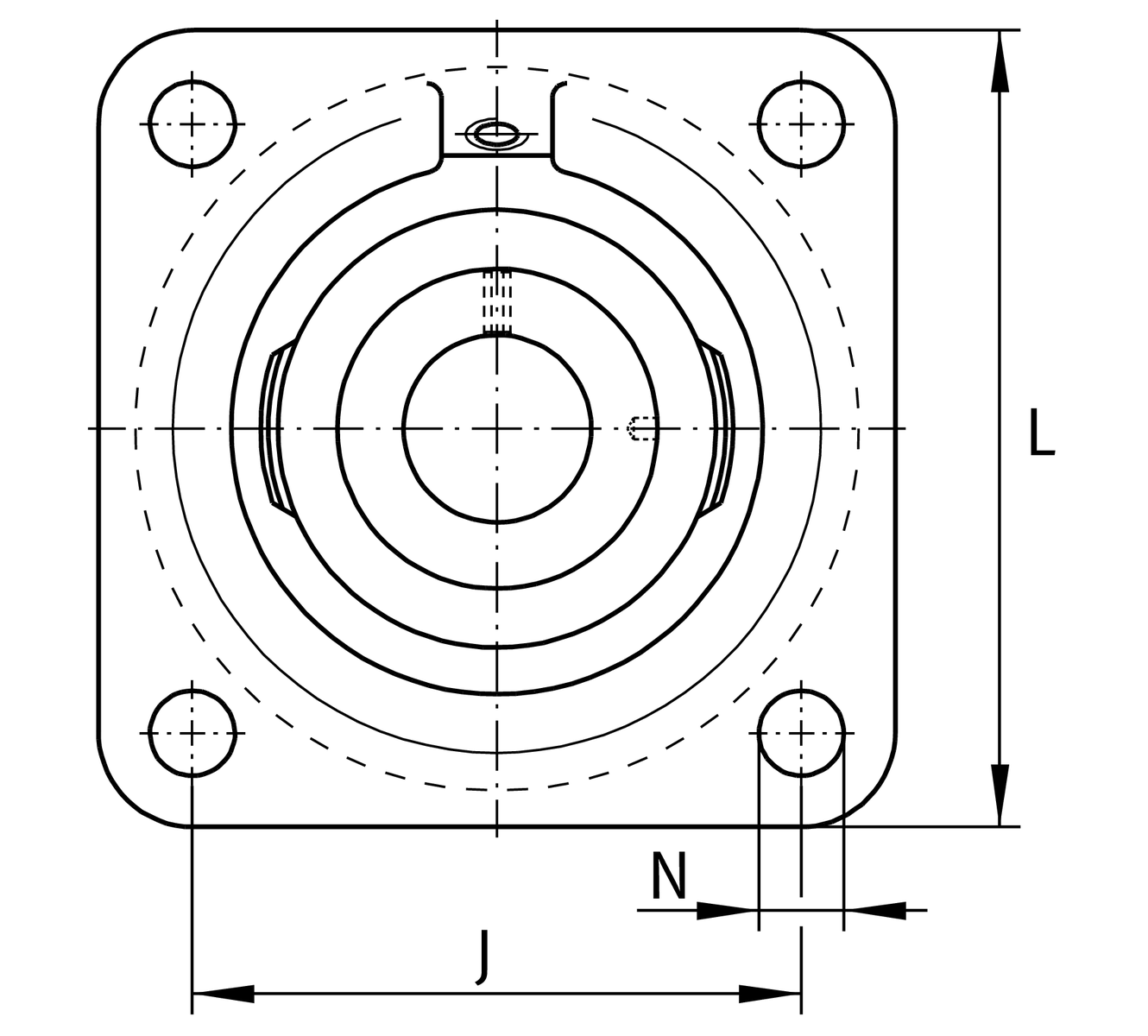

Mounting dimensions
J 111 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes

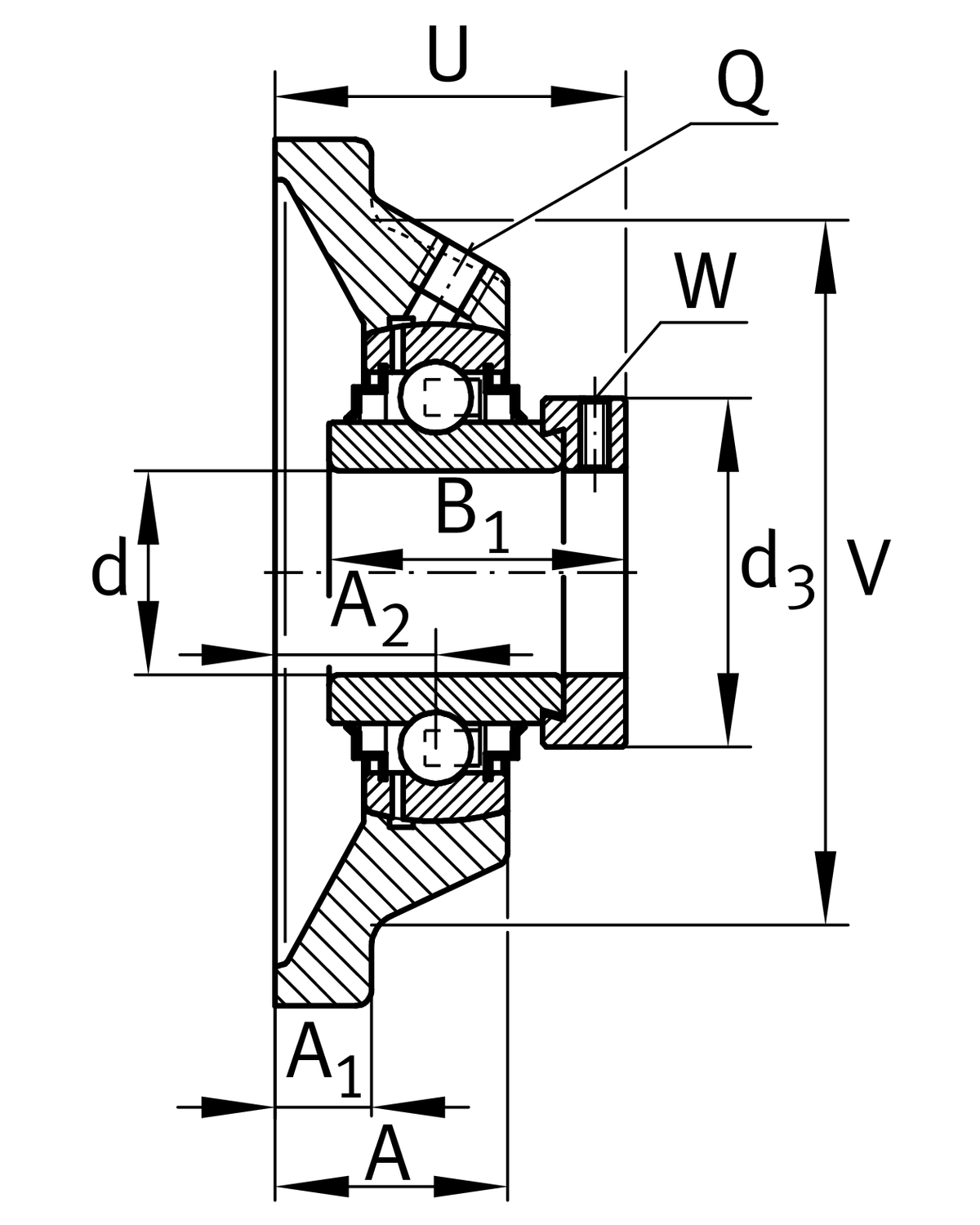

Dimensions
A 41 mm Height housing
A1 13 mm Thickness of flange
A2 28 mm Distance raceway
V 119 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 69 mm Outside diameter locking device
d 50 mm Bore diameter
L 143 mm Flange width
U 66.2 mm Total height unit
Cr 35.000 N Basic dynamic load rating. radial
C0r 23.200 N Basic static load rating. radial
Cur 990 N Fatigue load limit. radial
˜m 2.63 kg Weight

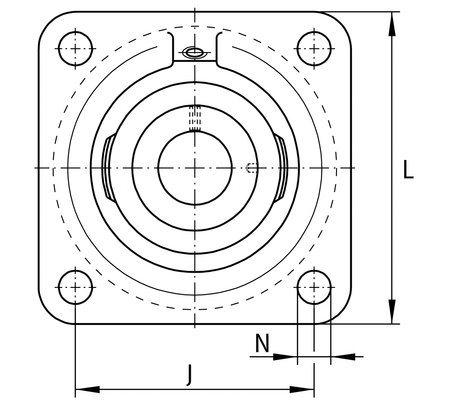

Mounting dimensions
J 111 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes
Dimensions
A 41 mm Height housing
A1 13 mm Thickness of flange
A2 28 mm Distance raceway
V 119 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 69 mm Outside diameter locking device
| d | 50 mm Boring |
|---|---|
| L | 143 mm Totale lengte |
| U | 66.2 mm Hoogte |
| Cr | 35.000 N Dynamische belasting |
| C0r | 23.200 N Statische belasting |
| Cur | 990 N Lineaire belasting |
| Gewicht | 2630 Gram |
| J | 111 mm |
| N | 18 mm |
| A | 41 mm Breedte |
| A1 | 13 mm |
| A2 | 28 mm |
| V | 119 mm |
| Q | M6 Smeeraansluiting |
| d3 | 69 mm |
