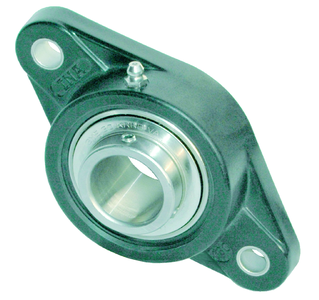

INA RCJTY35 -TV-VA-HLA
Normale prijs
€360,95
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 35 mm Bore diameter
L 90 mm Flange width
H 163 mm Height flange
U 43,4 mm Total height unit
Cr 24.600 N Basic dynamic load rating, radial
C0r 14.600 N Basic static load rating, radial
Cur 720 N Fatigue load limit, radial
C0r G 14.900 N Load carrying capacity (housing)
˜m 0,641 kg Weight

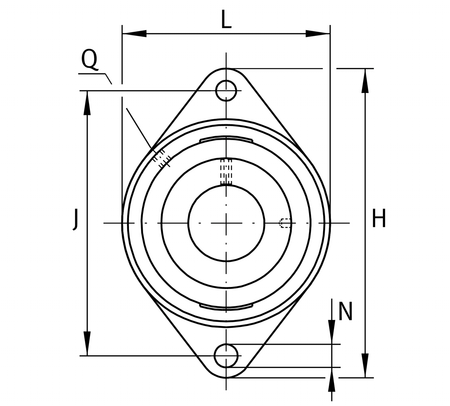

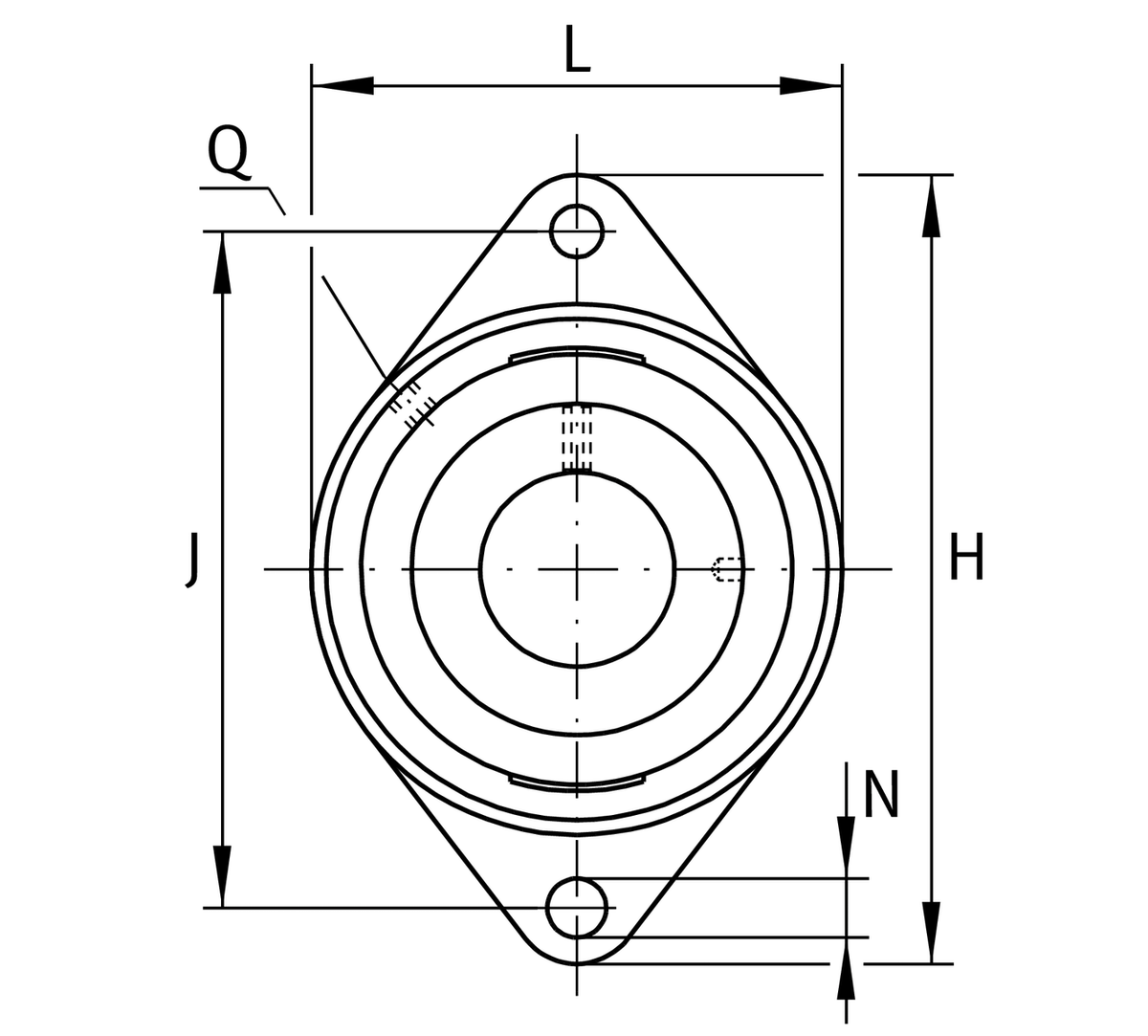

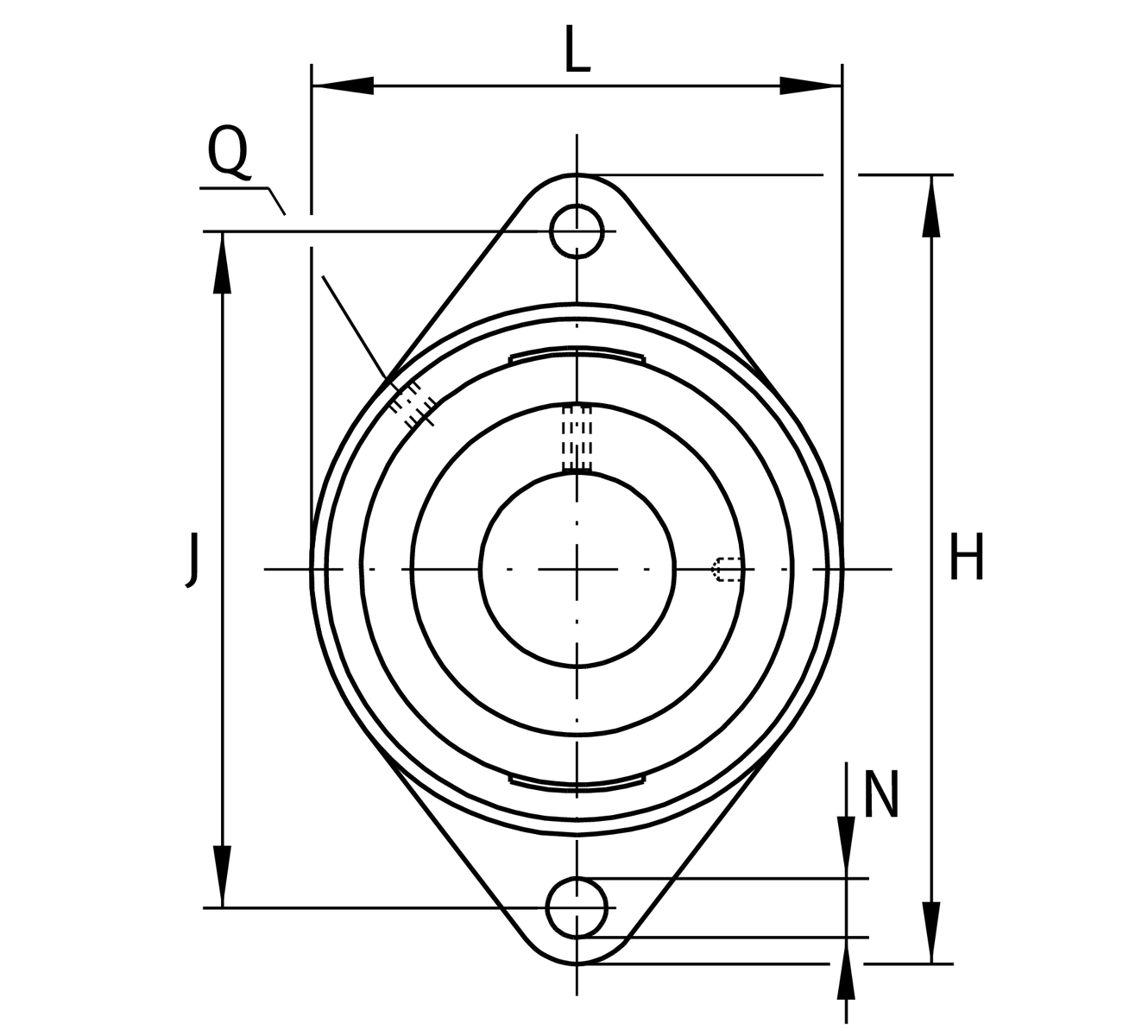

Mounting dimensions
J 130 mm Distance fixing bore
N 13 mm Fixing bore
W 3 mm Width across flats
n 2 Number of screwing holes

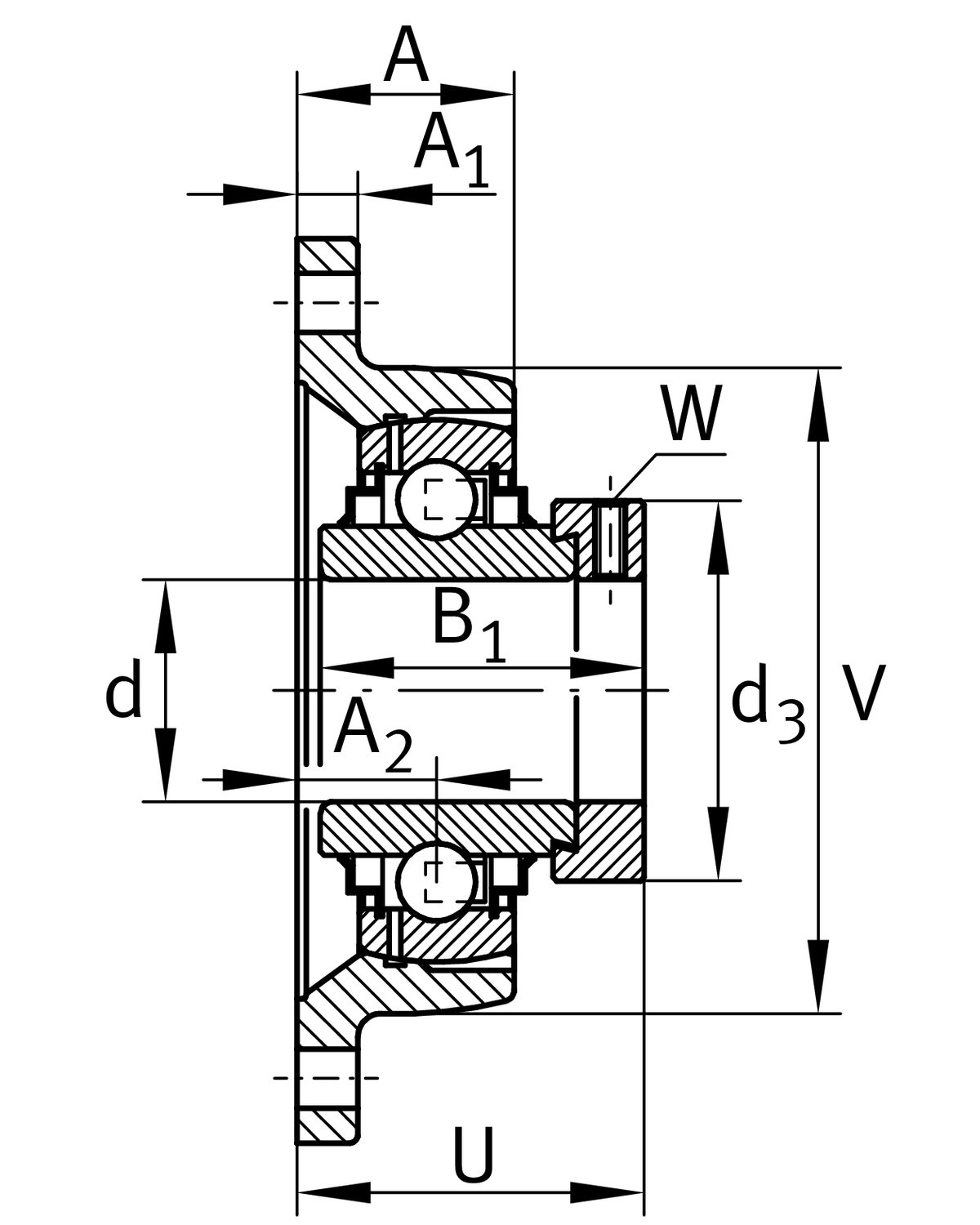

Dimensions
A 32,8 mm Height housing
A1 16,1 mm Thickness of flange
A2 18 mm Distance raceway
B 42,9 mm Width
d 35 mm Bore diameter
L 90 mm Flange width
H 163 mm Height flange
U 43,4 mm Total height unit
Cr 24.600 N Basic dynamic load rating, radial
C0r 14.600 N Basic static load rating, radial
Cur 720 N Fatigue load limit, radial
C0r G 14.900 N Load carrying capacity (housing)
˜m 0,641 kg Weight
Mounting dimensions
J 130 mm Distance fixing bore
N 13 mm Fixing bore
W 3 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 32,8 mm Height housing
A1 16,1 mm Thickness of flange
A2 18 mm Distance raceway
B 42,9 mm Width
