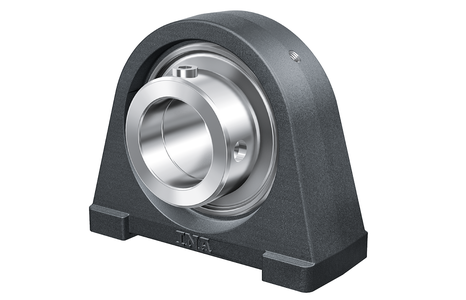

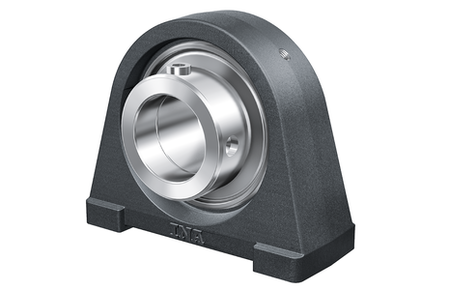

INA RSHE20-XL-N
Normale prijs
€86,82
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 20 mm Bore diameter
L 65 mm Length total
H2 64 mm Height
˜m 0.49 kg Weight

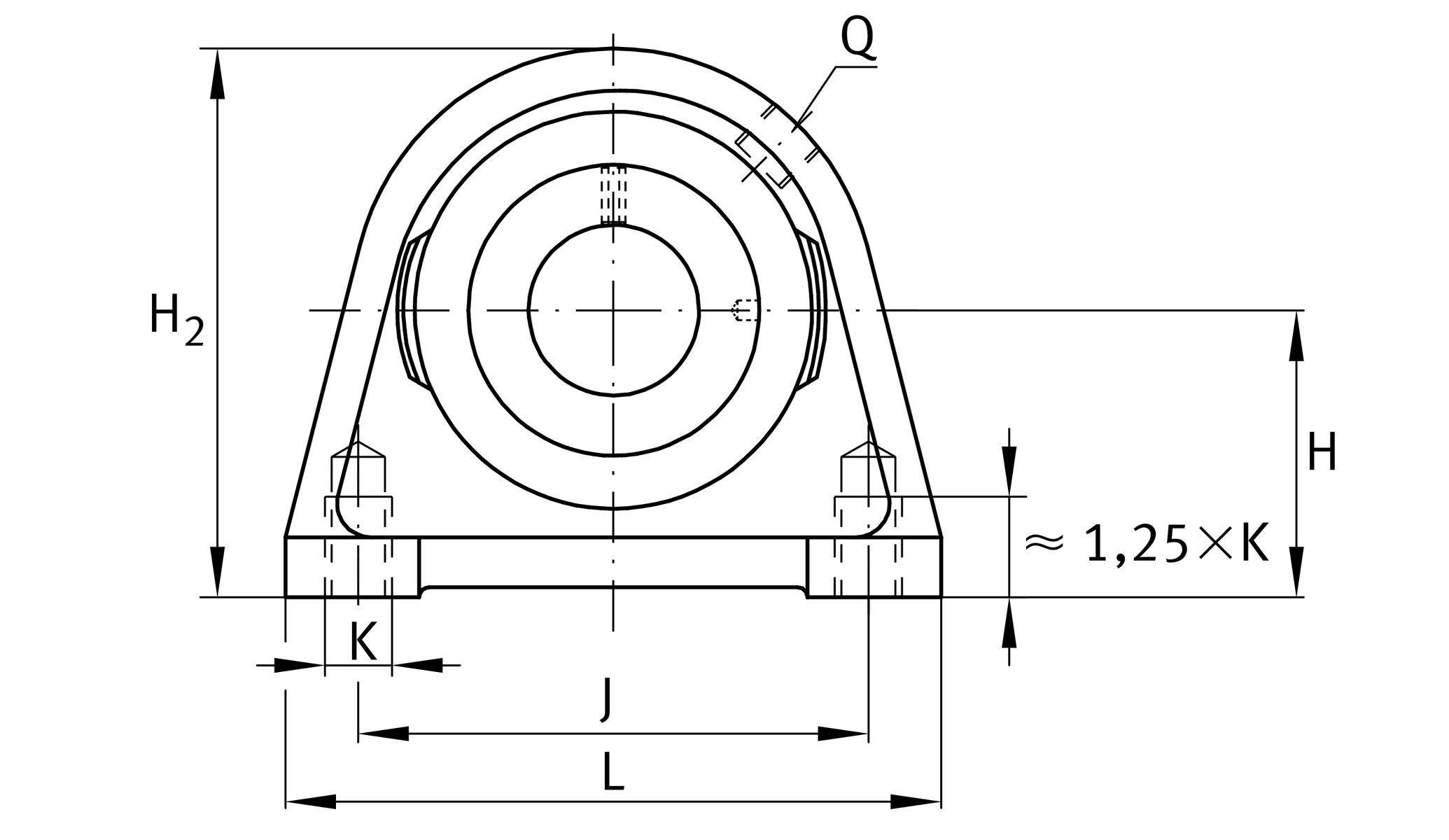

Mounting dimensions
J 50.8 mm Distance fixing bore
K M8 Thread fixing bore

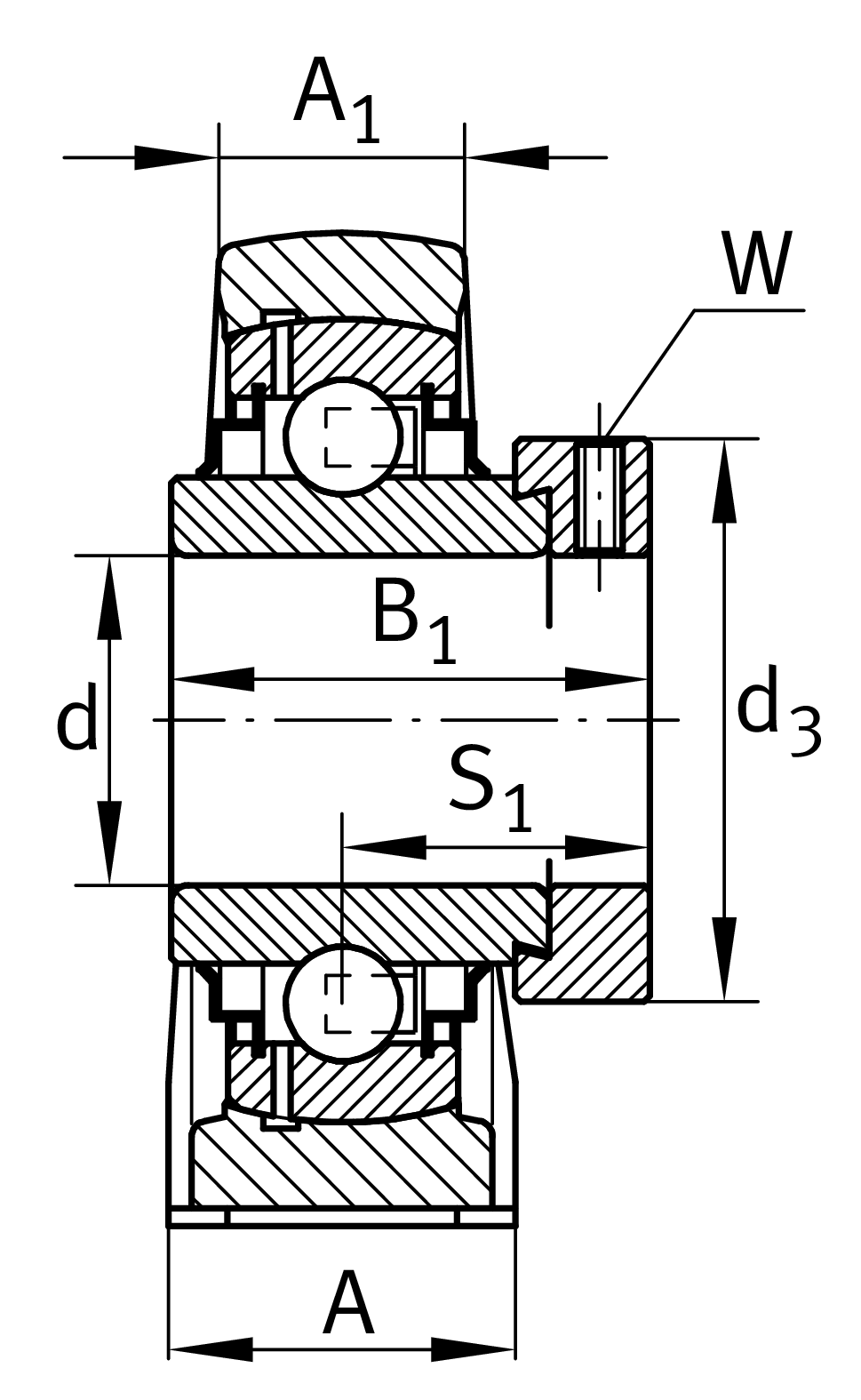

Dimensions
H 33.3 mm Distance shaft axis
A 32 mm Width (base)
A1 19 mm Width (head)
Q M6 Connection thread for lubrication
S1 26.6 mm Distance of raceway to locking collar
d 20 mm Bore diameter
L 65 mm Length total
H2 64 mm Height
˜m 0.49 kg Weight
Mounting dimensions
J 50.8 mm Distance fixing bore
K M8 Thread fixing bore
Dimensions
H 33.3 mm Distance shaft axis
A 32 mm Width (base)
A1 19 mm Width (head)
Q M6 Connection thread for lubrication
S1 26.6 mm Distance of raceway to locking collar
