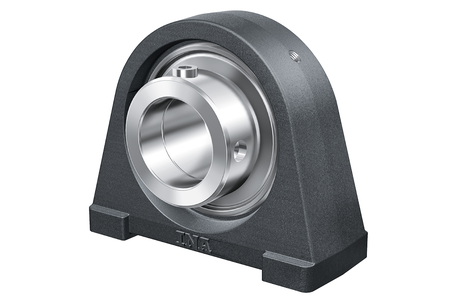

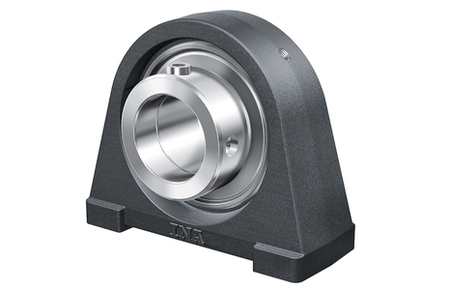

INA RSHE35-XL-N
Normale prijs
€140,74
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 35 mm Bore diameter
L 103 mm Length total
H2 93 mm Height
˜m
1,34 kg Weight

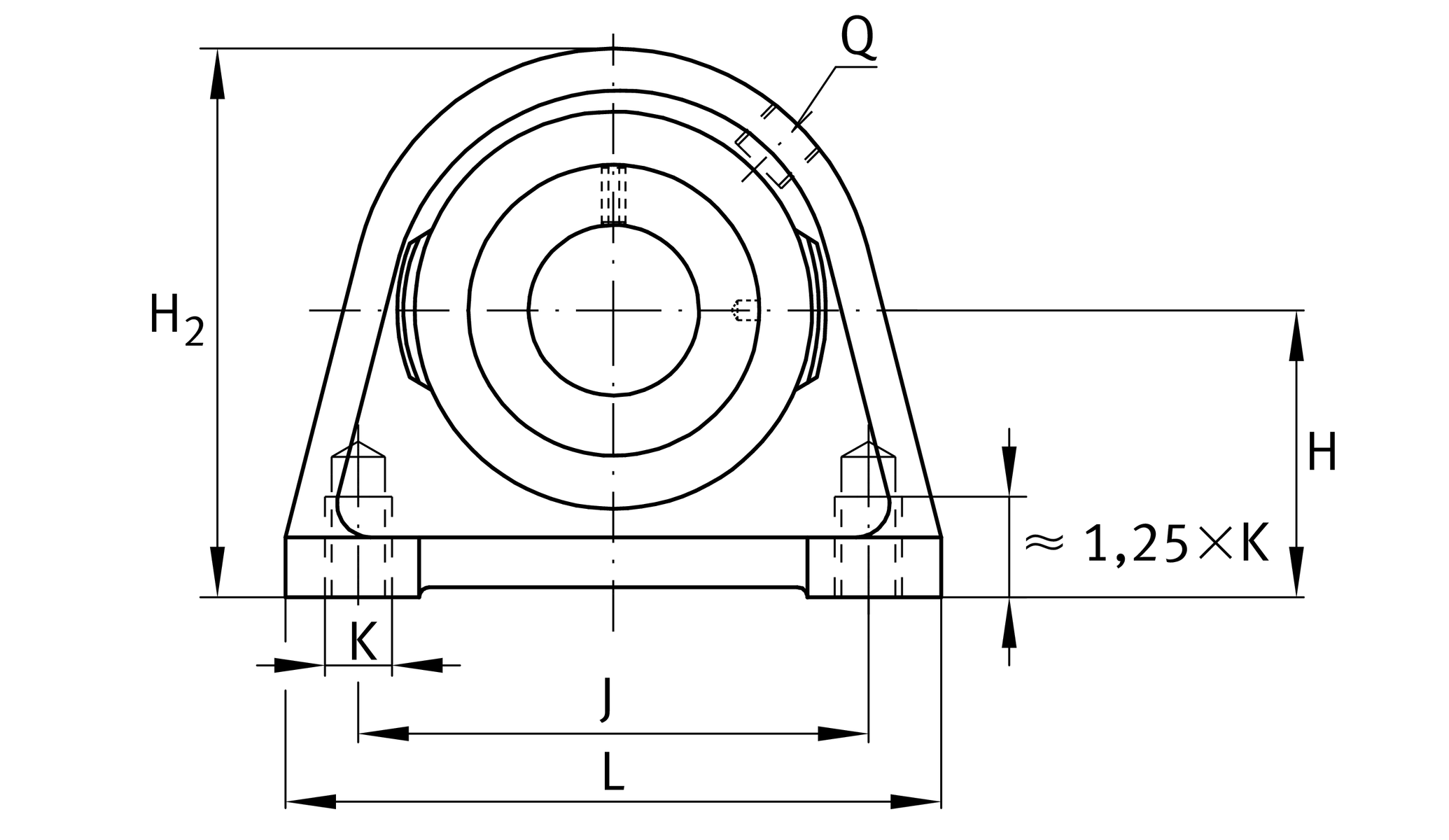

Mounting dimensions
J 82,6 mm Distance fixing bore
K M10 Thread fixing bore

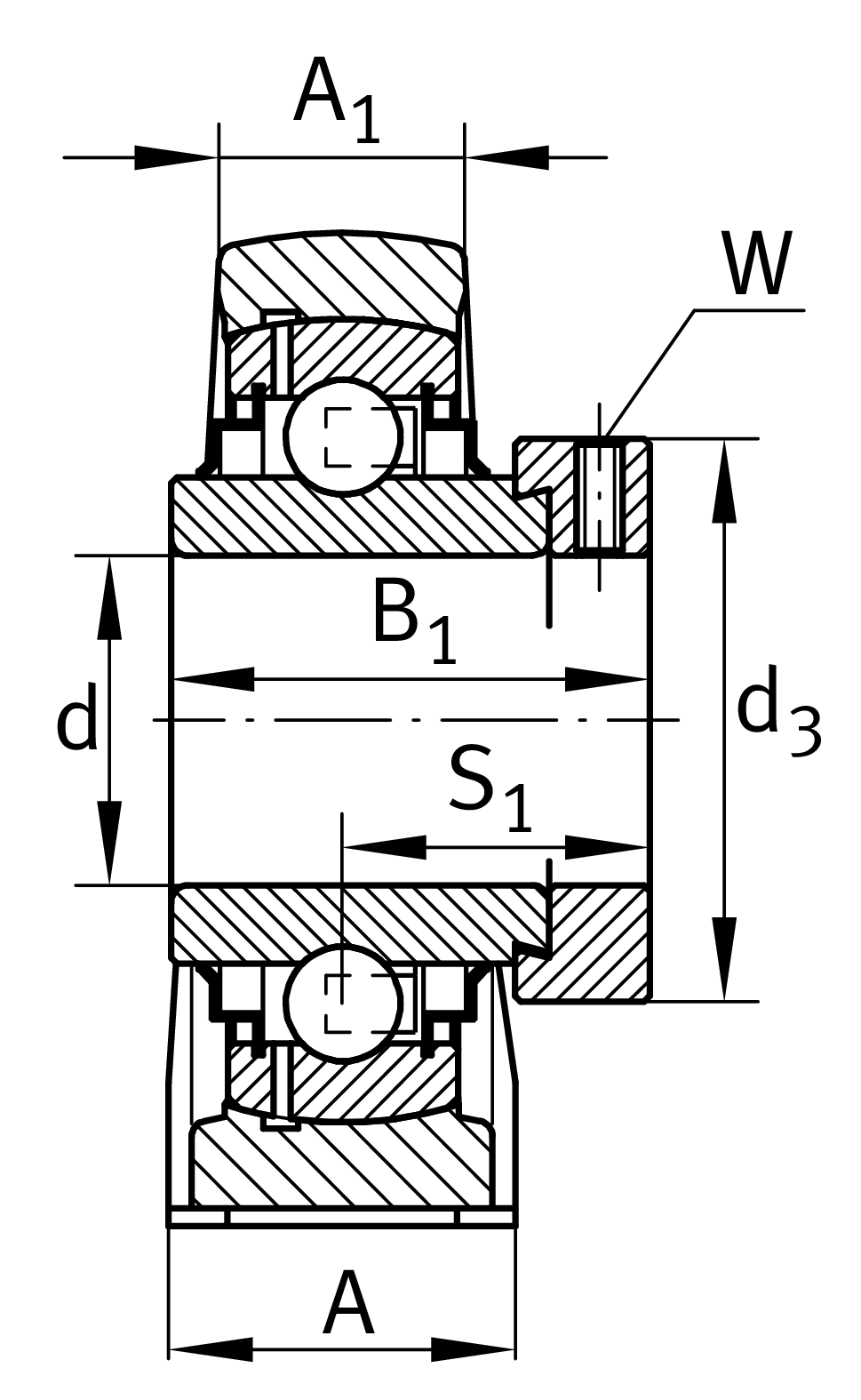

Dimensions
H 47,6 mm Distance shaft axis
A 45 mm Width (base)
A1 27 mm Width (head)
Q M6 Connection thread for lubrication
B1 51,3 mm Locking collar total width
S1 32,5 mm Distance of raceway to locking collar
d 35 mm Bore diameter
L 103 mm Length total
H2 93 mm Height
˜m
1,34 kg Weight
Mounting dimensions
J 82,6 mm Distance fixing bore
K M10 Thread fixing bore
Dimensions
H 47,6 mm Distance shaft axis
A 45 mm Width (base)
A1 27 mm Width (head)
Q M6 Connection thread for lubrication
B1 51,3 mm Locking collar total width
S1 32,5 mm Distance of raceway to locking collar
