INA RSHE50-XL-N
Normale prijs
€206,57
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

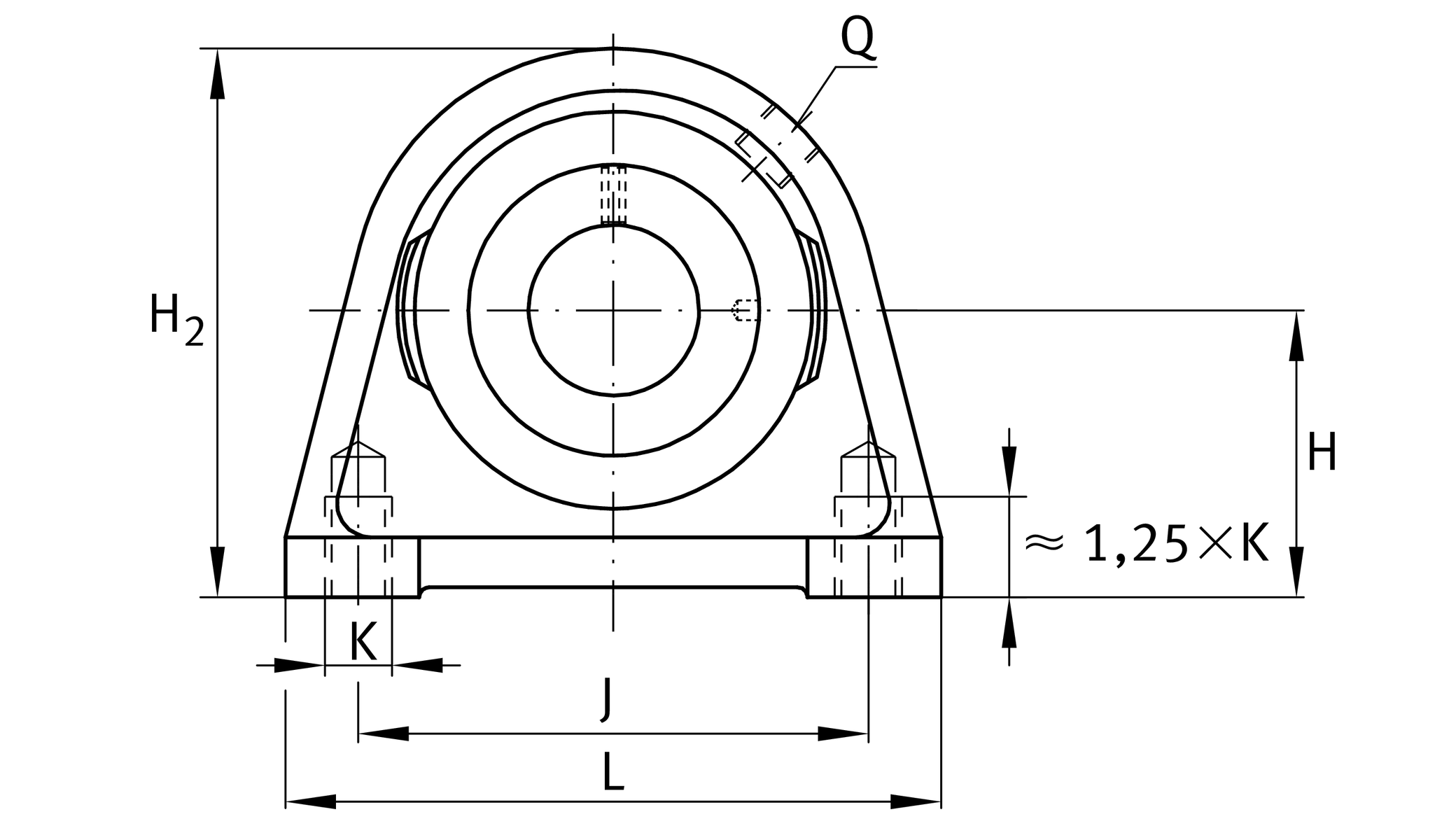

Main Dimensions & Performance Data
d 50 mm Bore diameter
L 135 mm Length total
H2 115 mm Height
˜m 2.48 kg Weight
Mounting dimensions
J 101.6 mm Distance fixing bore
K M16 Thread fixing bore

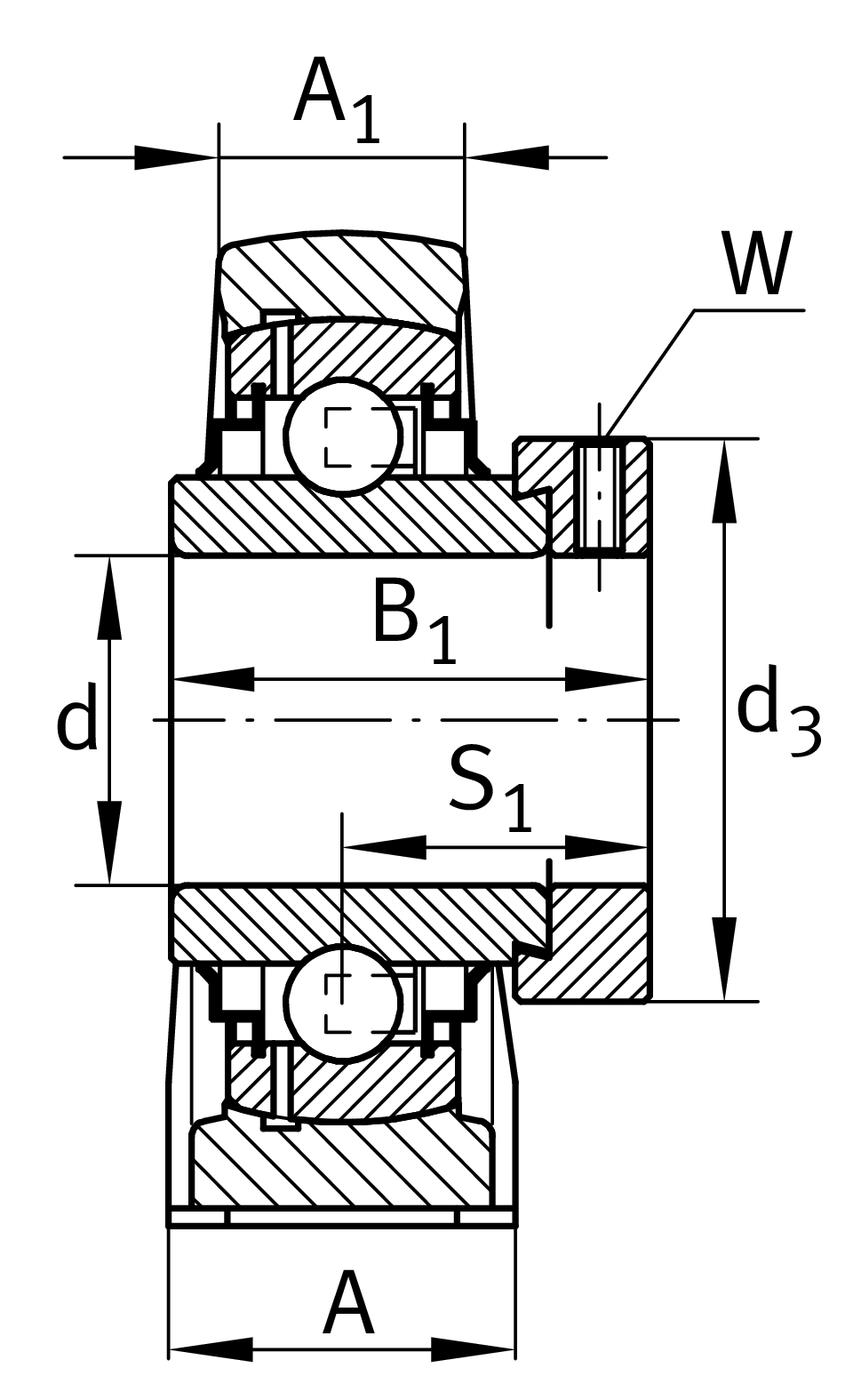

Dimensions
H 57.2 mm Distance shaft axis
A 54 mm Width (base)
A1 34 mm Width (head)
Q M6 Connection thread for lubrication
S1 38.2 mm Distance of raceway to locking collar
d 50 mm Bore diameter
L 135 mm Length total
H2 115 mm Height
˜m 2.48 kg Weight
Mounting dimensions
J 101.6 mm Distance fixing bore
K M16 Thread fixing bore
Dimensions
H 57.2 mm Distance shaft axis
A 54 mm Width (base)
A1 34 mm Width (head)
Q M6 Connection thread for lubrication
S1 38.2 mm Distance of raceway to locking collar
