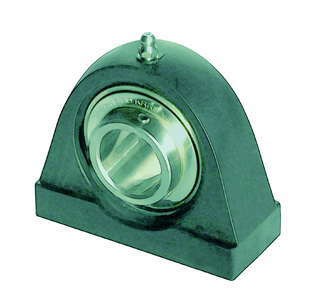

INA RSHEY40-TV-VA-HLA
Normale prijs
€401,45
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 40 mm Bore diameter
L 120 mm Length
H2 100.5 mm Height
˜m 0.929 kg Weight

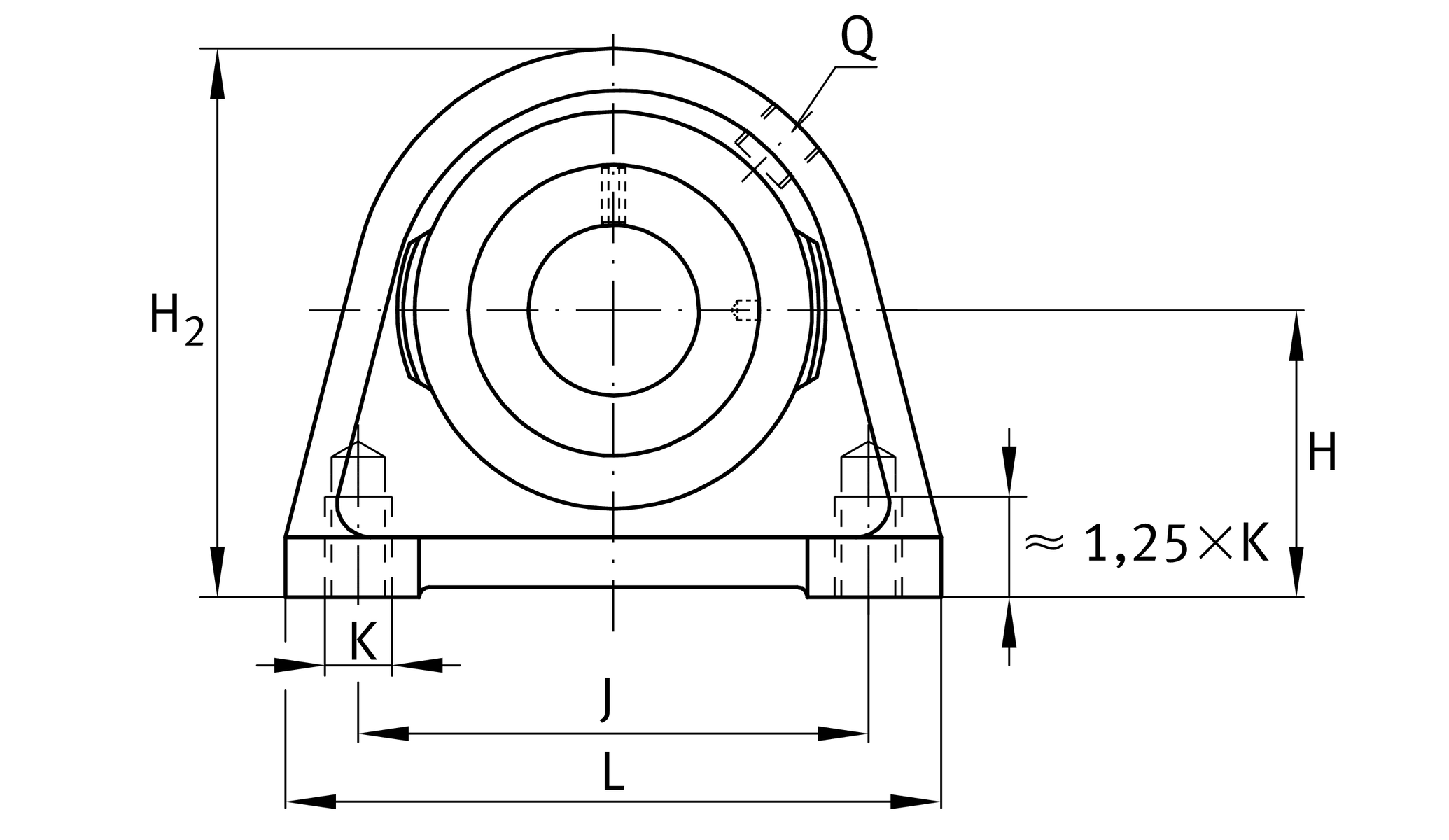

Mounting dimensions
J 88.9 mm Distance fixing bore
K M12 Thread fixing bore

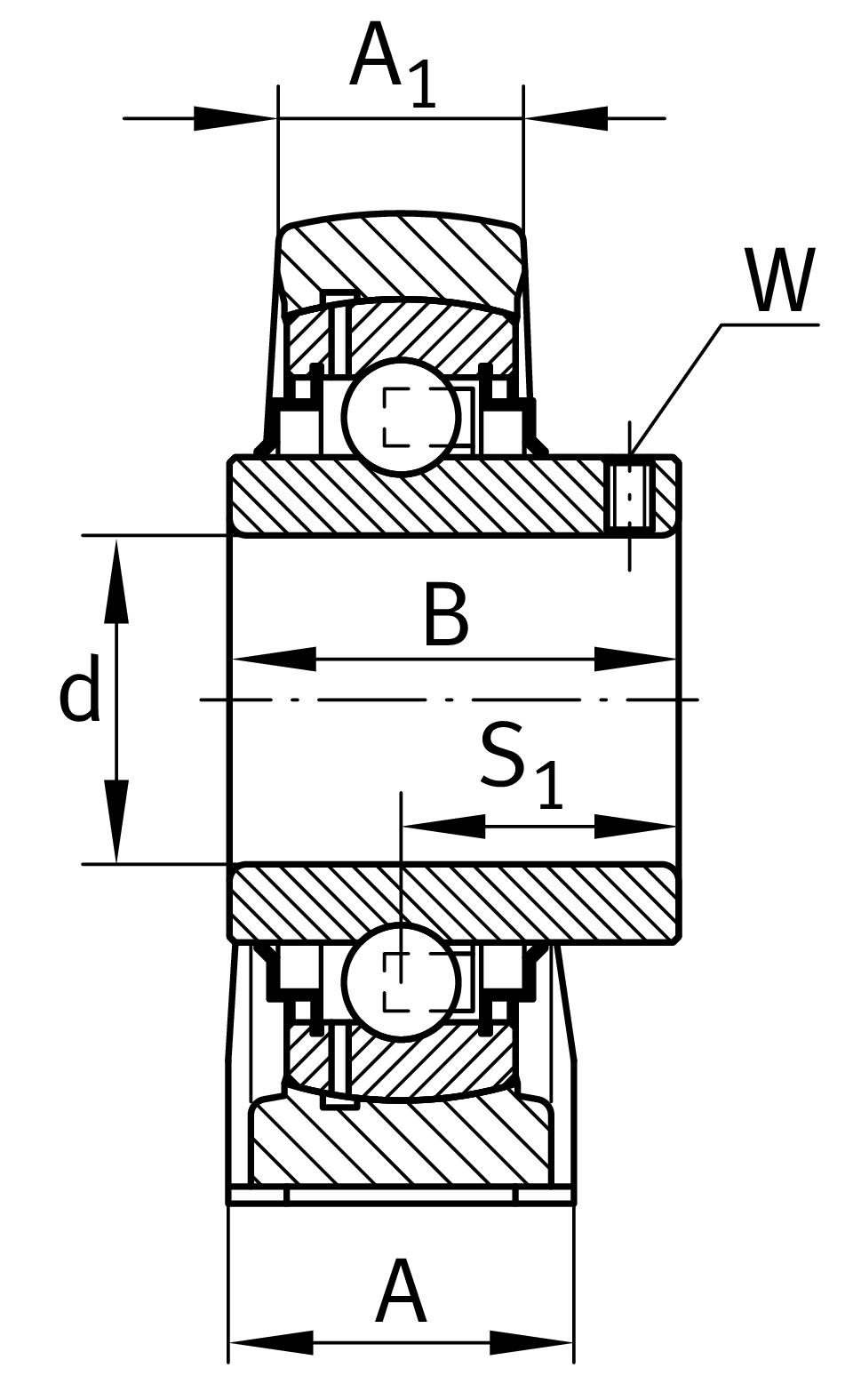

Dimensions
H 49.2 mm Distance shaft axis
A 48 mm Width (base)
S 30.2 mm Distance raceway
B 49.2 mm Width
Q 1/4 - 28 UNF Connection thread for lubrication
d 40 mm Bore diameter
L 120 mm Length
H2 100.5 mm Height
˜m 0.929 kg Weight
Mounting dimensions
J 88.9 mm Distance fixing bore
K M12 Thread fixing bore
Dimensions
H 49.2 mm Distance shaft axis
A 48 mm Width (base)
S 30.2 mm Distance raceway
B 49.2 mm Width
Q 1/4 - 28 UNF Connection thread for lubrication
