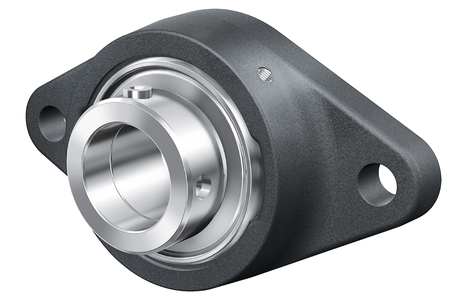

INA RCJT20-XL-N
Normale prijs
€77,36
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 20 mm Bore diameter
L 61 mm Flange width
H 112 mm Height flange
U 45.6 mm Total height unit
Cr 13.600 N Basic dynamic load rating. radial
C0r 6.600 N Basic static load rating. radial
Cur 345 N Fatigue load limit. radial
˜m 0.48 kg Weight

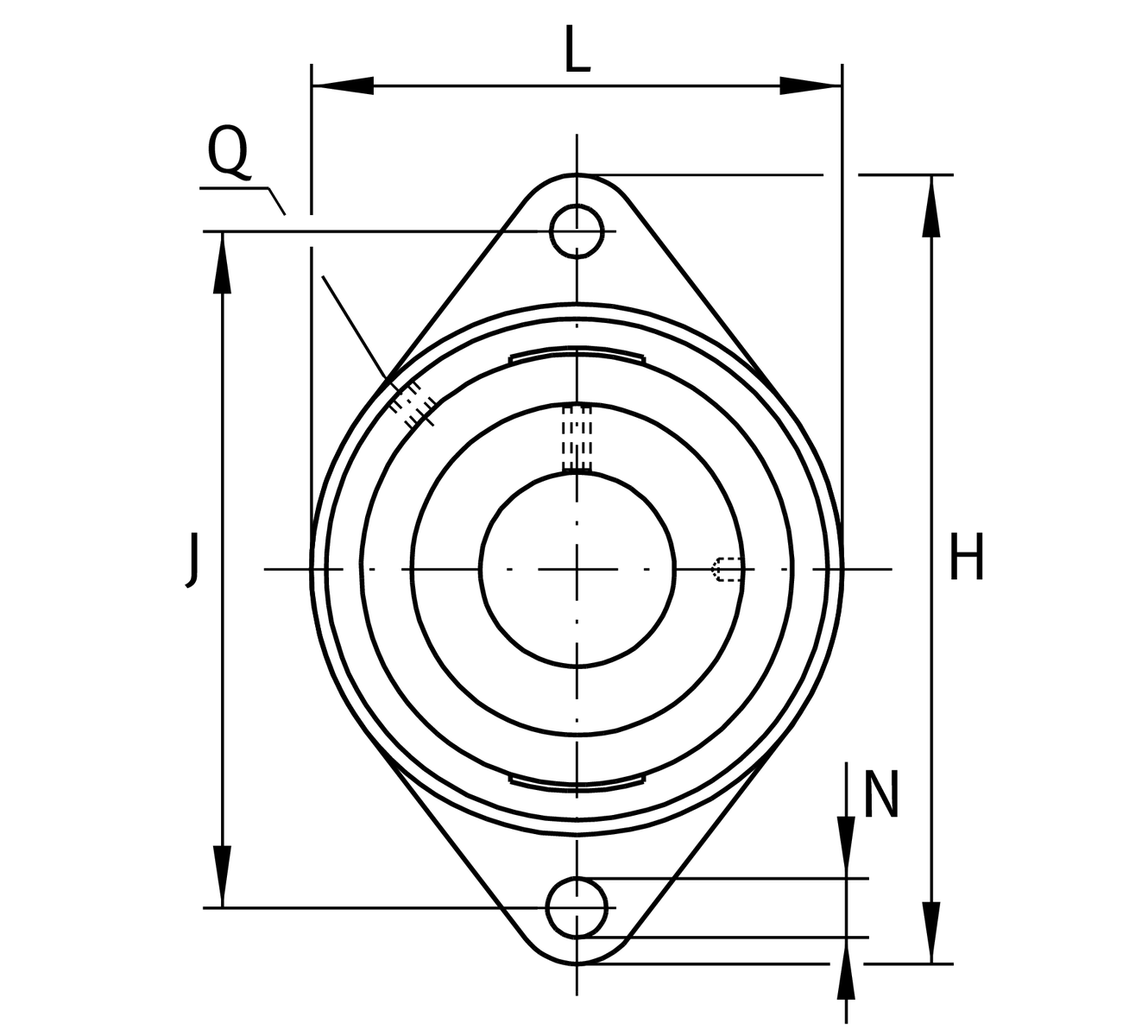

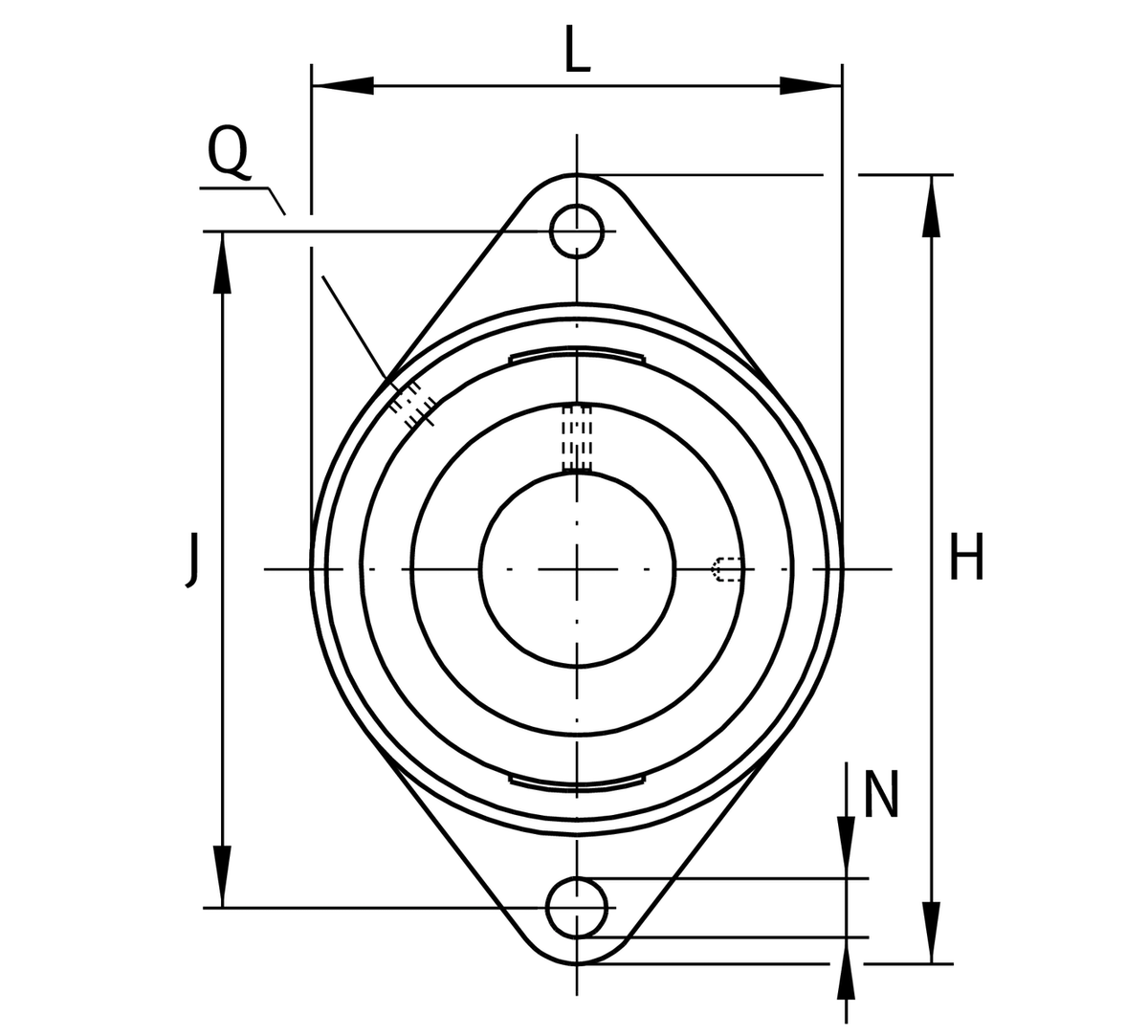

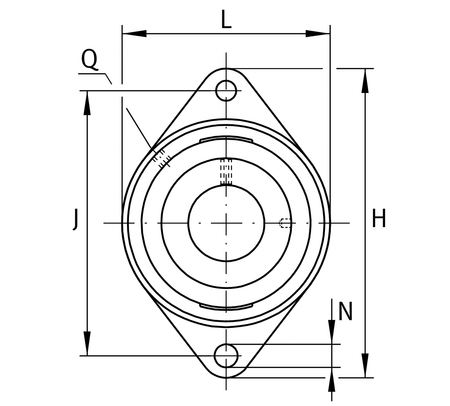

Mounting dimensions
J 90 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 3 mm Width of flats

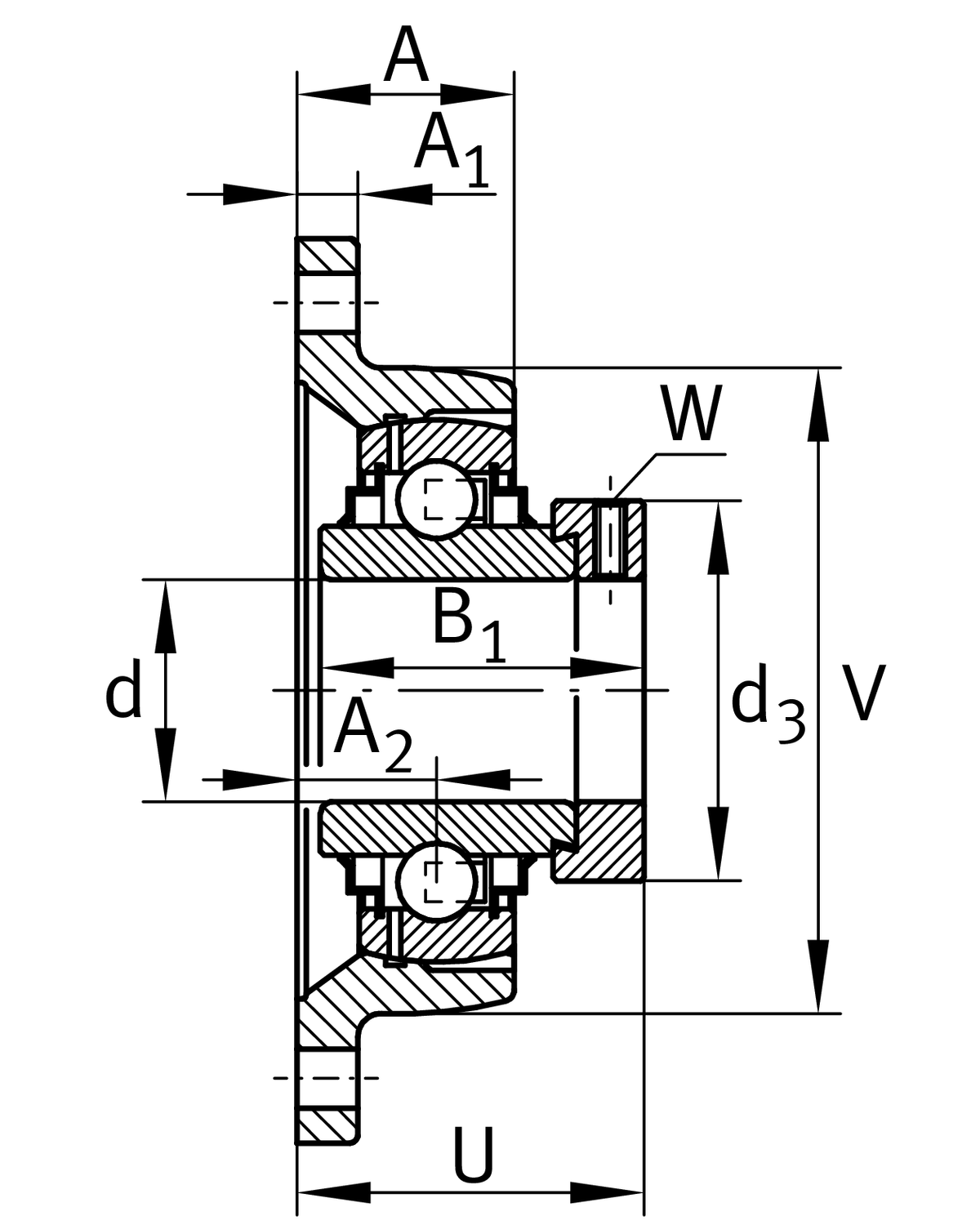

Dimensions
A 28 mm Height housing
A1 10 mm Thickness of flange
A2 19 mm Distance raceway
B1 43.7 mm Locking collar total width
V 61 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 33 mm Outside diameter locking collar
d 20 mm Bore diameter
L 61 mm Flange width
H 112 mm Height flange
U 45.6 mm Total height unit
Cr 13.600 N Basic dynamic load rating. radial
C0r 6.600 N Basic static load rating. radial
Cur 345 N Fatigue load limit. radial
˜m 0.48 kg Weight
Mounting dimensions
J 90 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 3 mm Width of flats
Dimensions
A 28 mm Height housing
A1 10 mm Thickness of flange
A2 19 mm Distance raceway
B1 43.7 mm Locking collar total width
V 61 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 33 mm Outside diameter locking collar
