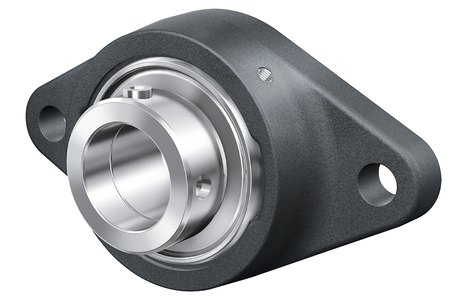

INA RCJT25-XL-N
Normale prijs
€85,50
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

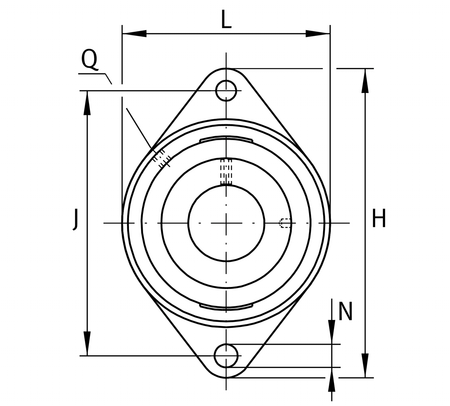

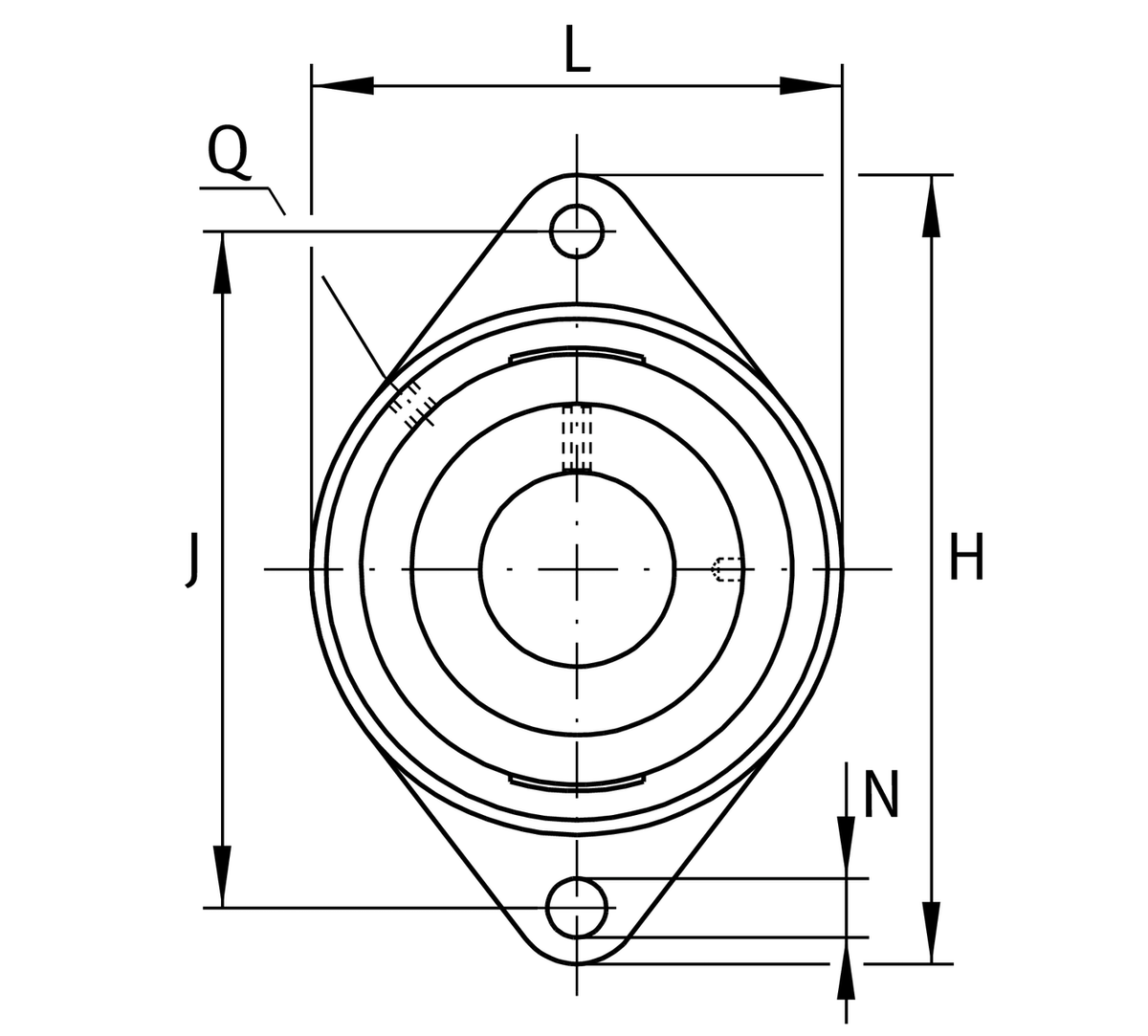

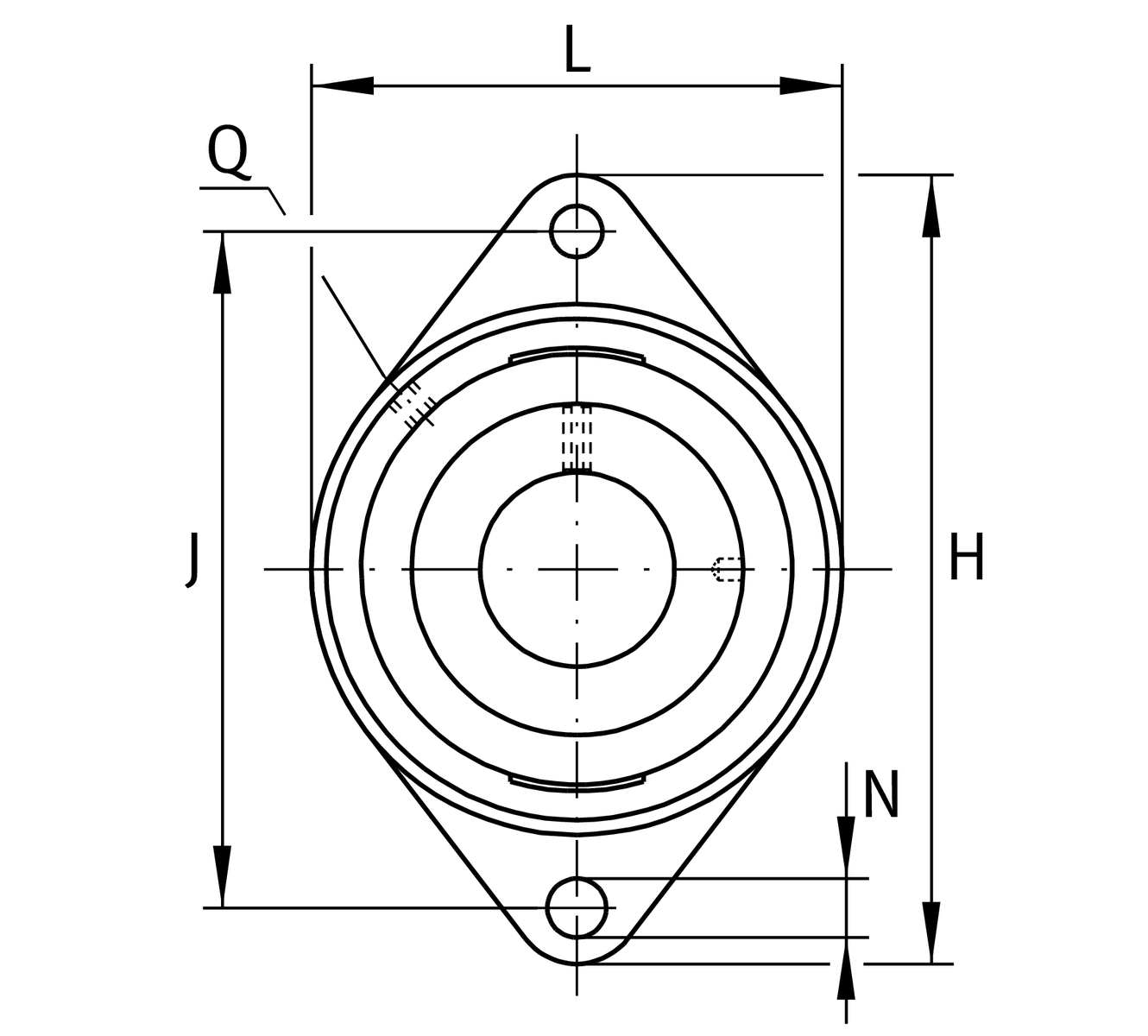

Main Dimensions & Performance Data
d 25 mm Bore diameter
L 70 mm Flange width
H 124 mm Height flange
U 46 mm Total height unit
Cr 14.000 N Basic dynamic load rating. radial
C0r 7.800 N Basic static load rating. radial
Cur 370 N Fatigue load limit. radial
˜m 0.63 kg Weight
Mounting dimensions
J 99 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 3 mm Width of flats

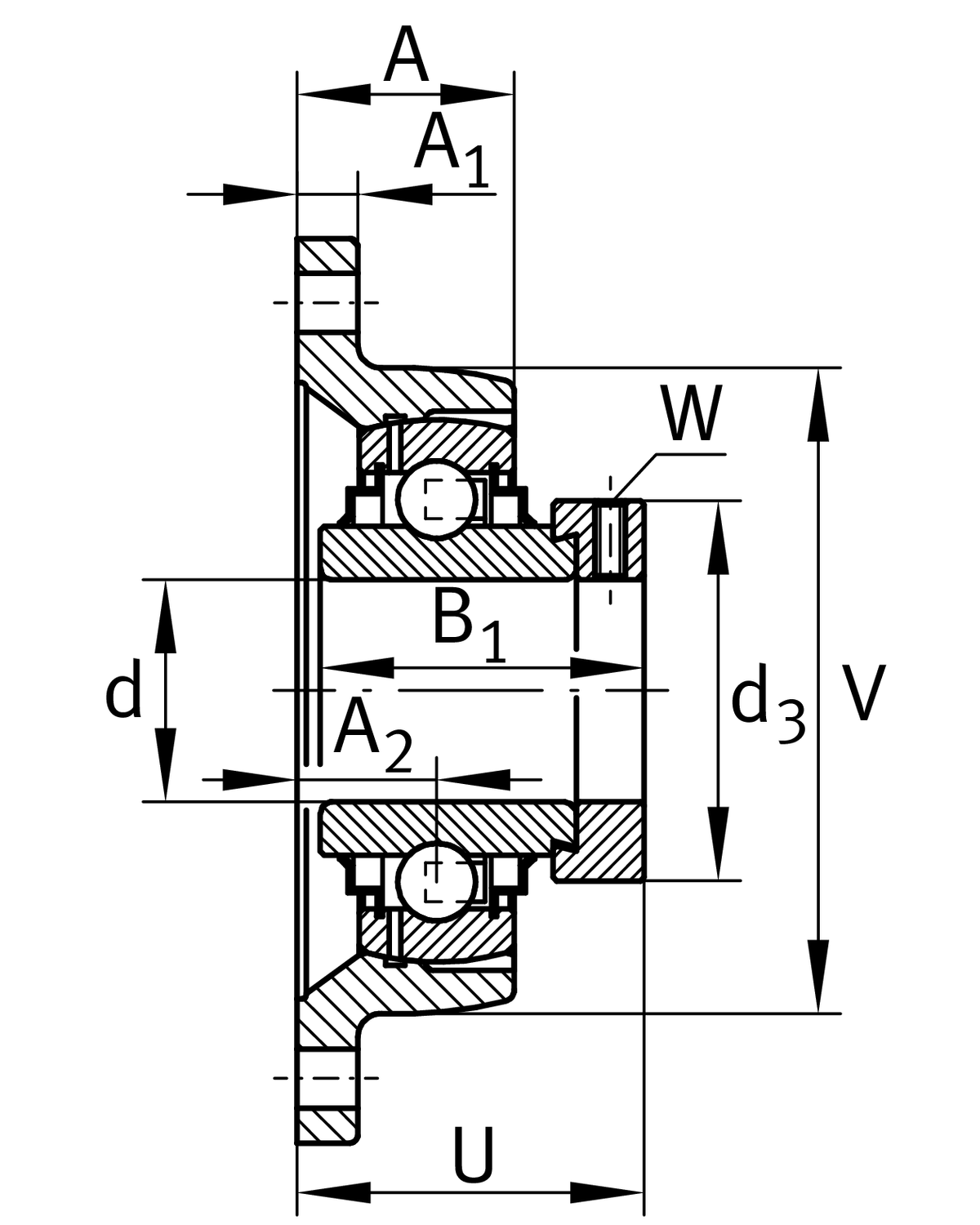

Dimensions
A 28.5 mm Height housing
A1 11 mm Thickness of flange
A2 19 mm Distance raceway
B1 44.5 mm Locking collar total width
V 70 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 37.5 mm Outside diameter locking collar
d 25 mm Bore diameter
L 70 mm Flange width
H 124 mm Height flange
U 46 mm Total height unit
Cr 14.000 N Basic dynamic load rating. radial
C0r 7.800 N Basic static load rating. radial
Cur 370 N Fatigue load limit. radial
˜m 0.63 kg Weight
Mounting dimensions
J 99 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 3 mm Width of flats
Dimensions
A 28.5 mm Height housing
A1 11 mm Thickness of flange
A2 19 mm Distance raceway
B1 44.5 mm Locking collar total width
V 70 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 37.5 mm Outside diameter locking collar
