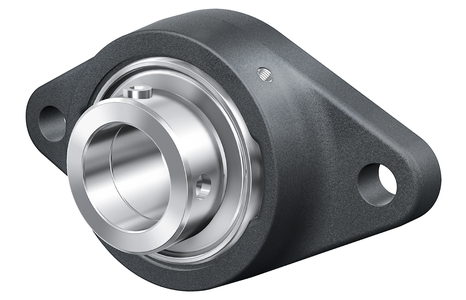

INA RCJT30-XL-N
Normale prijs
€109,05
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 30 mm Bore diameter
L 80 mm Flange width
H 142 mm Height flange
U 50.2 mm Total height unit
Cr 20.700 N Basic dynamic load rating. radial
C0r 11.300 N Basic static load rating. radial
Cur 530 N Fatigue load limit. radial
˜m 0.9 kg Weight

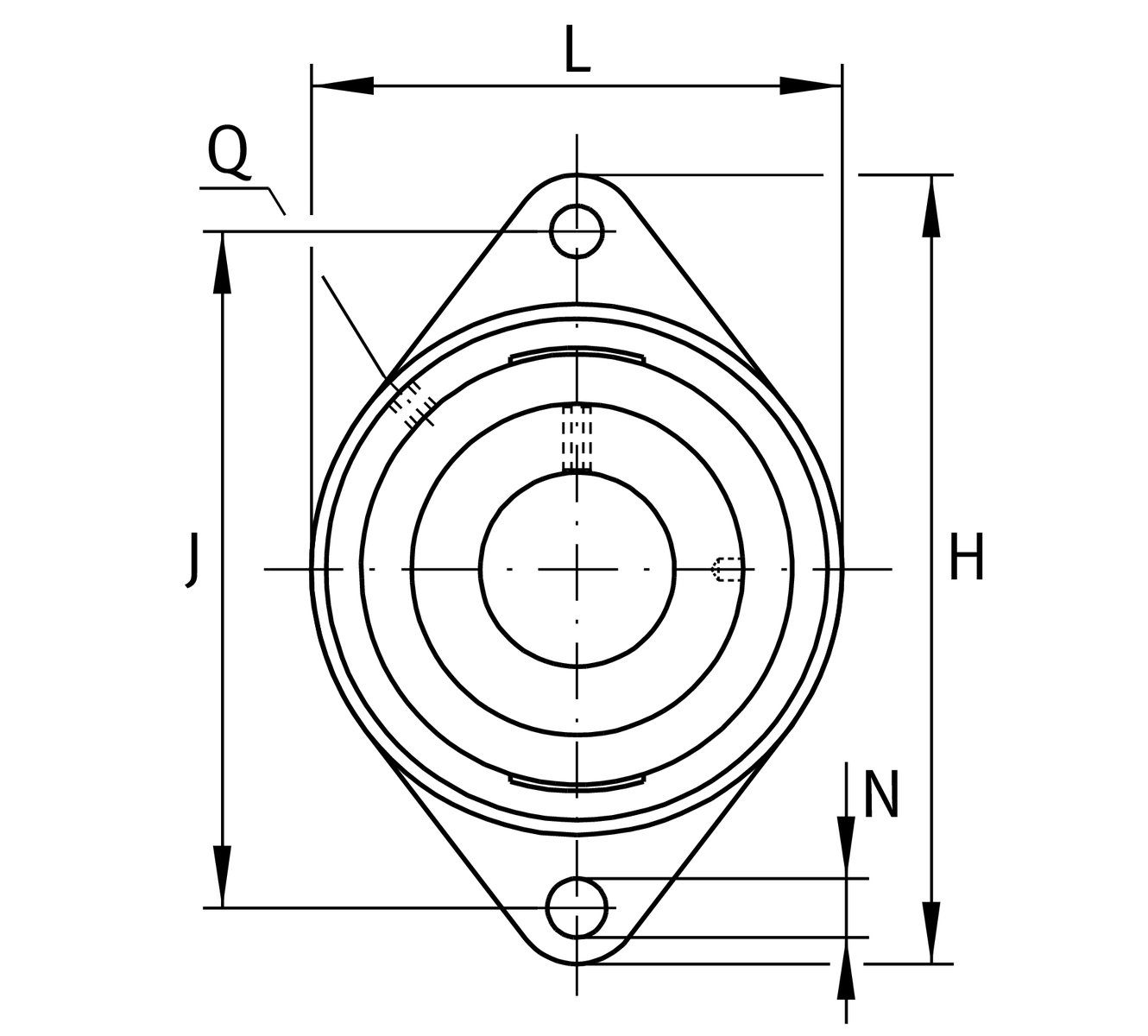

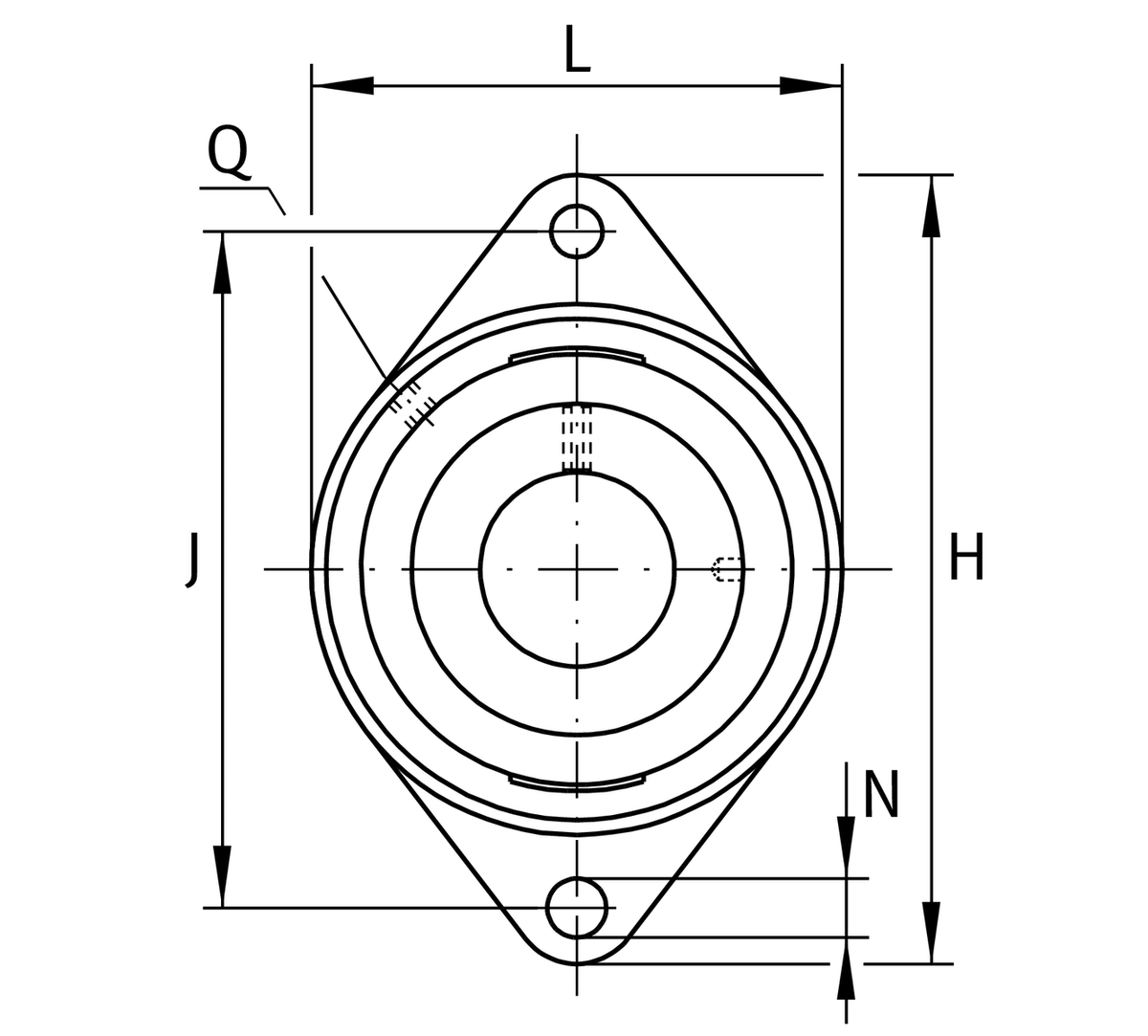

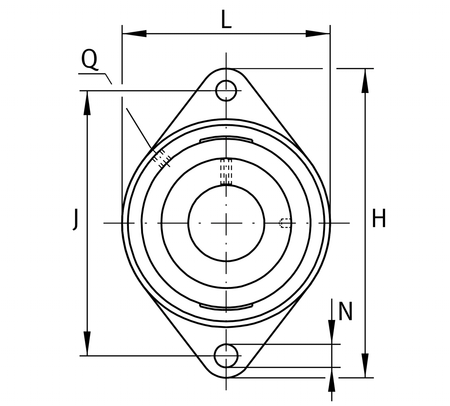

Mounting dimensions
J 116.5 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 4 mm Width of flats

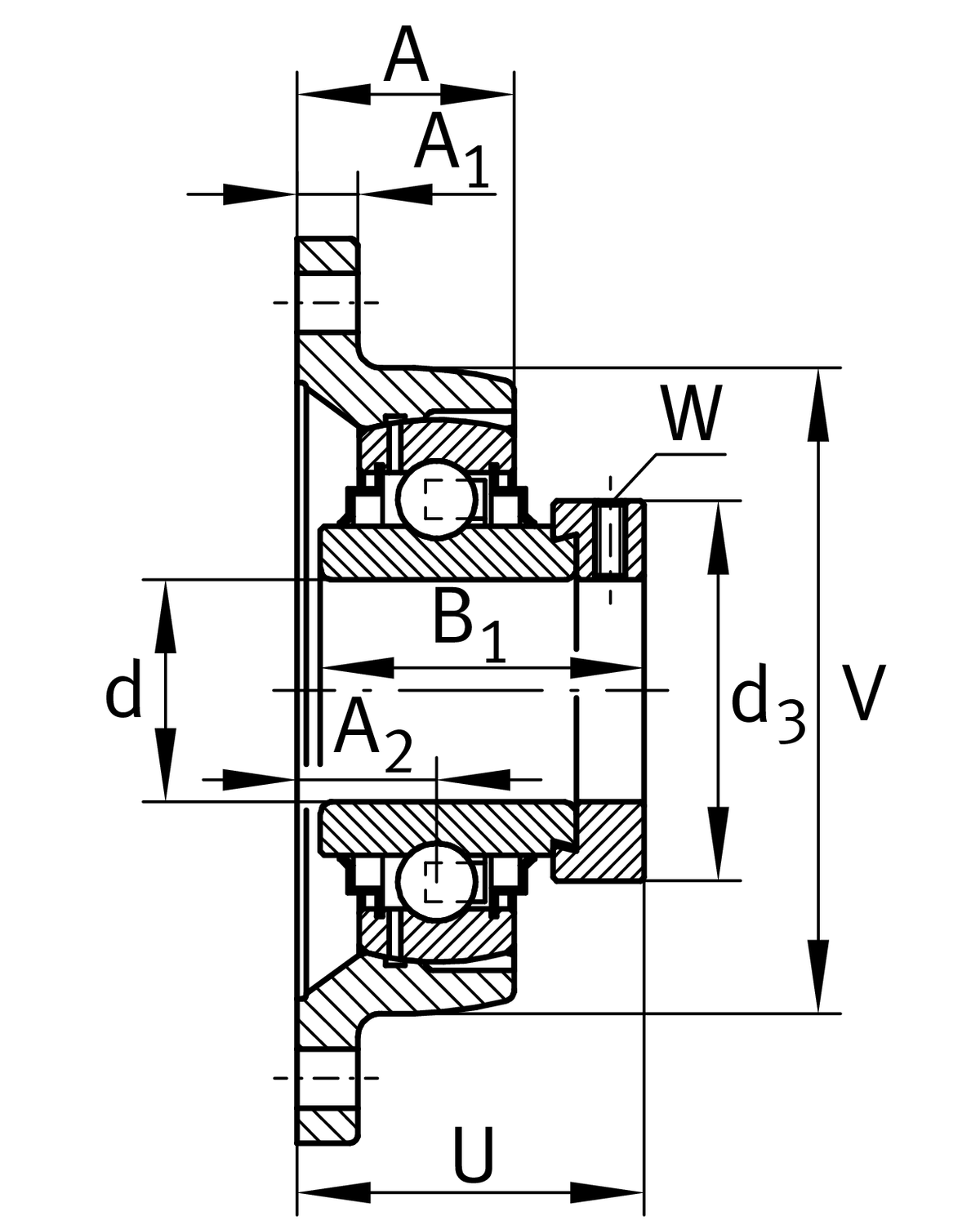

Dimensions
A 31 mm Height housing
A1 12 mm Thickness of flange
A2 20 mm Distance raceway
B1 48.5 mm Locking collar total width
V 80 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 44 mm Outside diameter locking collar
d 30 mm Bore diameter
L 80 mm Flange width
H 142 mm Height flange
U 50.2 mm Total height unit
Cr 20.700 N Basic dynamic load rating. radial
C0r 11.300 N Basic static load rating. radial
Cur 530 N Fatigue load limit. radial
˜m 0.9 kg Weight
Mounting dimensions
J 116.5 mm Distance fixing bore
N 11.5 mm Fixing bore
n 2 Number of screwing holes
W 4 mm Width of flats
Dimensions
A 31 mm Height housing
A1 12 mm Thickness of flange
A2 20 mm Distance raceway
B1 48.5 mm Locking collar total width
V 80 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 44 mm Outside diameter locking collar
