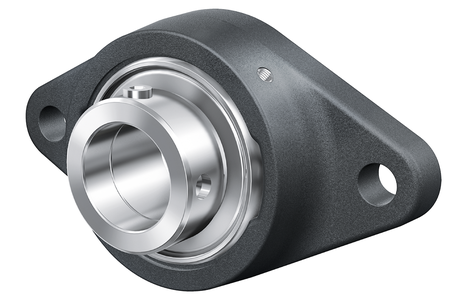

INA RCJT35-XL-N
Normale prijs
€120,17
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

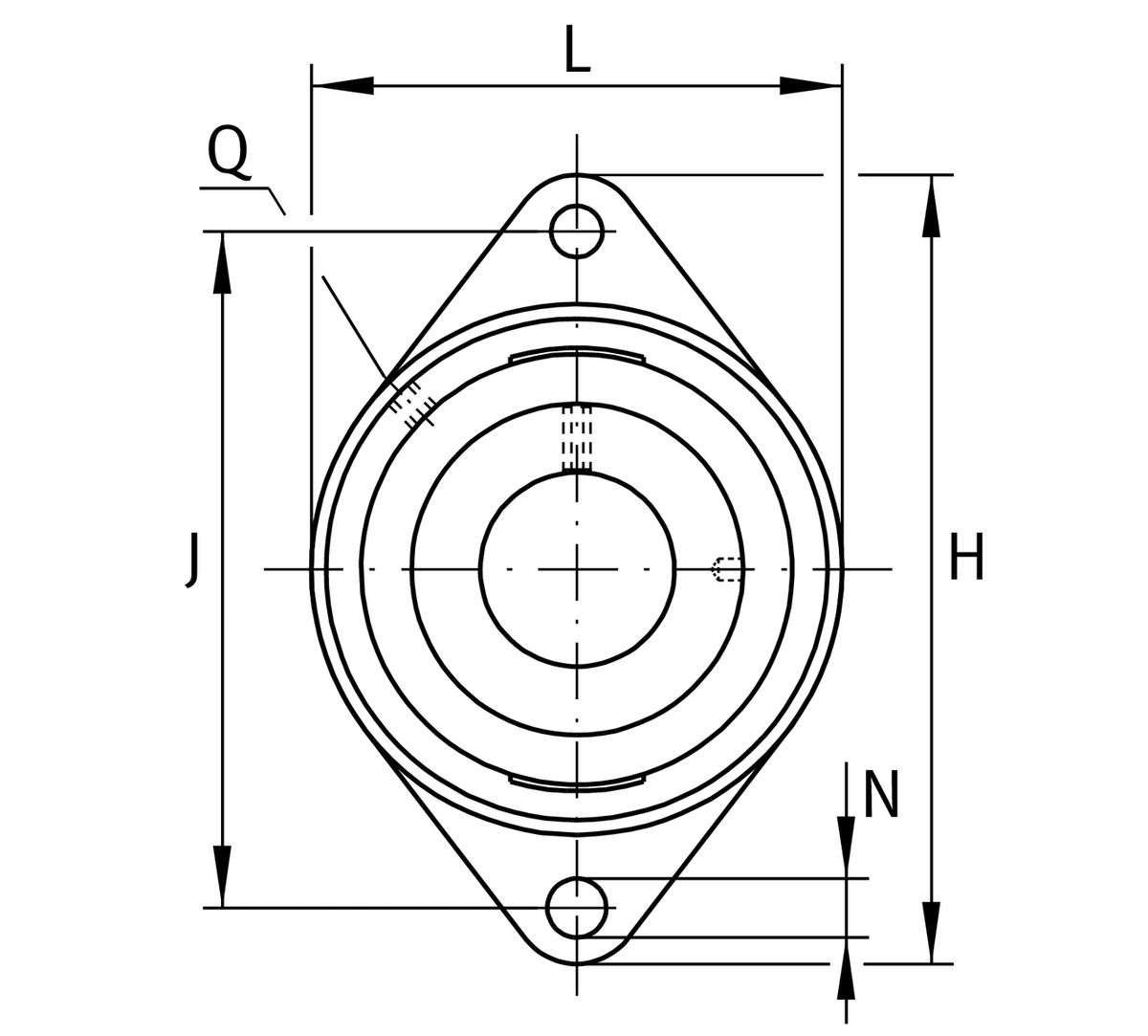

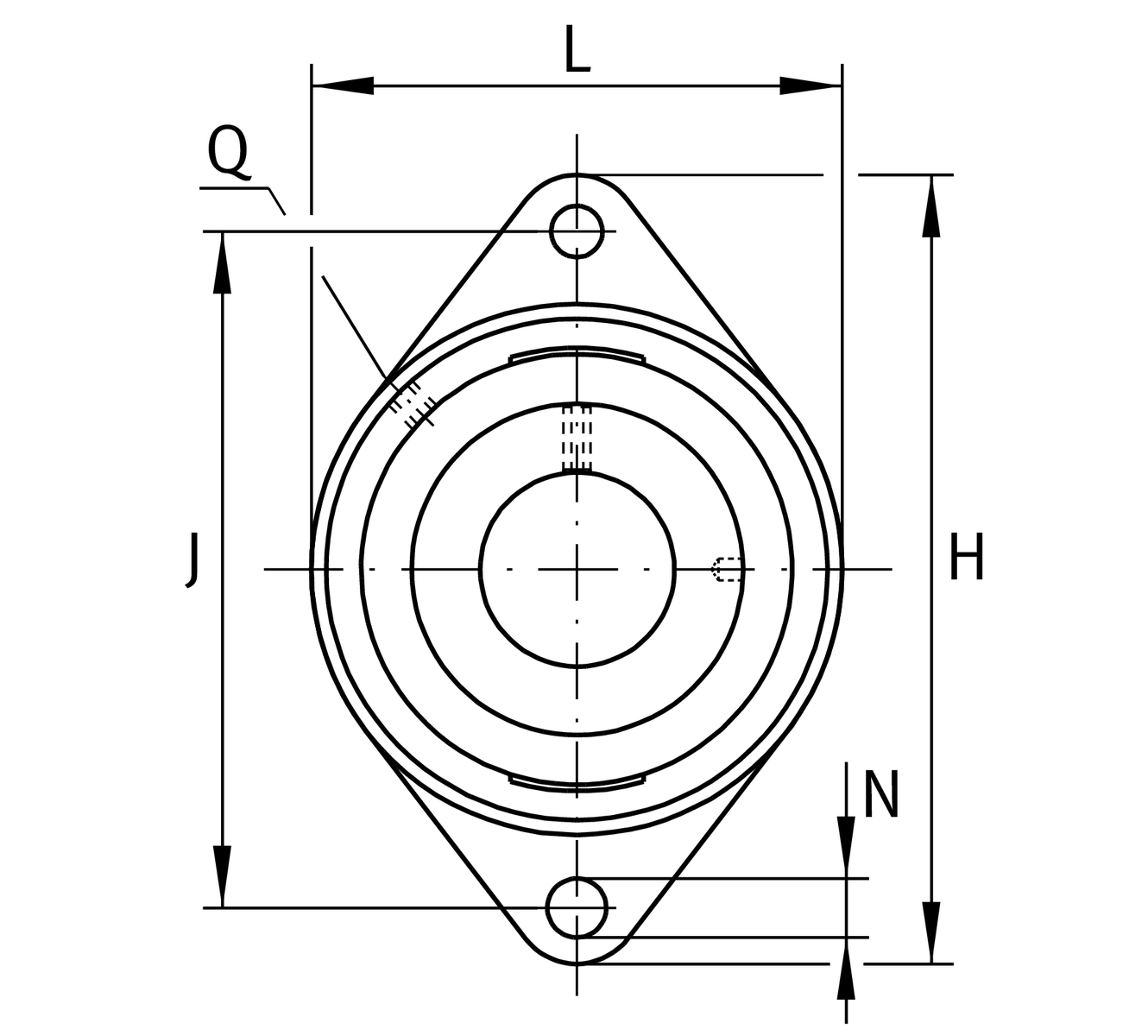

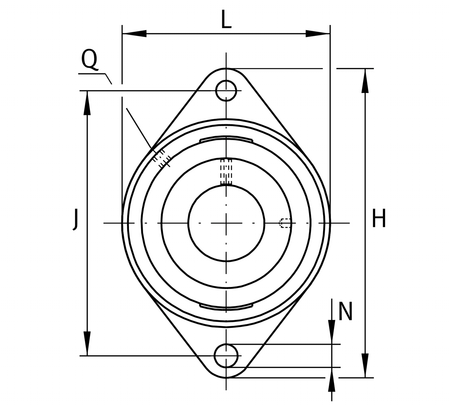

Main Dimensions & Performance Data
d 35 mm Bore diameter
L 92 mm Flange width
H 155 mm Height flange
U 53.5 mm Total height unit
Cr 25.500 N Basic dynamic load rating. radial
C0r 15.300 N Basic static load rating. radial
Cur 800 N Fatigue load limit. radial
˜m 1.21 kg Weight
Mounting dimensions
J 130 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats

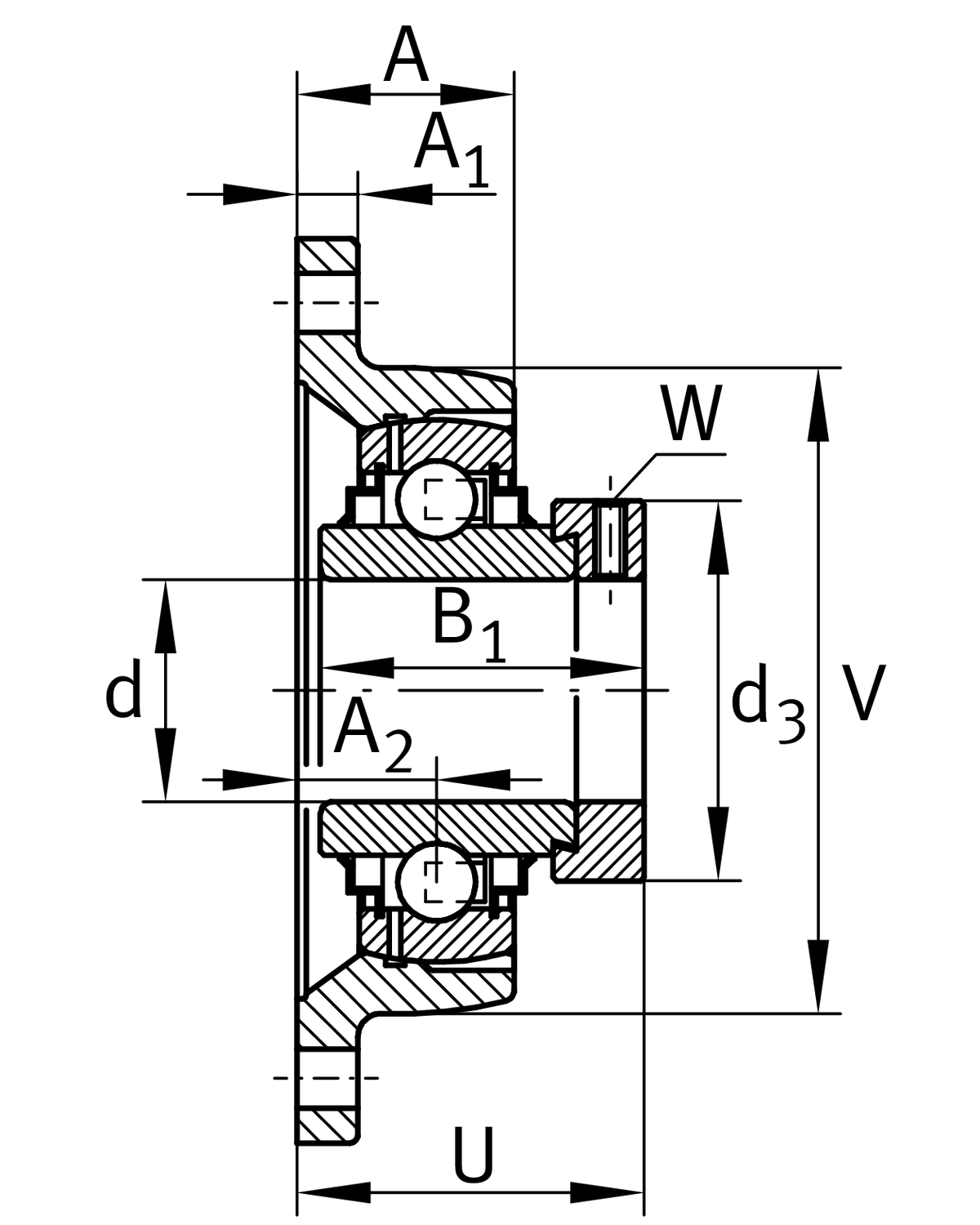

Dimensions
A 32.5 mm Height housing
A1 12.5 mm Thickness of flange
A2 21 mm Distance raceway
B1 51.3 mm Locking collar total width
V 92 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 55 mm Outside diameter locking collar
d 35 mm Bore diameter
L 92 mm Flange width
H 155 mm Height flange
U 53.5 mm Total height unit
Cr 25.500 N Basic dynamic load rating. radial
C0r 15.300 N Basic static load rating. radial
Cur 800 N Fatigue load limit. radial
˜m 1.21 kg Weight
Mounting dimensions
J 130 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats
Dimensions
A 32.5 mm Height housing
A1 12.5 mm Thickness of flange
A2 21 mm Distance raceway
B1 51.3 mm Locking collar total width
V 92 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 55 mm Outside diameter locking collar
