INA RCJT40-XL-N
Normale prijs
€137,98
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

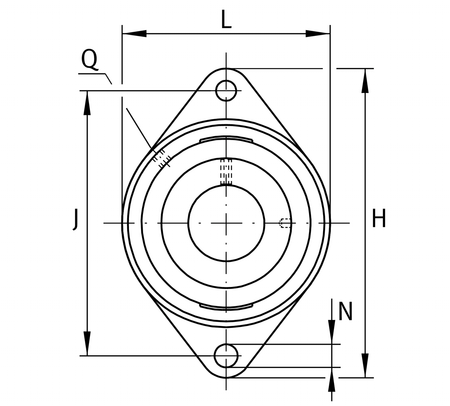

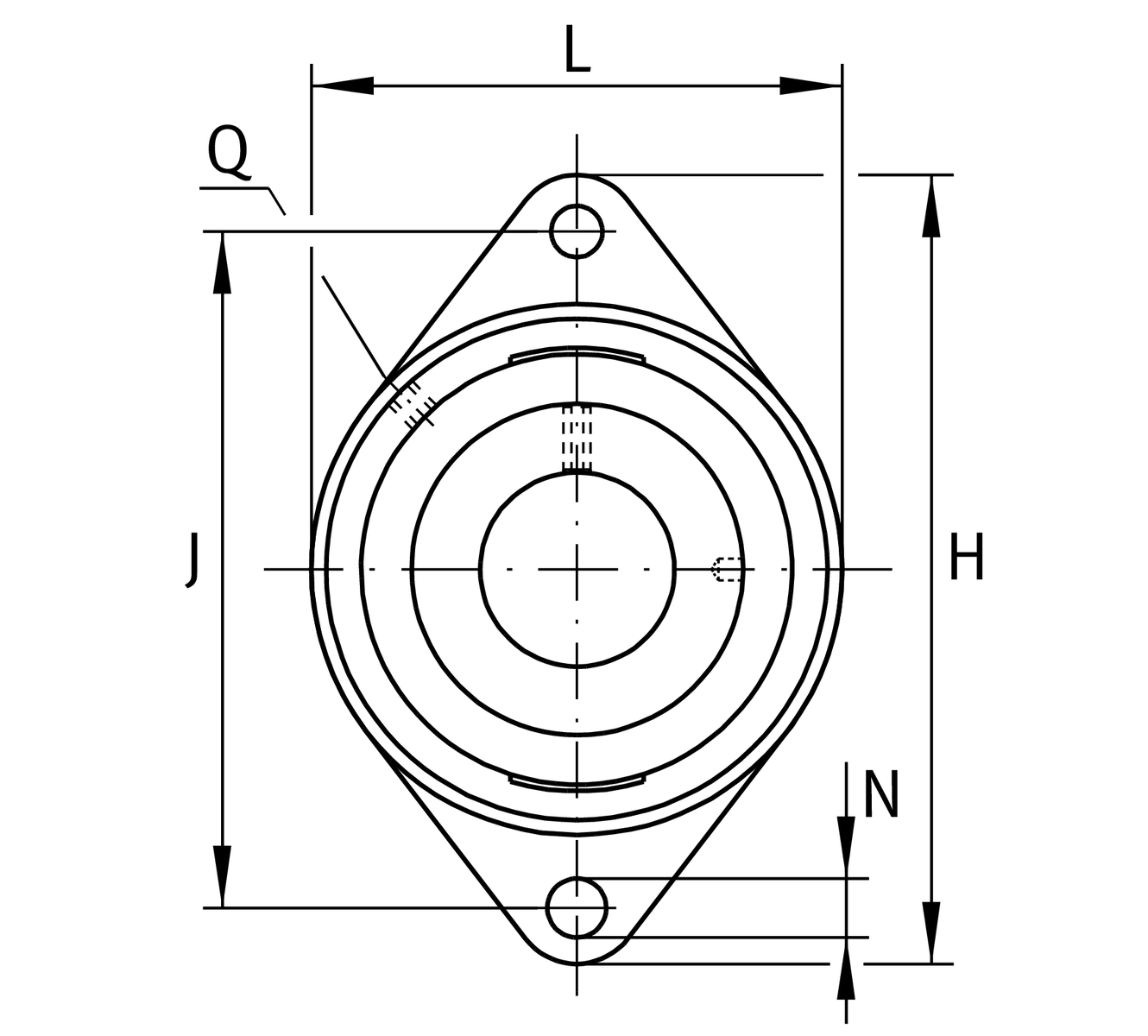

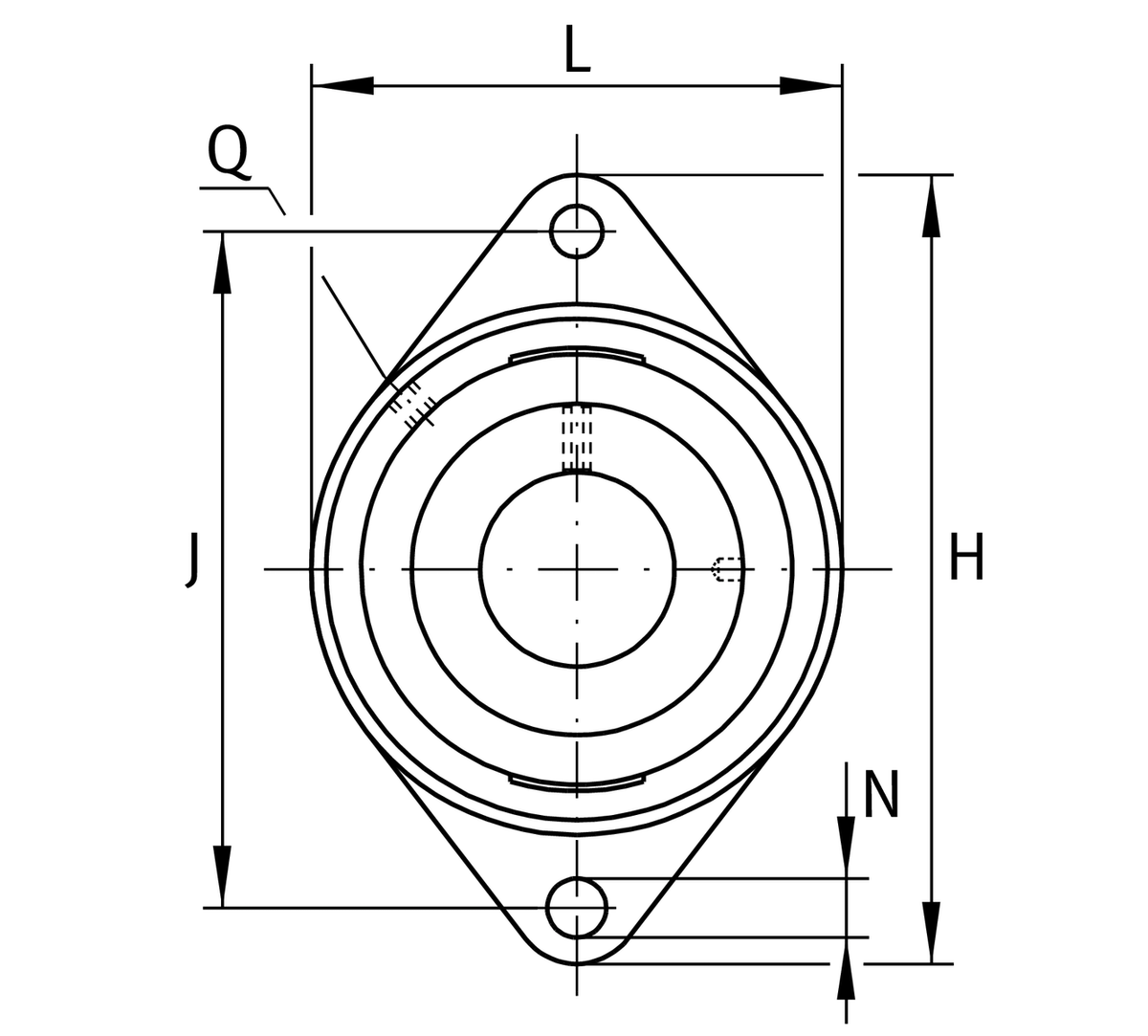

Main Dimensions & Performance Data
d 40 mm Bore diameter
L 105 mm Flange width
H 172 mm Height flange
U 59.1 mm Total height unit
Cr 34.500 N Basic dynamic load rating. radial
C0r 19.800 N Basic static load rating. radial
Cur 840 N Fatigue load limit. radial
˜m 1.68 kg Weight
Mounting dimensions
J 143.5 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats

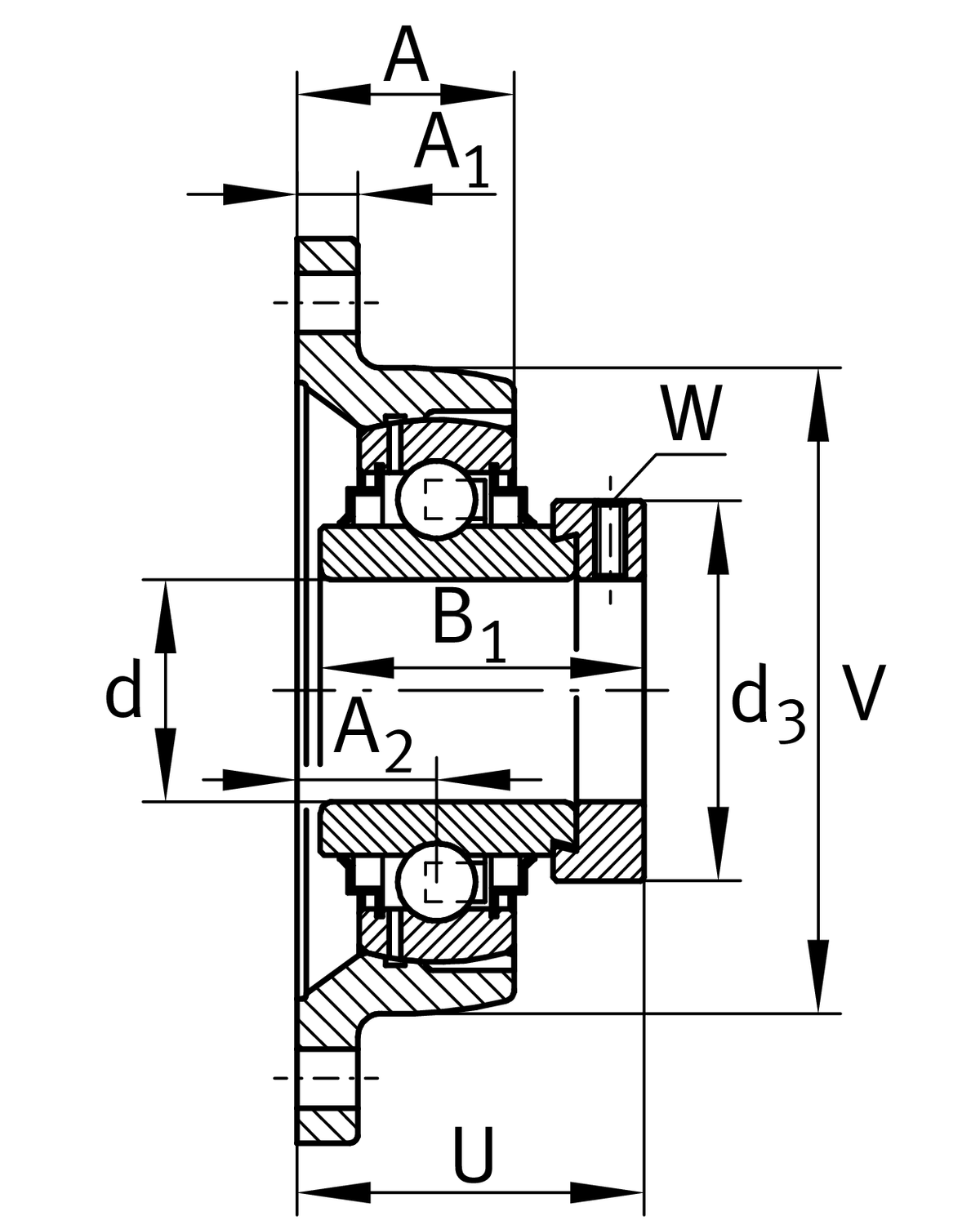

Dimensions
A 36.5 mm Height housing
A1 13 mm Thickness of flange
A2 24 mm Distance raceway
B1 56.5 mm Locking collar total width
V 105 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 58 mm Outside diameter locking collar
d 40 mm Bore diameter
L 105 mm Flange width
H 172 mm Height flange
U 59.1 mm Total height unit
Cr 34.500 N Basic dynamic load rating. radial
C0r 19.800 N Basic static load rating. radial
Cur 840 N Fatigue load limit. radial
˜m 1.68 kg Weight
Mounting dimensions
J 143.5 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats
Dimensions
A 36.5 mm Height housing
A1 13 mm Thickness of flange
A2 24 mm Distance raceway
B1 56.5 mm Locking collar total width
V 105 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 58 mm Outside diameter locking collar
