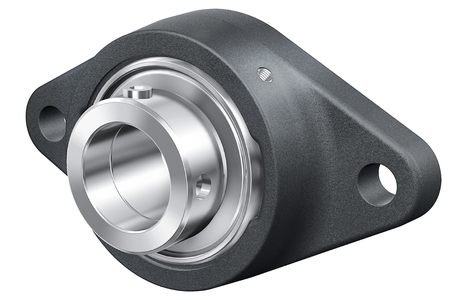

INA RCJT45-XL
Normale prijs
€165,95
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 45 mm Bore diameter
L 111 mm Flange width
H 180 mm Height flange
U 59.1 mm Total height unit
Cr 34.500 N Basic dynamic load rating. radial
C0r 20.400 N Basic static load rating. radial
Cur 970 N Fatigue load limit. radial
˜m 1.9 kg Weight

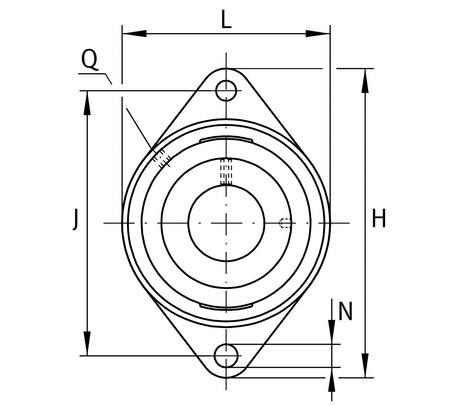

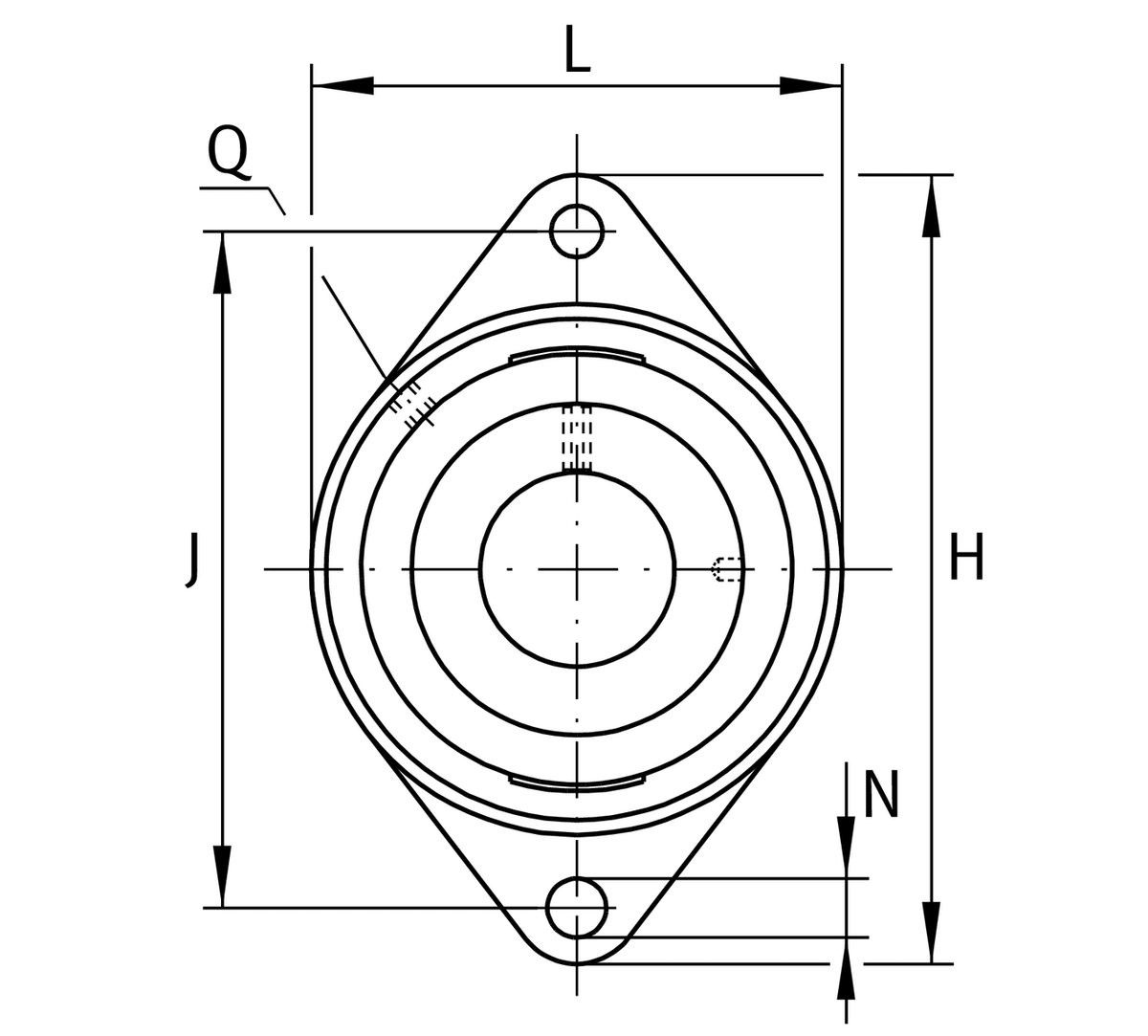

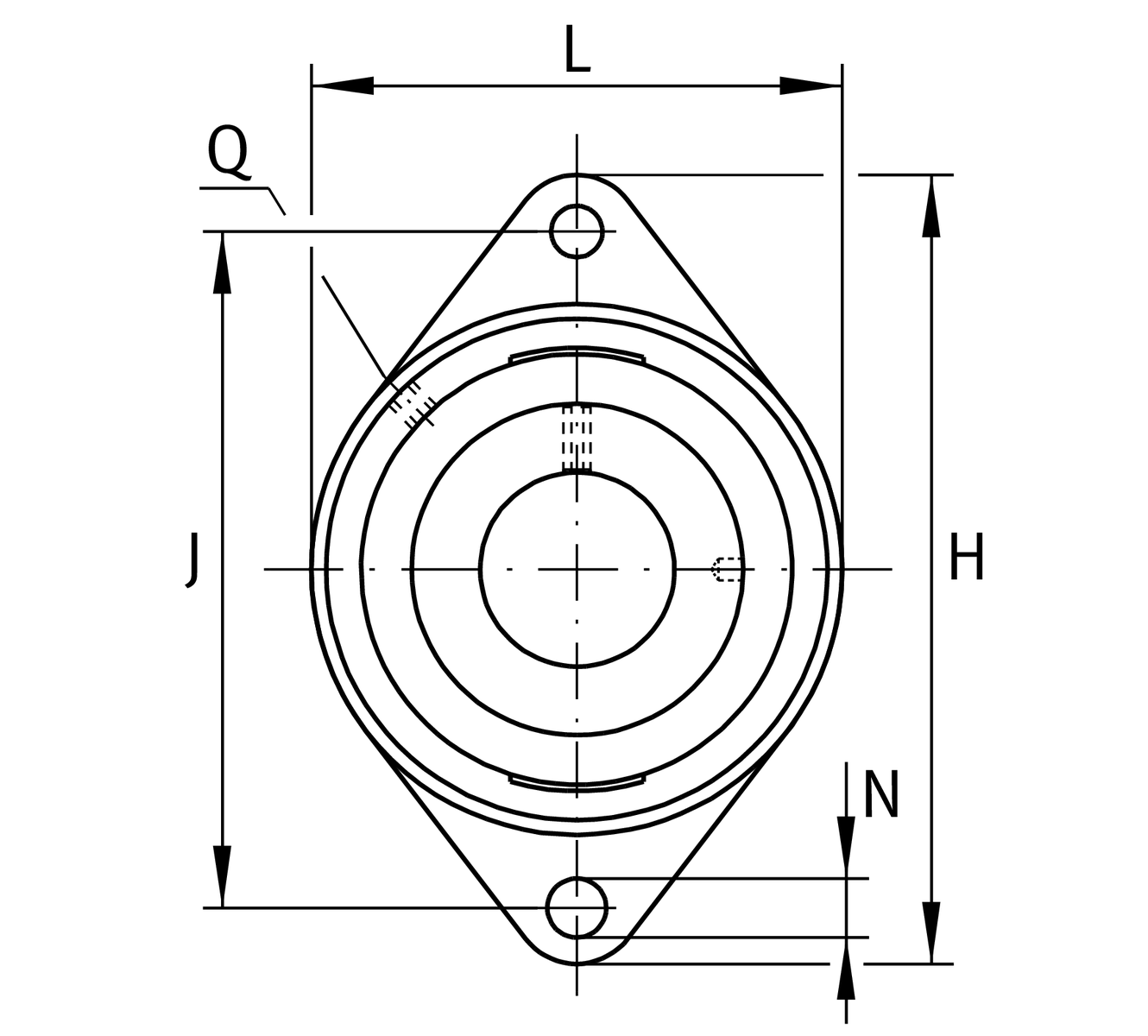

Mounting dimensions
J 148.5 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats

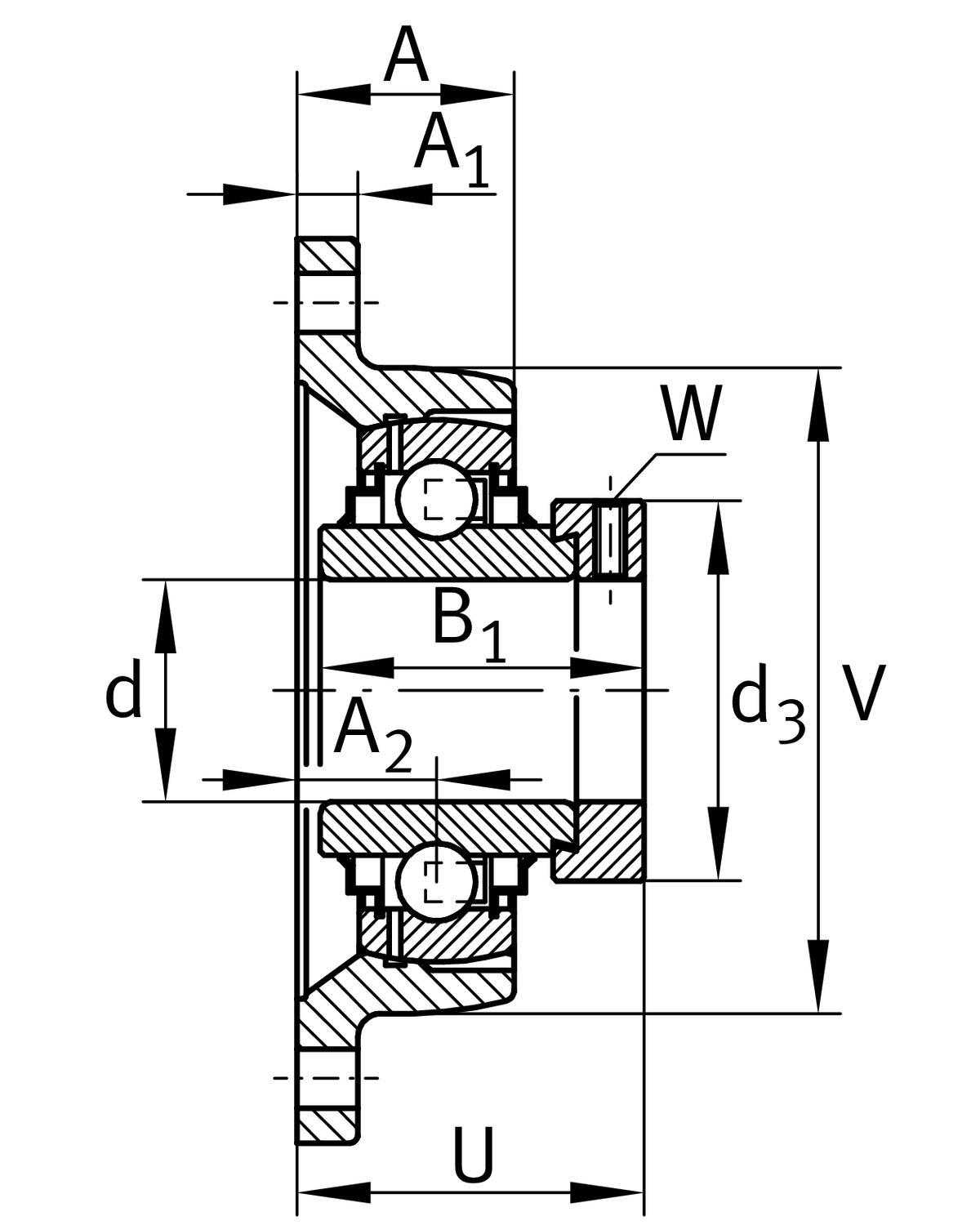

Dimensions
A 35 mm Height housing
A1 13 mm Thickness of flange
A2 24 mm Distance raceway
B1 56.5 mm Locking collar total width
V 111 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 63 mm Outside diameter locking collar
d 45 mm Bore diameter
L 111 mm Flange width
H 180 mm Height flange
U 59.1 mm Total height unit
Cr 34.500 N Basic dynamic load rating. radial
C0r 20.400 N Basic static load rating. radial
Cur 970 N Fatigue load limit. radial
˜m 1.9 kg Weight
Mounting dimensions
J 148.5 mm Distance fixing bore
N 14 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats
Dimensions
A 35 mm Height housing
A1 13 mm Thickness of flange
A2 24 mm Distance raceway
B1 56.5 mm Locking collar total width
V 111 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 63 mm Outside diameter locking collar
