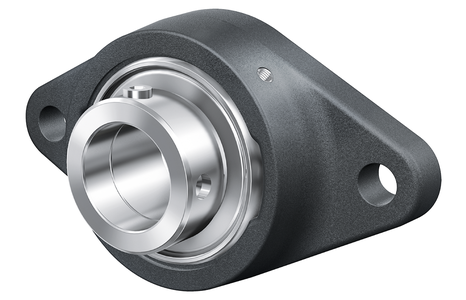

INA RCJT50-XL-N
Normale prijs
€183,55
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 50 mm Bore diameter
L 116 mm Flange width
H 190 mm Height flange
U 66.2 mm Total height unit
Cr 37.500 N Basic dynamic load rating. radial
C0r 23.200 N Basic static load rating. radial
Cur 990 N Fatigue load limit. radial
˜m 2.18 kg Weight

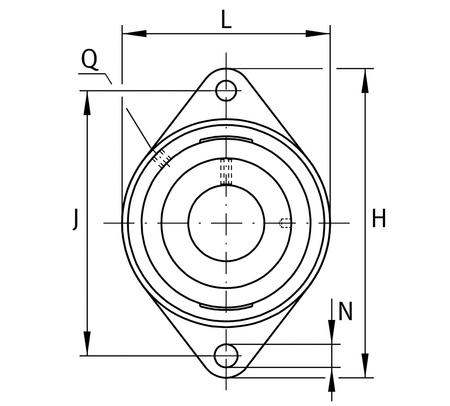

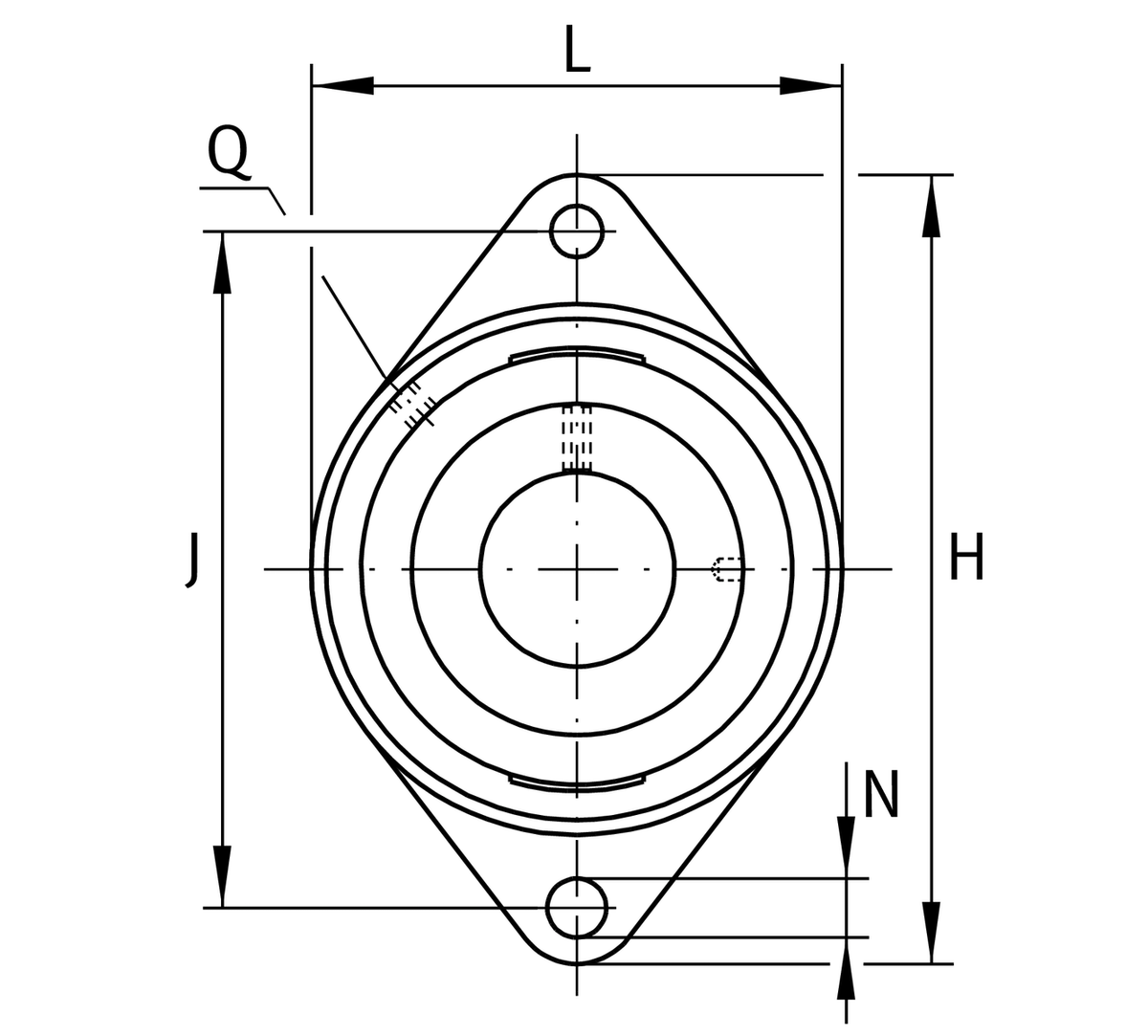

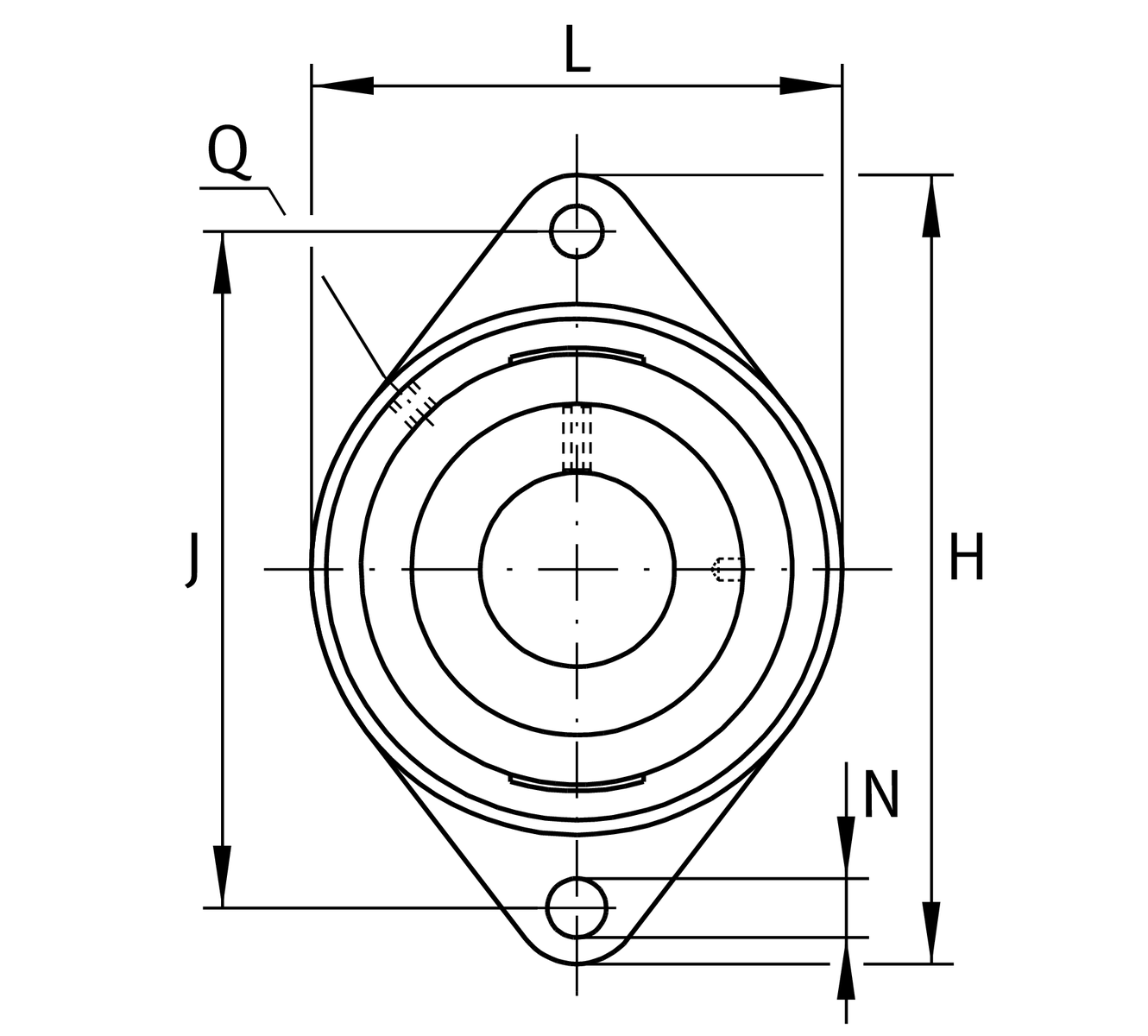

Mounting dimensions
J 157 mm Distance fixing bore
N 18 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats

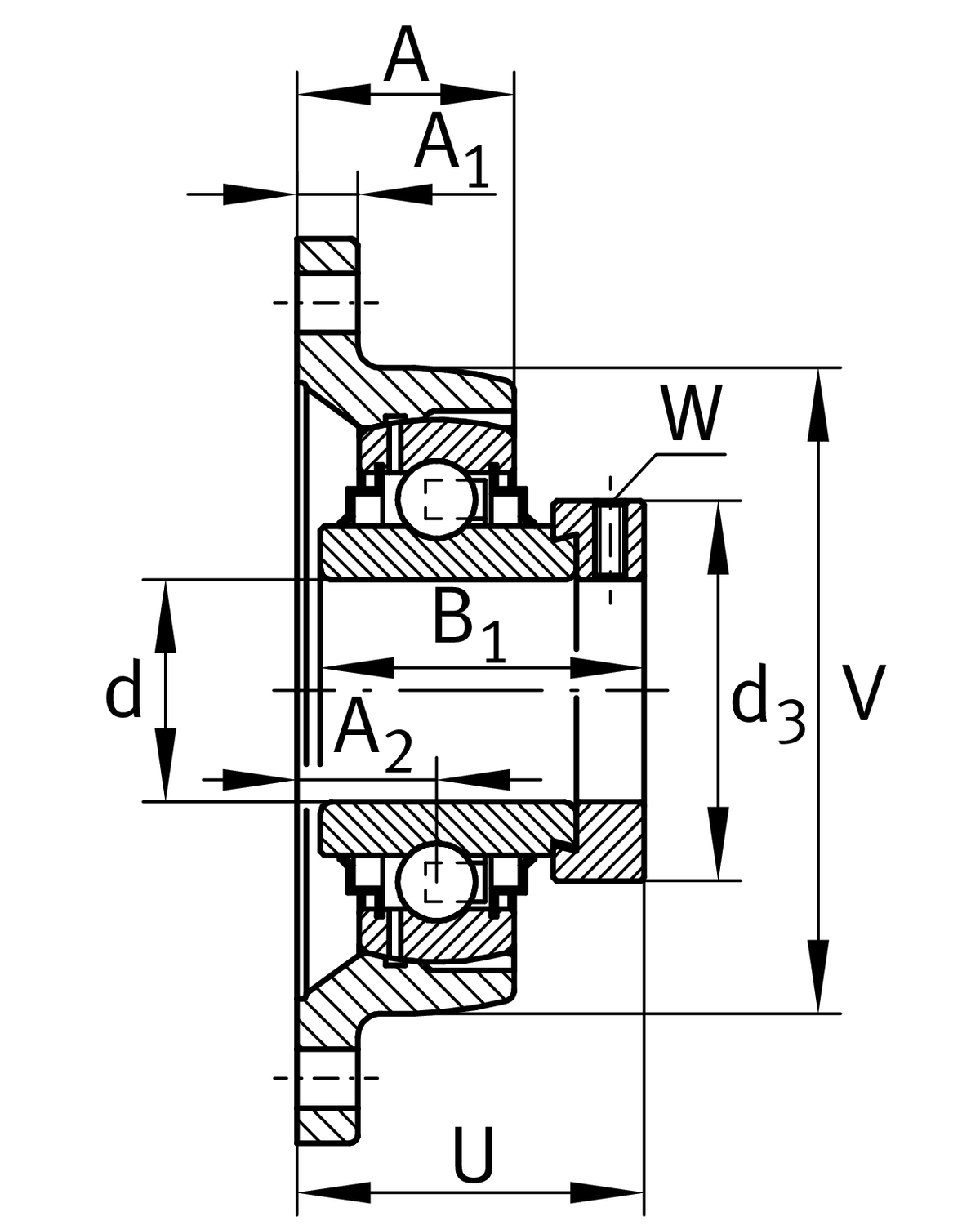

Dimensions
A 39 mm Height housing
A1 13 mm Thickness of flange
A2 28 mm Distance raceway
B1 62.8 mm Locking collar total width
V 116 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 69 mm Outside diameter locking collar
d 50 mm Bore diameter
L 116 mm Flange width
H 190 mm Height flange
U 66.2 mm Total height unit
Cr 37.500 N Basic dynamic load rating. radial
C0r 23.200 N Basic static load rating. radial
Cur 990 N Fatigue load limit. radial
˜m 2.18 kg Weight
Mounting dimensions
J 157 mm Distance fixing bore
N 18 mm Fixing bore
n 2 Number of screwing holes
W 5 mm Width of flats
Dimensions
A 39 mm Height housing
A1 13 mm Thickness of flange
A2 28 mm Distance raceway
B1 62.8 mm Locking collar total width
V 116 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 69 mm Outside diameter locking collar
