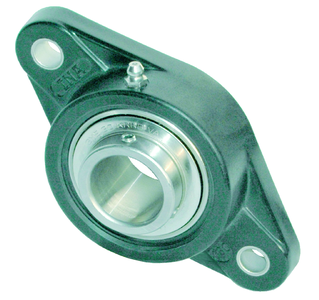

INA RCJTY20-TV-VA-HLA
Normale prijs
€201,16
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 20 mm Bore diameter
L 64.8 mm Flange width
H 114 mm Height flange
U 33.7 mm Total height unit
Cr 12.300 N Basic dynamic load rating. radial
C0r 6.300 N Basic static load rating. radial
Cur 310 N Fatigue load limit. radial
C0r G 8.500 N Load carrying capacity (housing)
˜m 0.26 kg Weight

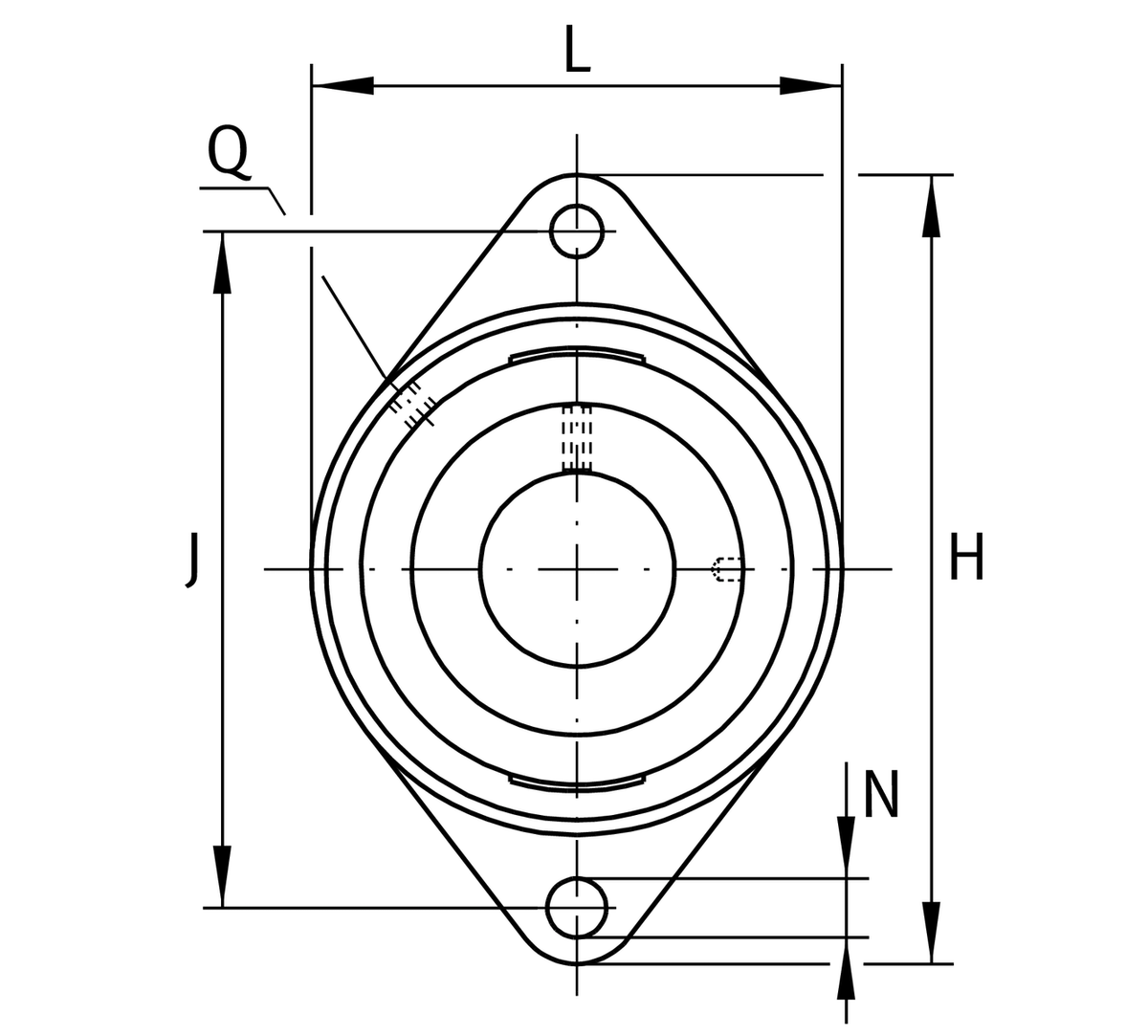

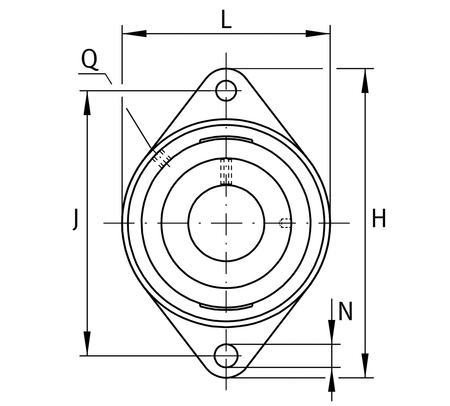

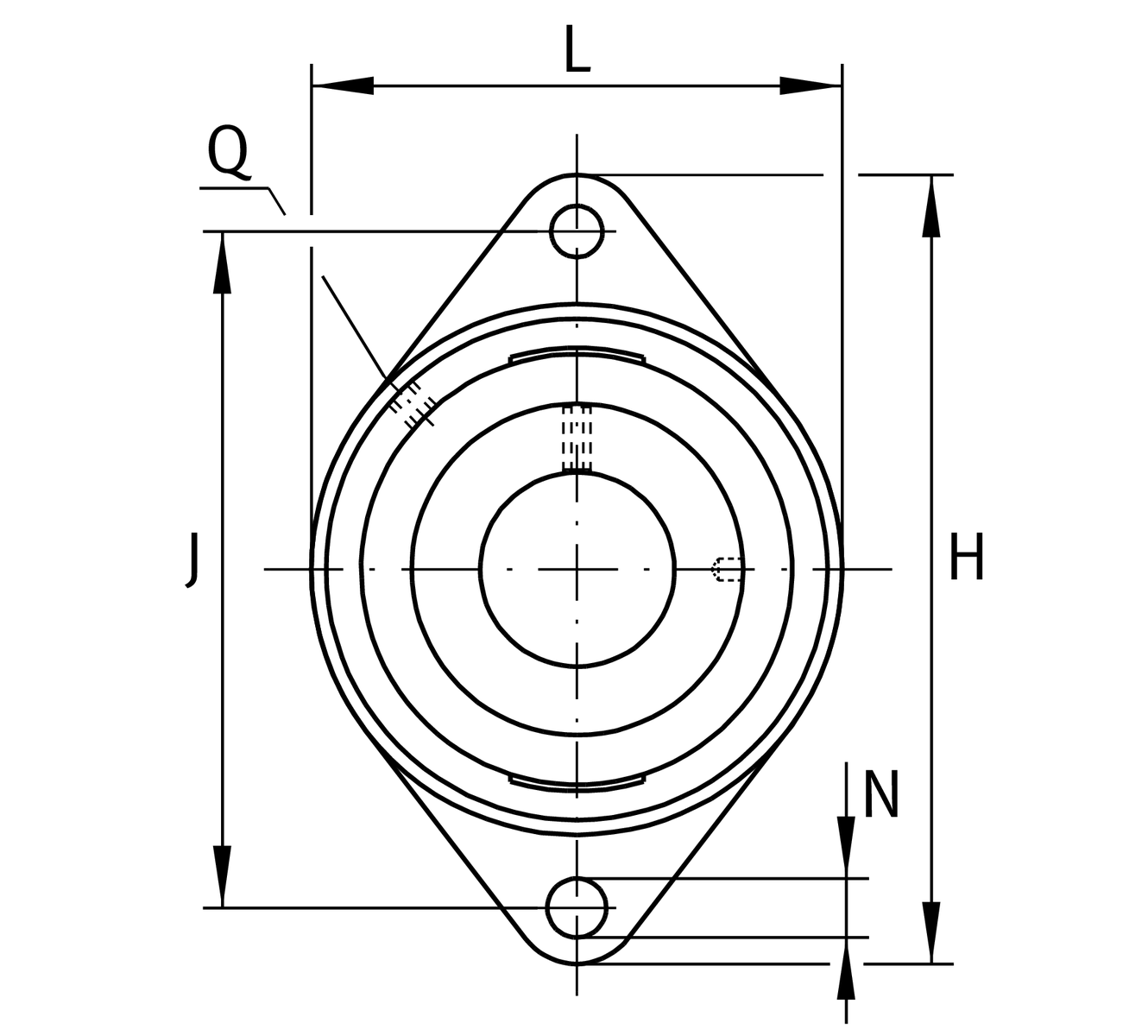

Mounting dimensions
J 90 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width across flats
n 2 Number of screwing holes

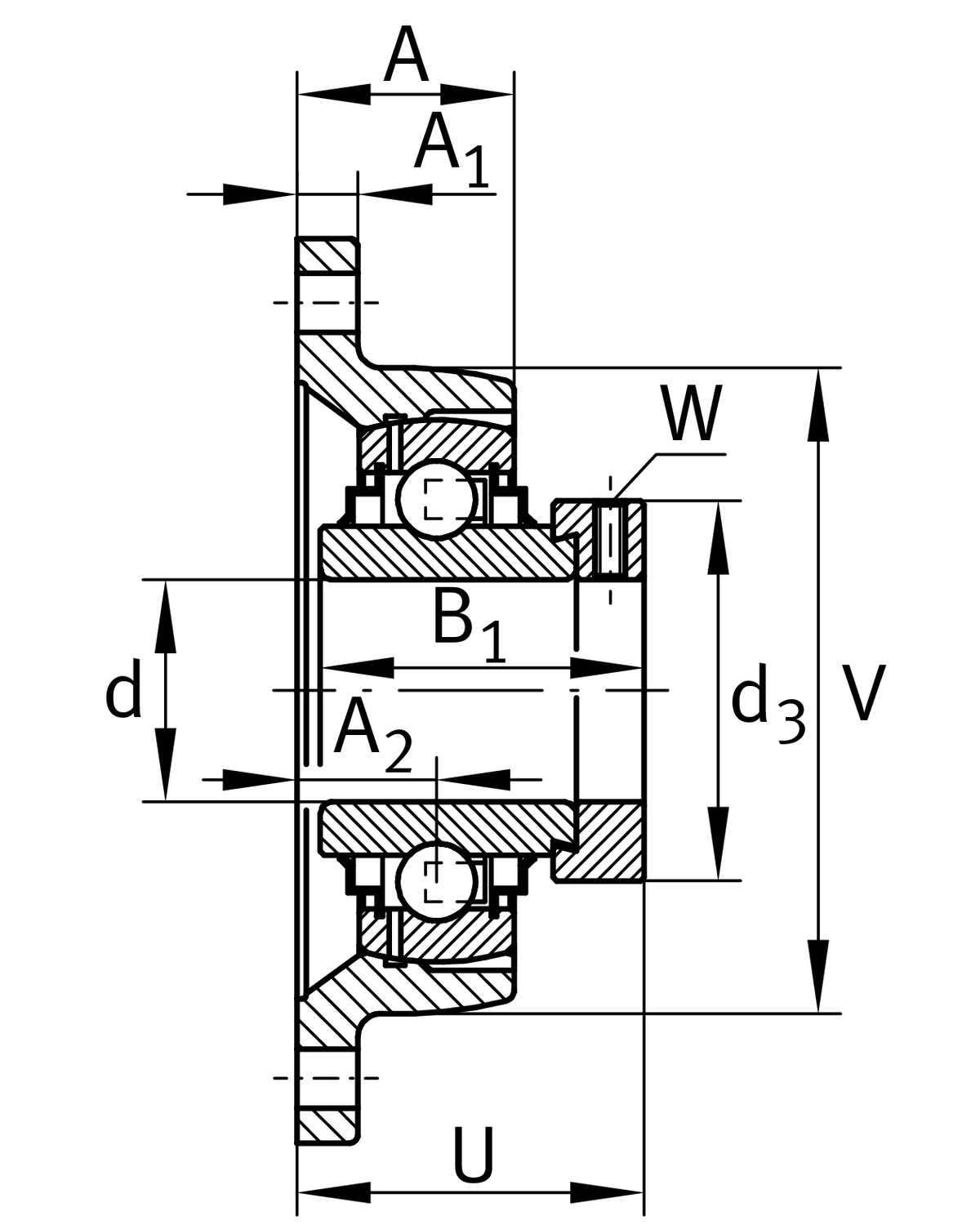

Dimensions
A 26.5 mm Height housing
A1 11.4 mm Thickness of flange
A2 15.4 mm Distance raceway
B 31 mm Width
d 20 mm Bore diameter
L 64.8 mm Flange width
H 114 mm Height flange
U 33.7 mm Total height unit
Cr 12.300 N Basic dynamic load rating. radial
C0r 6.300 N Basic static load rating. radial
Cur 310 N Fatigue load limit. radial
C0r G 8.500 N Load carrying capacity (housing)
˜m 0.26 kg Weight
Mounting dimensions
J 90 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 26.5 mm Height housing
A1 11.4 mm Thickness of flange
A2 15.4 mm Distance raceway
B 31 mm Width
