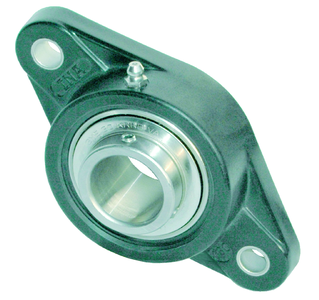

INA RCJTY30-TV-VA-HLA
Normale prijs
€306,16
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 30 mm Bore diameter
L 80 mm Flange width
H 148 mm Height flange
U 40.2 mm Total height unit
Cr 18.700 N Basic dynamic load rating. radial
C0r 10.700 N Basic static load rating. radial
Cur 530 N Fatigue load limit. radial
C0r G 14.200 N Load carrying capacity (housing)
˜m 0.424 kg Weight

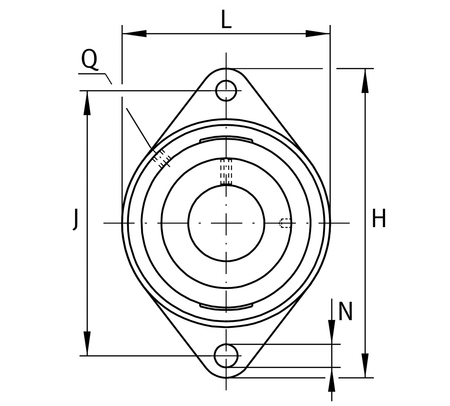

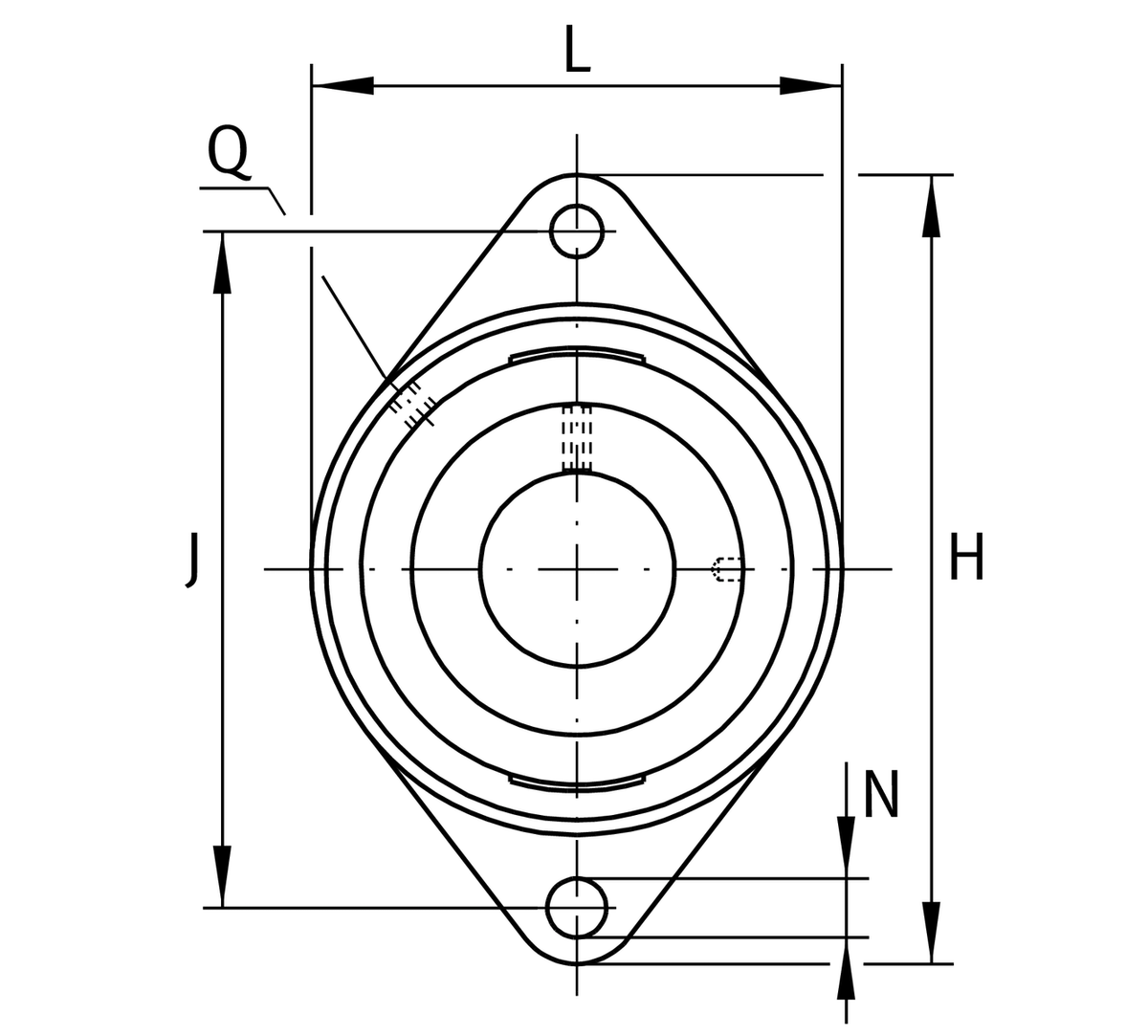

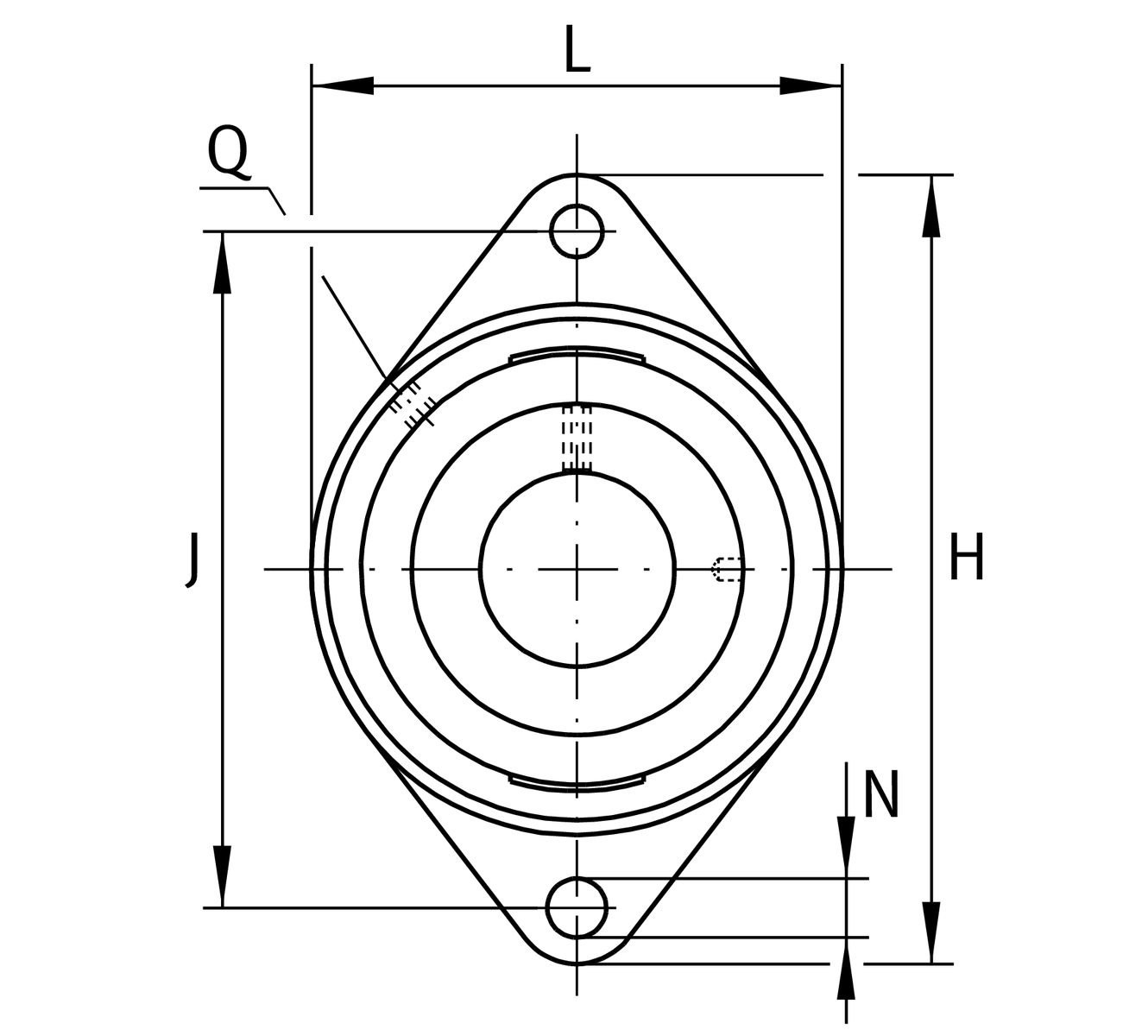

Mounting dimensions
J 117 mm Distance fixing bore
N 11 mm Fixing bore
W 3 mm Width across flats
n 2 Number of screwing holes

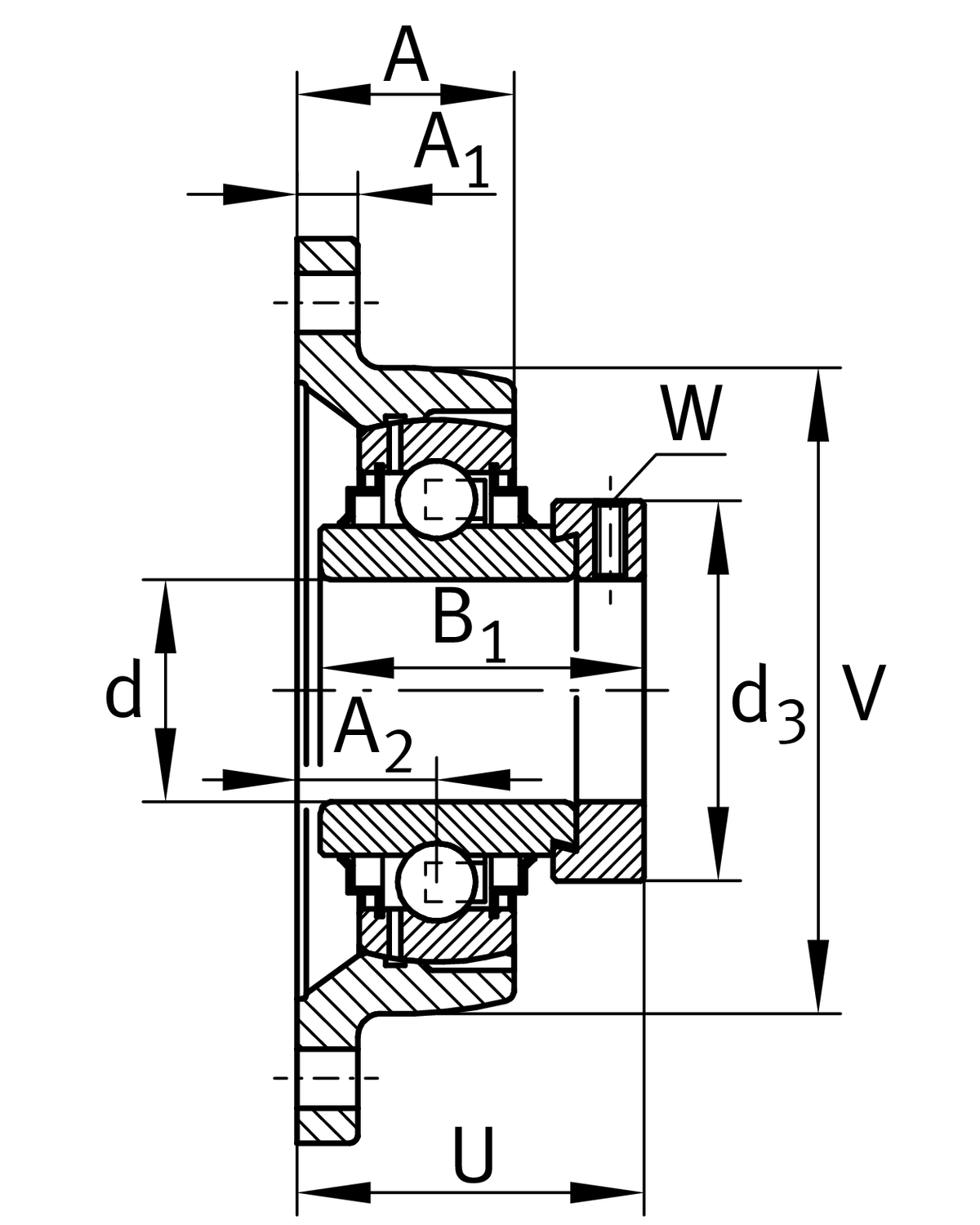

Dimensions
A 30.5 mm Height housing
A1 13.3 mm Thickness of flange
A2 18 mm Distance raceway
B 38.1 mm Width
d 30 mm Bore diameter
L 80 mm Flange width
H 148 mm Height flange
U 40.2 mm Total height unit
Cr 18.700 N Basic dynamic load rating. radial
C0r 10.700 N Basic static load rating. radial
Cur 530 N Fatigue load limit. radial
C0r G 14.200 N Load carrying capacity (housing)
˜m 0.424 kg Weight
Mounting dimensions
J 117 mm Distance fixing bore
N 11 mm Fixing bore
W 3 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 30.5 mm Height housing
A1 13.3 mm Thickness of flange
A2 18 mm Distance raceway
B 38.1 mm Width
