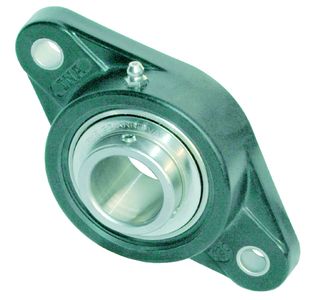

INA RCJTY40-TV-VA-HLA
Normale prijs
€417,19
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

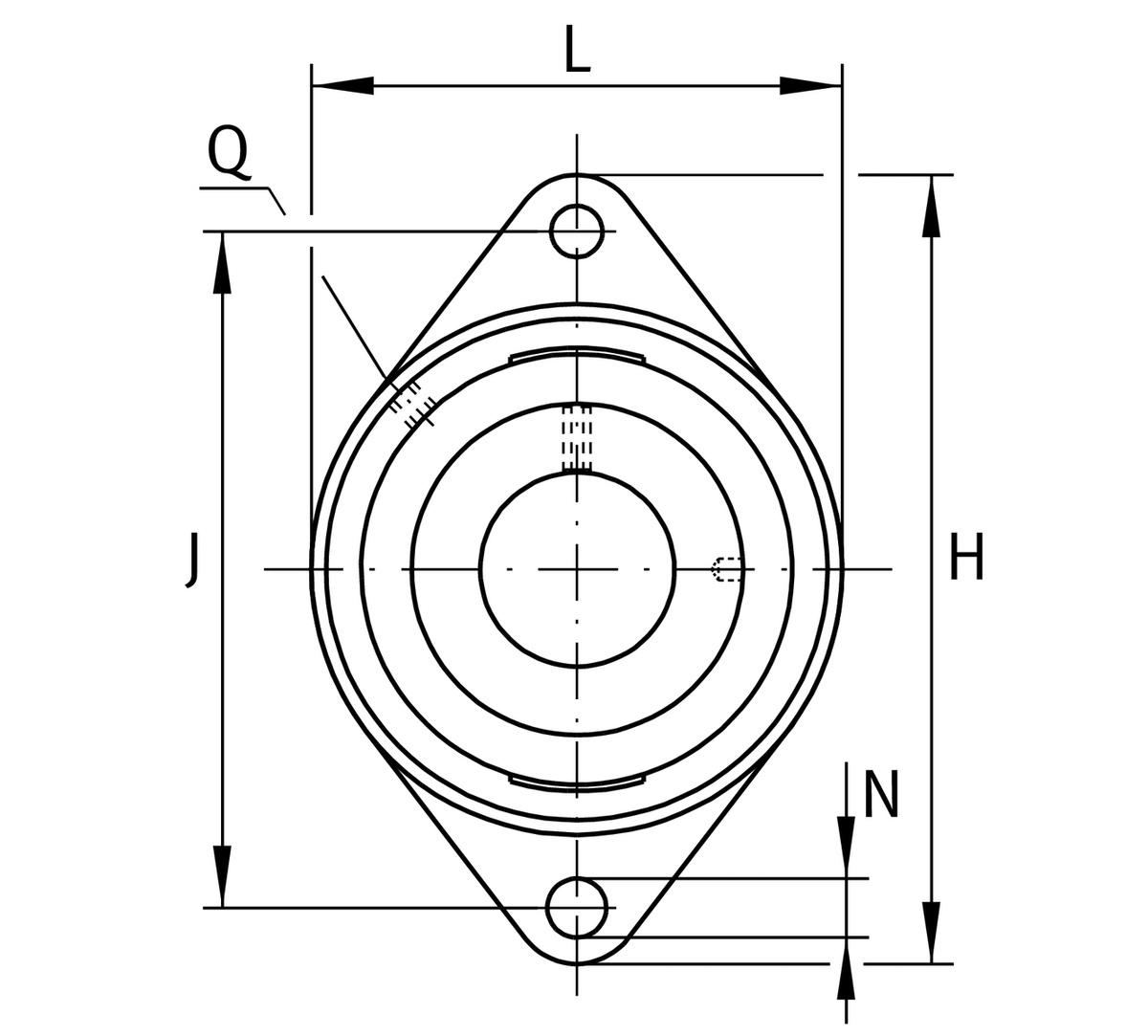

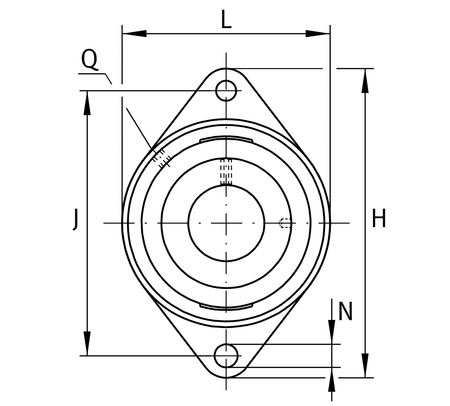

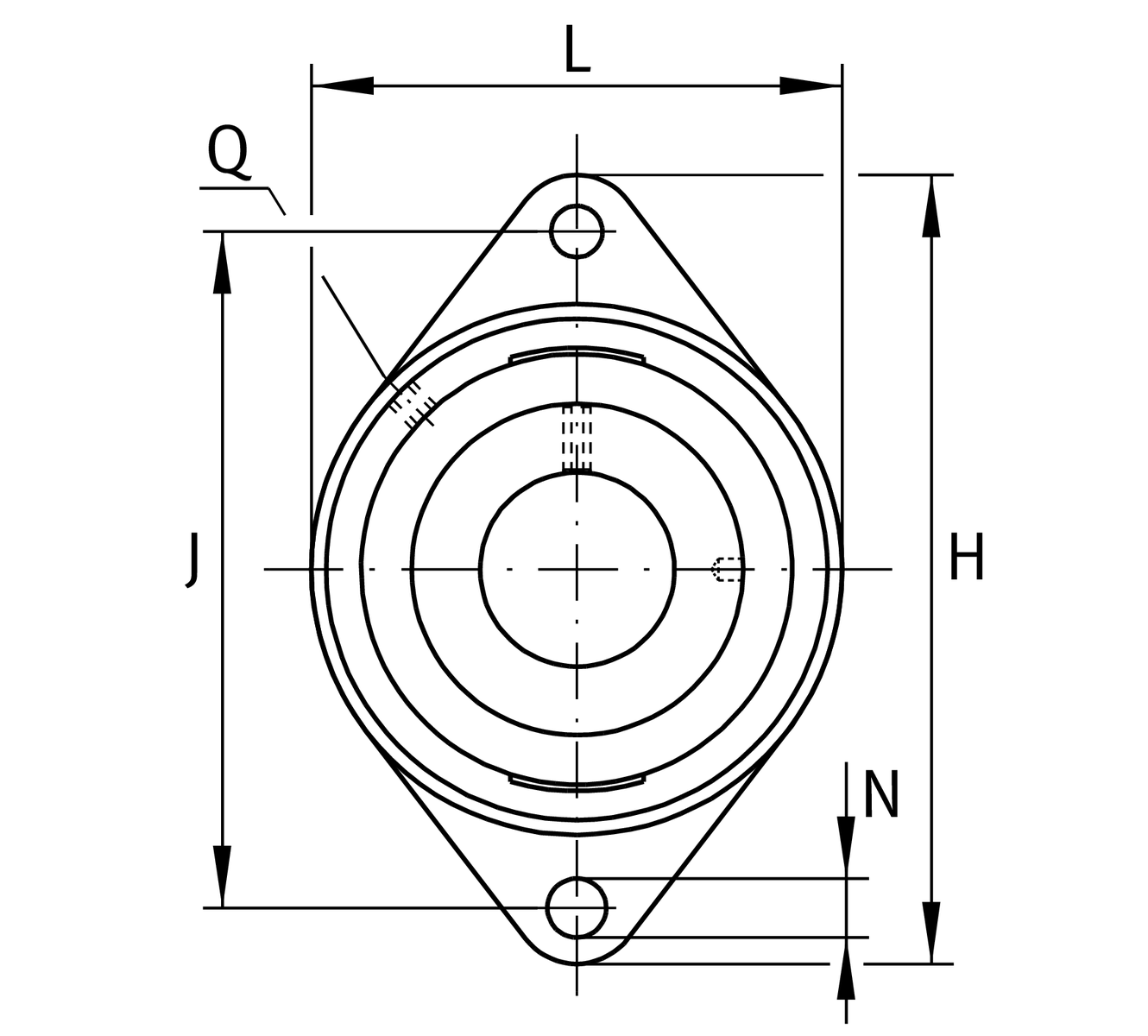

Main Dimensions & Performance Data
d 40 mm Bore diameter
L 100 mm Flange width
H 175 mm Height flange
U 51.7 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 18.900 N Basic static load rating. radial
Cur 930 N Fatigue load limit. radial
C0r G 14.900 N Load carrying capacity (housing)
˜m 0.874 kg Weight
Mounting dimensions
J 144 mm Distance fixing bore
N 14 mm Fixing bore
W 4 mm Width across flats
n 2 Number of screwing holes

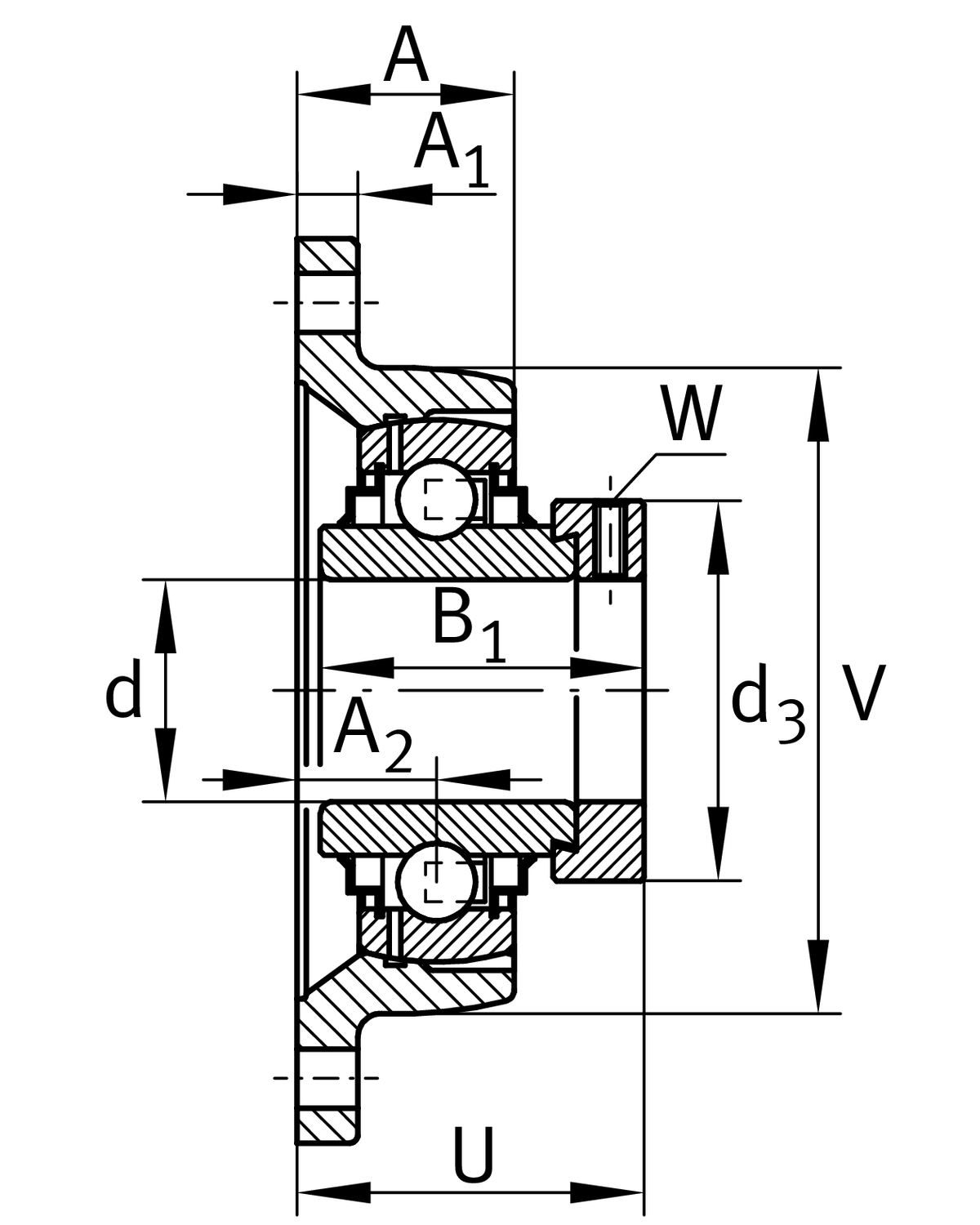

Dimensions
A 37.5 mm Height housing
A1 20 mm Thickness of flange
A2 21.5 mm Distance raceway
d 40 mm Bore diameter
L 100 mm Flange width
H 175 mm Height flange
U 51.7 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 18.900 N Basic static load rating. radial
Cur 930 N Fatigue load limit. radial
C0r G 14.900 N Load carrying capacity (housing)
˜m 0.874 kg Weight
Mounting dimensions
J 144 mm Distance fixing bore
N 14 mm Fixing bore
W 4 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 37.5 mm Height housing
A1 20 mm Thickness of flange
A2 21.5 mm Distance raceway
