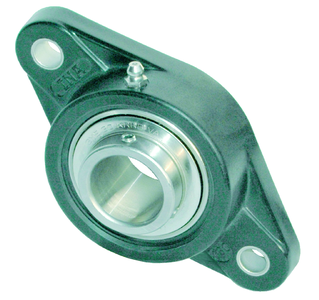

INA RCJTY45-TV-VA-HLA
Normale prijs
€487,11
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?

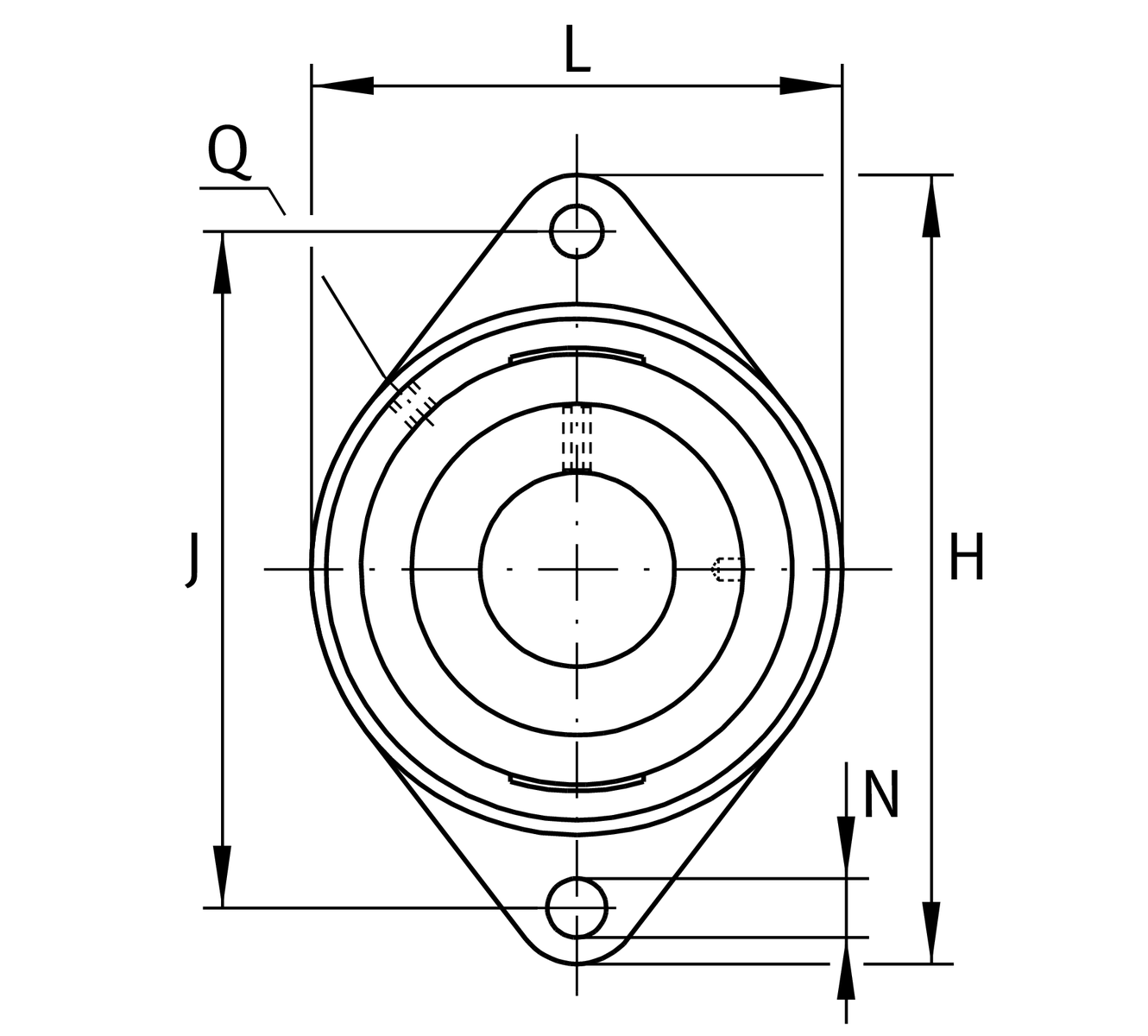

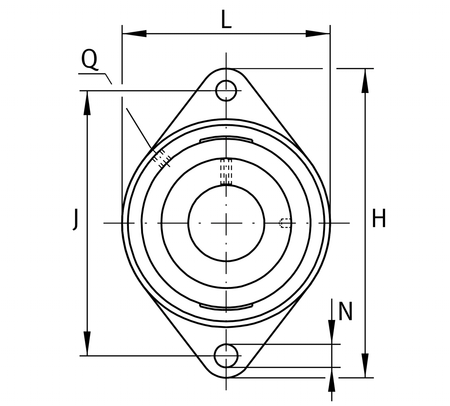

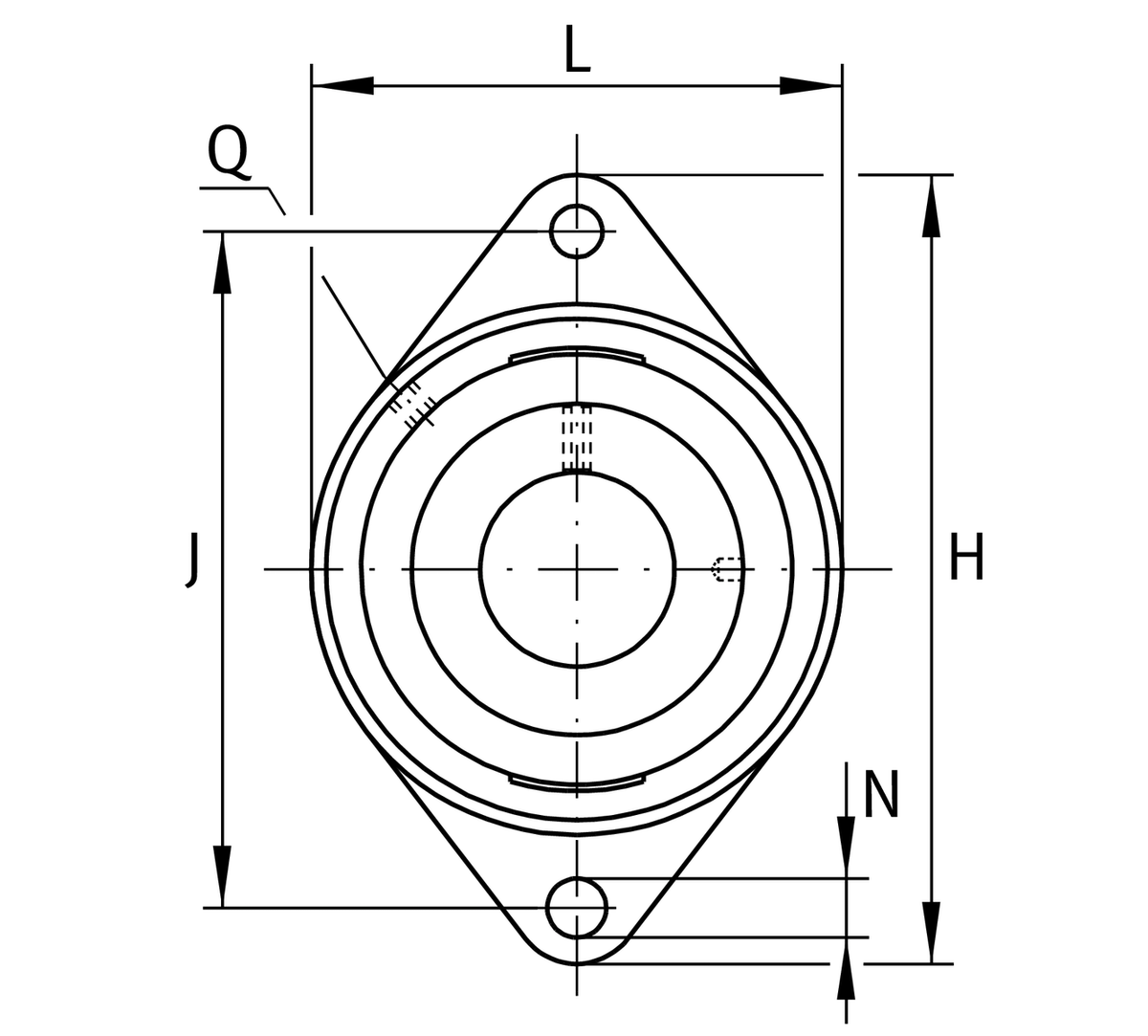

Main Dimensions & Performance Data
d 45 mm Bore diameter
L 108 mm Flange width
H 188 mm Height flange
U 54.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 19.400 N Basic static load rating. radial
Cur 960 N Fatigue load limit. radial
C0r G 15.100 N Load carrying capacity (housing)
˜m 1 kg Weight
Mounting dimensions
J 148.5 mm Distance fixing bore
N 17 mm Fixing bore
W 4 mm Width across flats
n 2 Number of screwing holes

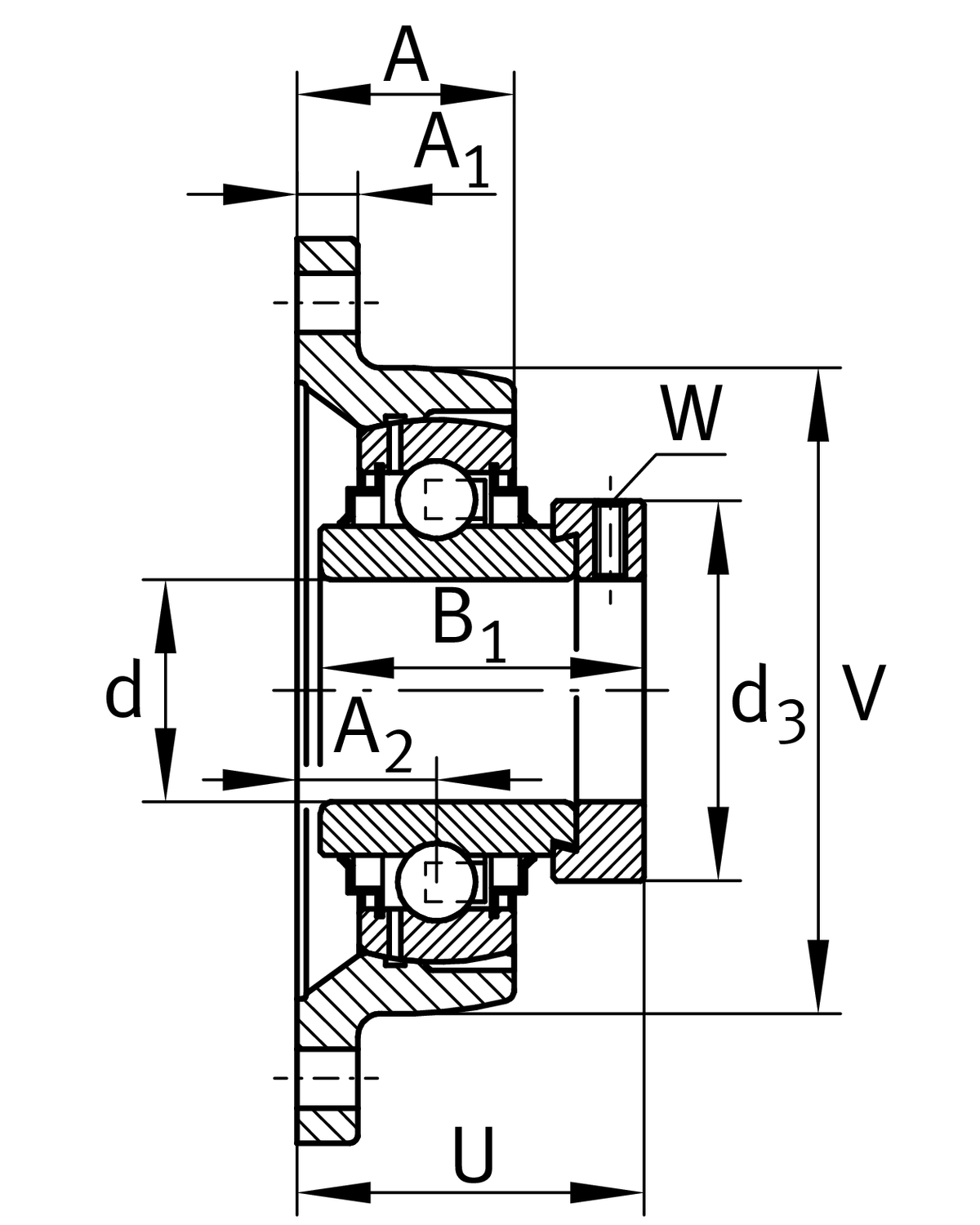

Dimensions
A 41 mm Height housing
A1 21 mm Thickness of flange
A2 24 mm Distance raceway
d 45 mm Bore diameter
L 108 mm Flange width
H 188 mm Height flange
U 54.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 19.400 N Basic static load rating. radial
Cur 960 N Fatigue load limit. radial
C0r G 15.100 N Load carrying capacity (housing)
˜m 1 kg Weight
Mounting dimensions
J 148.5 mm Distance fixing bore
N 17 mm Fixing bore
W 4 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 41 mm Height housing
A1 21 mm Thickness of flange
A2 24 mm Distance raceway
