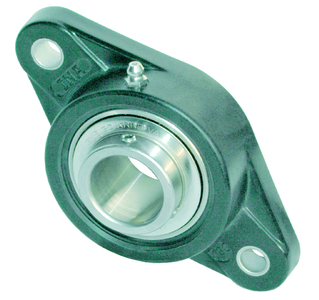

INA RCJTY50-TV-VA-HLA
Normale prijs
€544,59
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 50 mm Bore diameter
L 115 mm Flange width
H 197 mm Height flange
U 57.6 mm Total height unit
Cr 33.500 N Basic dynamic load rating. radial
C0r 22.100 N Basic static load rating. radial
Cur 1.090 N Fatigue load limit. radial
C0r G 15.600 N Load carrying capacity (housing)
˜m 1.106 kg Weight

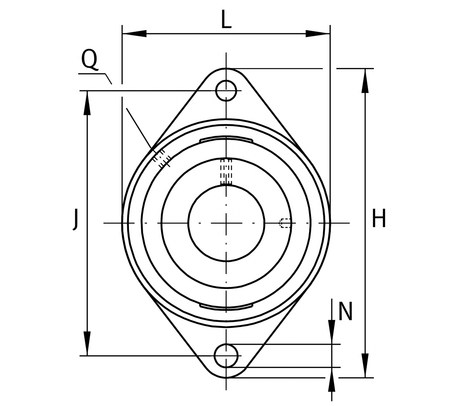

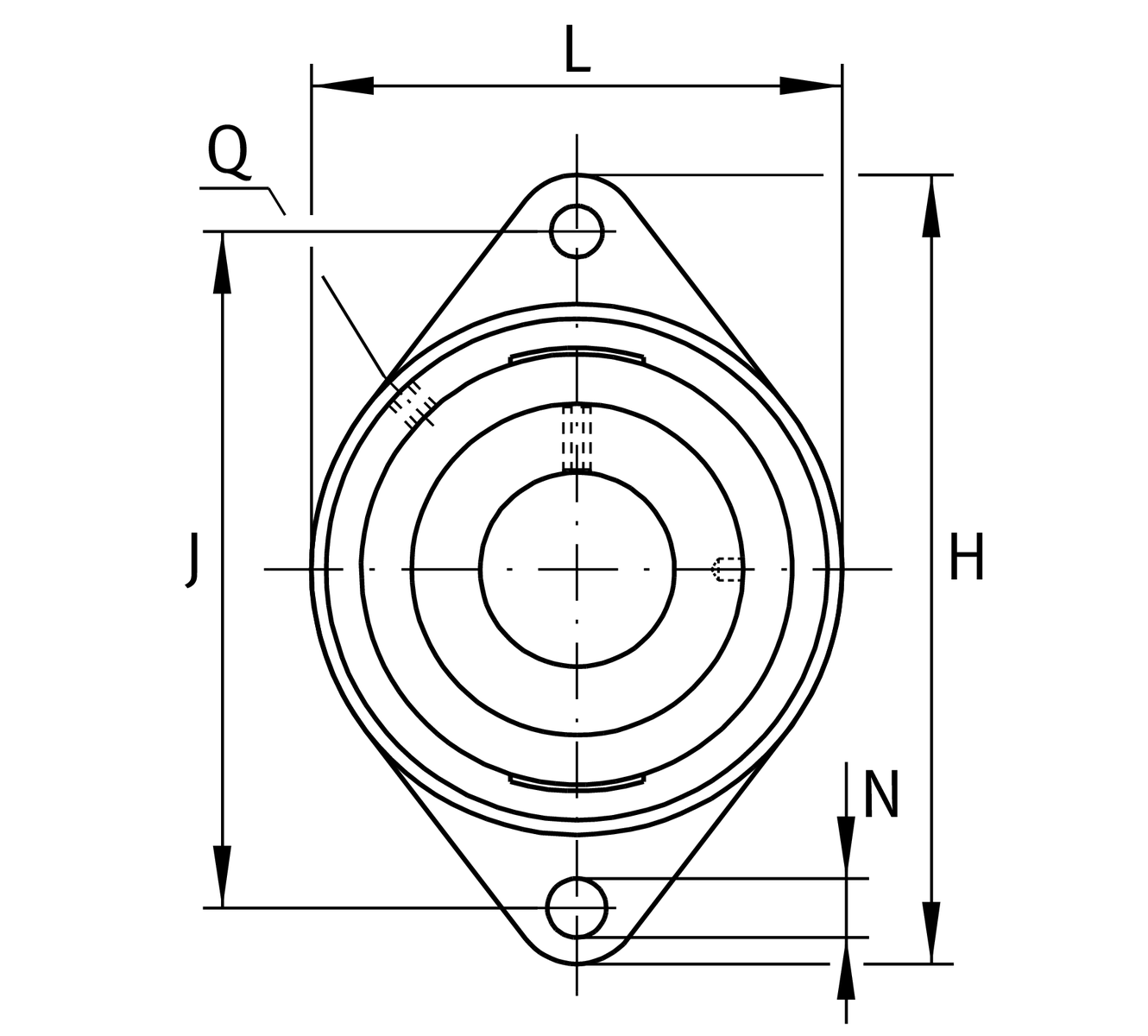

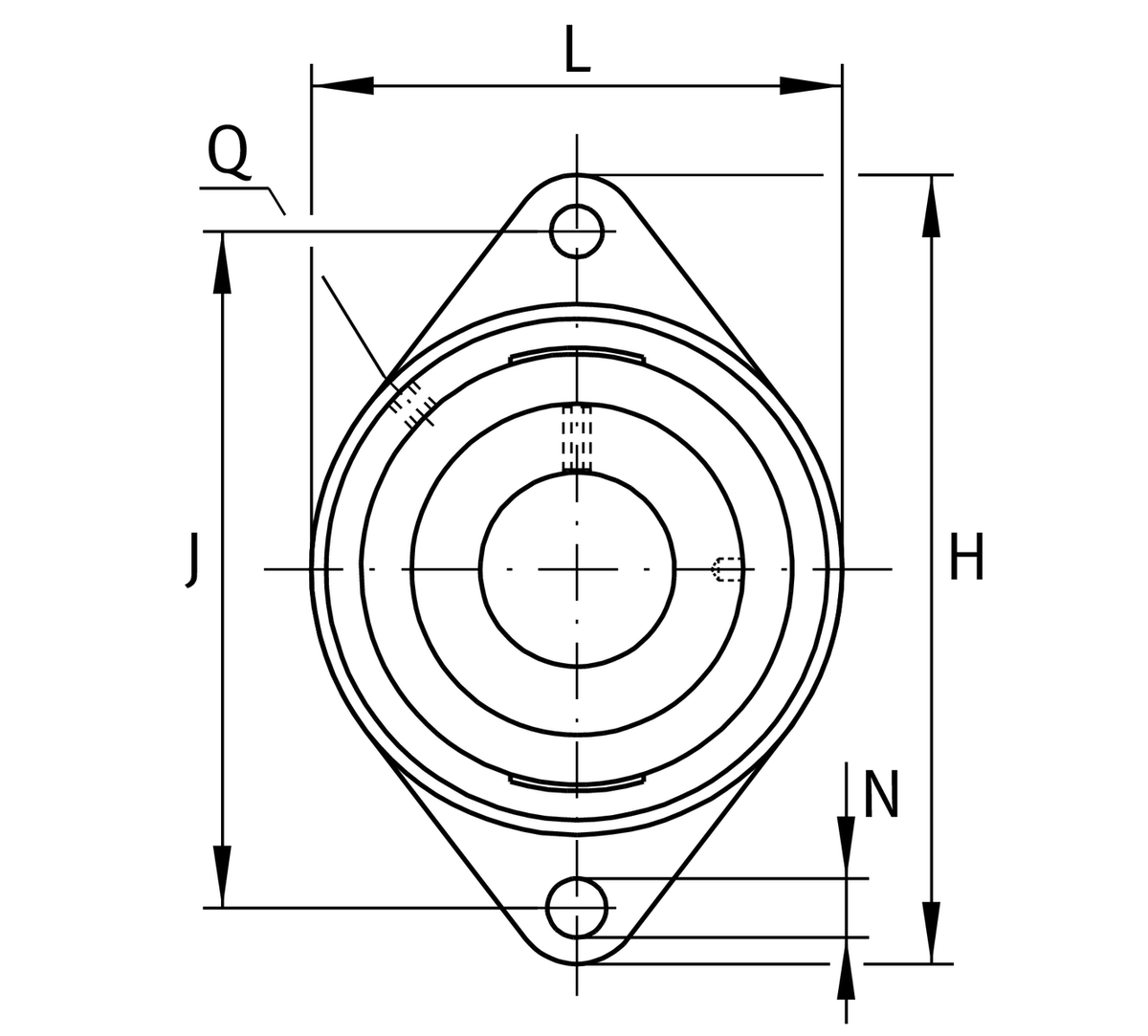

Mounting dimensions
J 157 mm Distance fixing bore
N 17 mm Fixing bore
W 5 mm Width across flats
n 2 Number of screwing holes

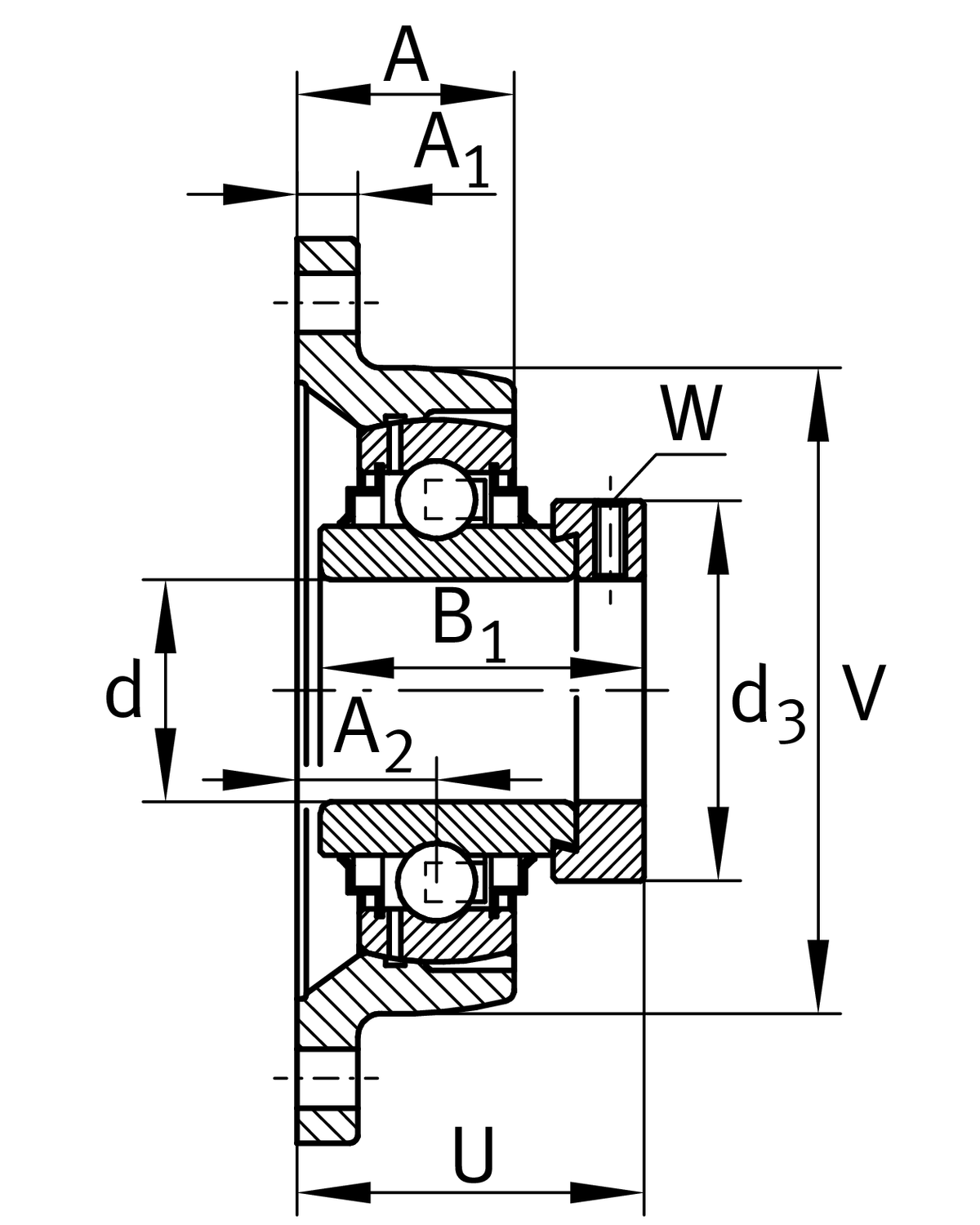

Dimensions
A 43 mm Height housing
A1 21 mm Thickness of flange
A2 25 mm Distance raceway
d 50 mm Bore diameter
L 115 mm Flange width
H 197 mm Height flange
U 57.6 mm Total height unit
Cr 33.500 N Basic dynamic load rating. radial
C0r 22.100 N Basic static load rating. radial
Cur 1.090 N Fatigue load limit. radial
C0r G 15.600 N Load carrying capacity (housing)
˜m 1.106 kg Weight
Mounting dimensions
J 157 mm Distance fixing bore
N 17 mm Fixing bore
W 5 mm Width across flats
n 2 Number of screwing holes
Dimensions
A 43 mm Height housing
A1 21 mm Thickness of flange
A2 25 mm Distance raceway
