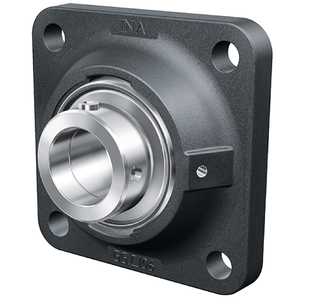

INA RCJ55-XL
Normale prijs
€244,71
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 55 mm Bore diameter
L 162 mm Flange width
U 74.6 mm Total height unit
Cr 46.000 N Basic dynamic load rating. radial
C0r 29.000 N Basic static load rating. radial
Cur 1.240 N Fatigue load limit. radial
˜m 3.51 kg Weight

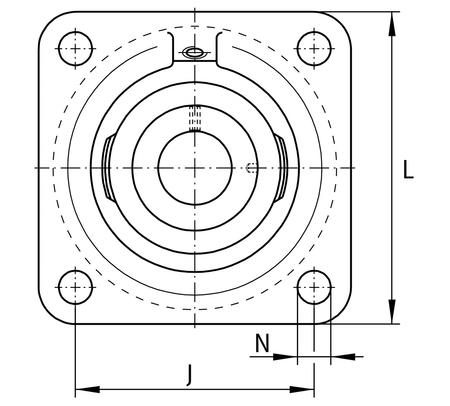

Mounting dimensions
J 130 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes

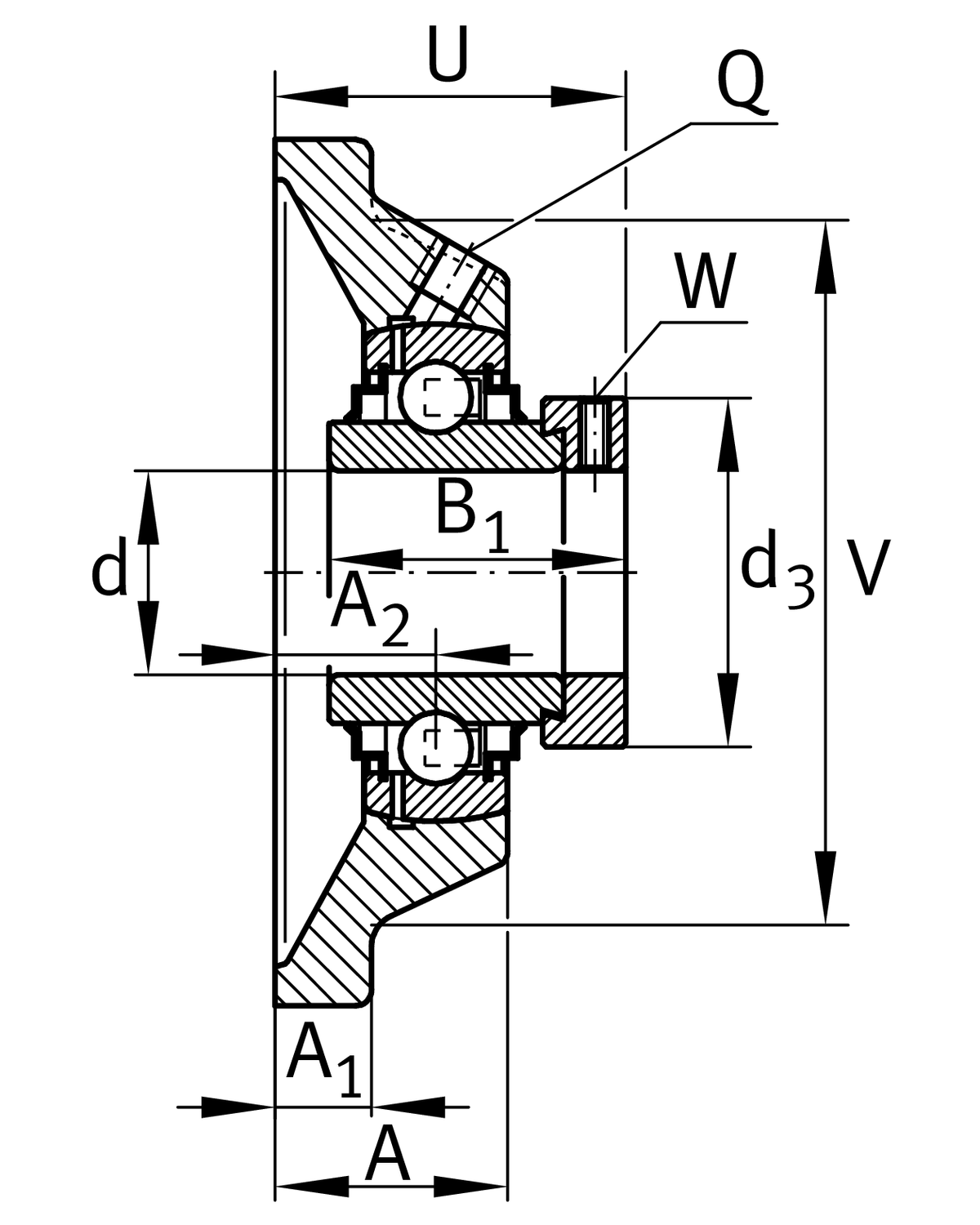

Dimensions
A 43.5 mm Height housing
A1 15 mm Thickness of flange
A2 31 mm Distance raceway
V 140 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 76 mm Outside diameter locking device
d 55 mm Bore diameter
L 162 mm Flange width
U 74.6 mm Total height unit
Cr 46.000 N Basic dynamic load rating. radial
C0r 29.000 N Basic static load rating. radial
Cur 1.240 N Fatigue load limit. radial
˜m 3.51 kg Weight

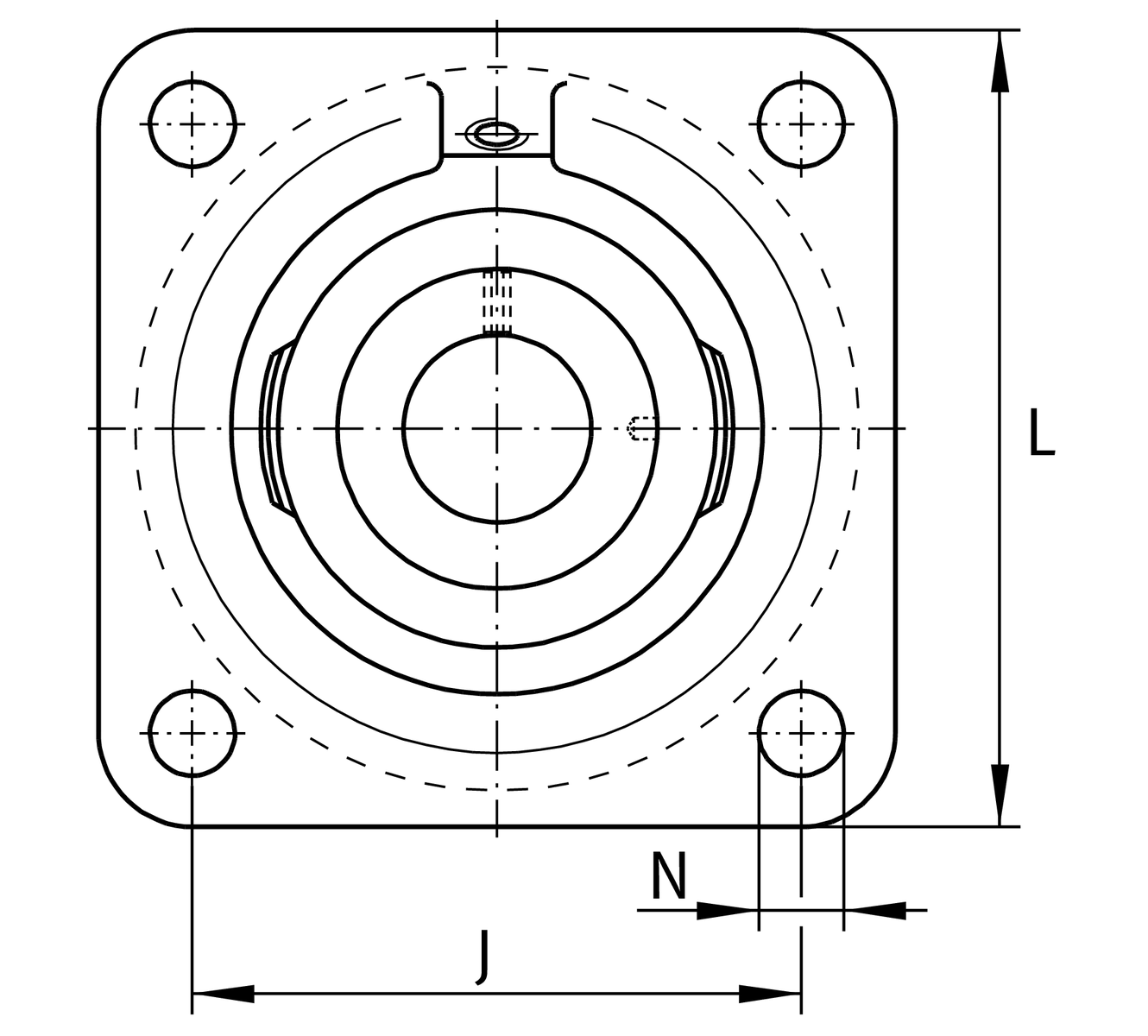

Mounting dimensions
J 130 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes
Dimensions
A 43.5 mm Height housing
A1 15 mm Thickness of flange
A2 31 mm Distance raceway
V 140 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 76 mm Outside diameter locking device
