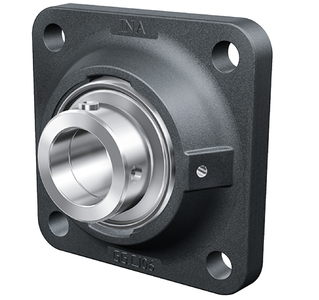

INA RCJ60-XL-N
Normale prijs
€310,04
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 60 mm Bore diameter
L 175 mm Flange width
U 80.9 mm Total height unit
Cr 56.000 N Basic dynamic load rating. radial
C0r 36.000 N Basic static load rating. radial
Cur 1.710 N Fatigue load limit. radial
˜m 4.27 kg Weight

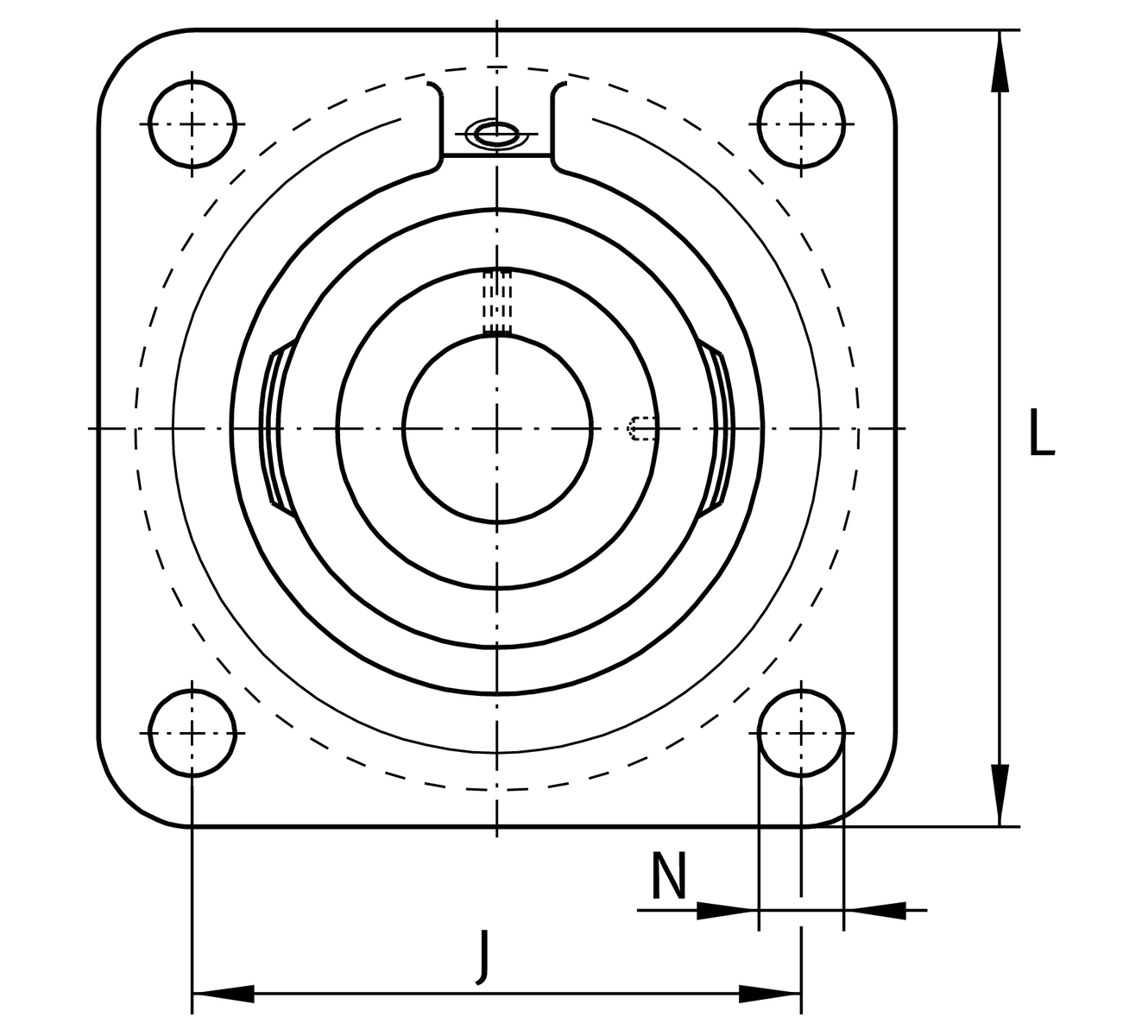

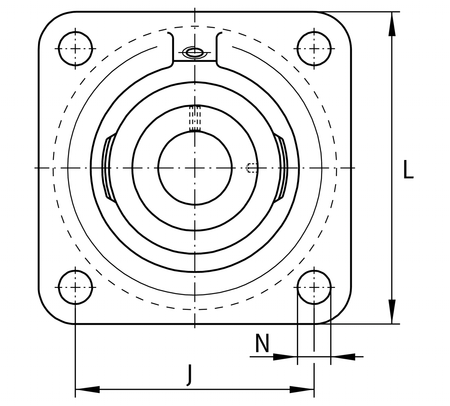

Mounting dimensions
J 143 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes

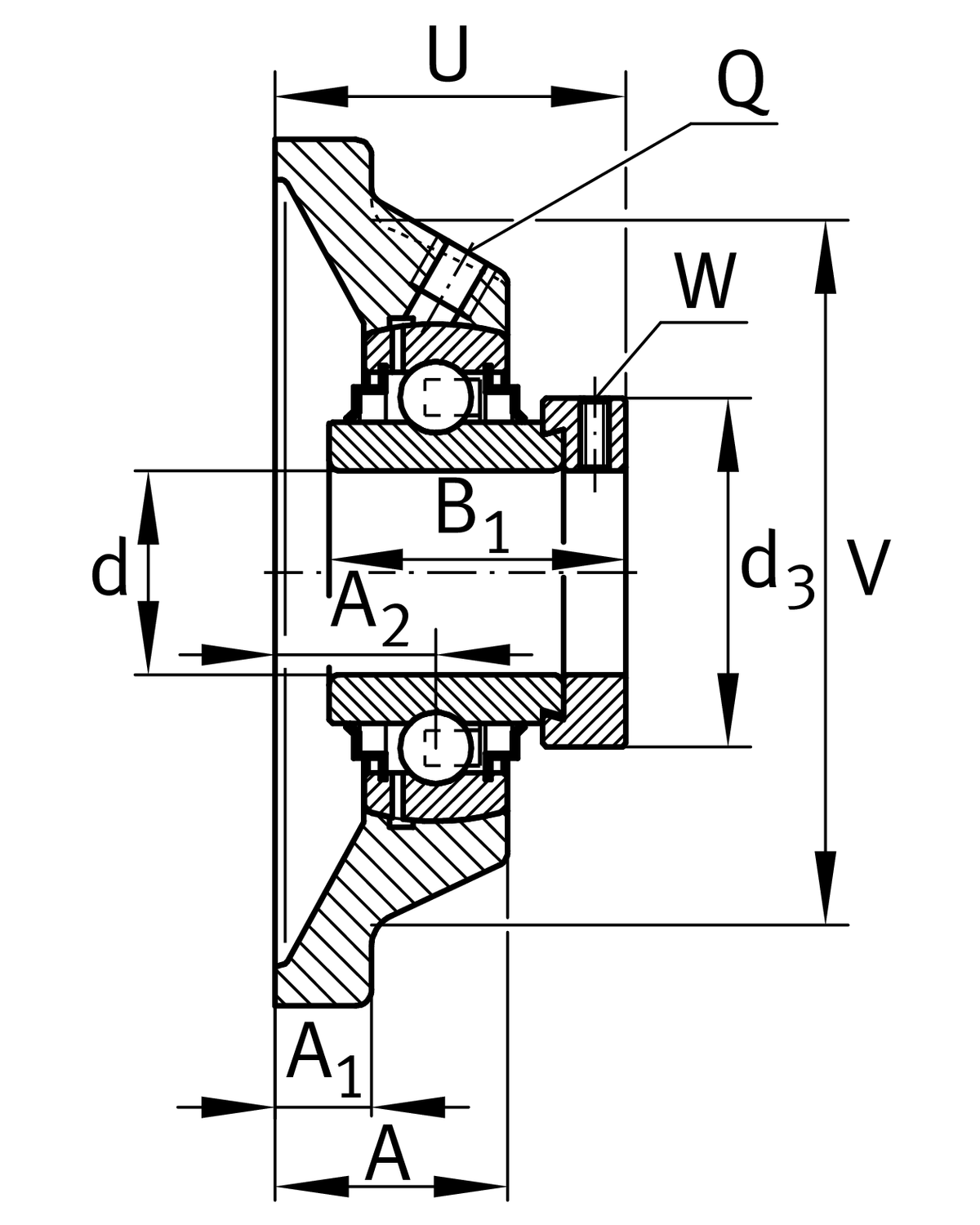

Dimensions
A 47.5 mm Height housing
A1 16 mm Thickness of flange
A2 34 mm Distance raceway
V 150 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 84 mm Outside diameter locking device
d 60 mm Bore diameter
L 175 mm Flange width
U 80.9 mm Total height unit
Cr 56.000 N Basic dynamic load rating. radial
C0r 36.000 N Basic static load rating. radial
Cur 1.710 N Fatigue load limit. radial
˜m 4.27 kg Weight
Mounting dimensions
J 143 mm Distance fixing bore
N 18 mm Fixing bore
n 4 Number of screwing holes
Dimensions
A 47.5 mm Height housing
A1 16 mm Thickness of flange
A2 34 mm Distance raceway
V 150 mm Shoulder diameter housing
Q M6 Connection thread for lubrication
d3 84 mm Outside diameter locking device
