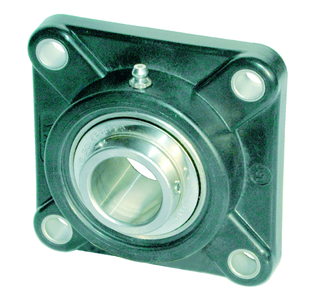

INA RCJY20-TV-VA-HLA
Normale prijs
€216,49
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 20 mm Bore diameter
L 86 mm Flange width
U 36.3 mm Total height unit
Cr 12.300 N Basic dynamic load rating. radial
C0r 6.300 N Basic static load rating. radial
Cur 310 N Fatigue load limit. radial
C0r G 10.200 N Load carrying capacity (housing)
˜m 0.294 kg Weight

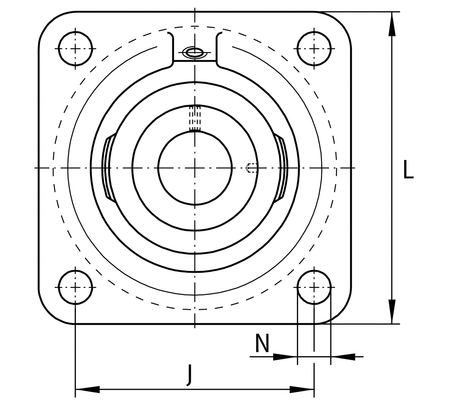

Mounting dimensions
J 63.5 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width of flats
n 4 Number of screwing holes

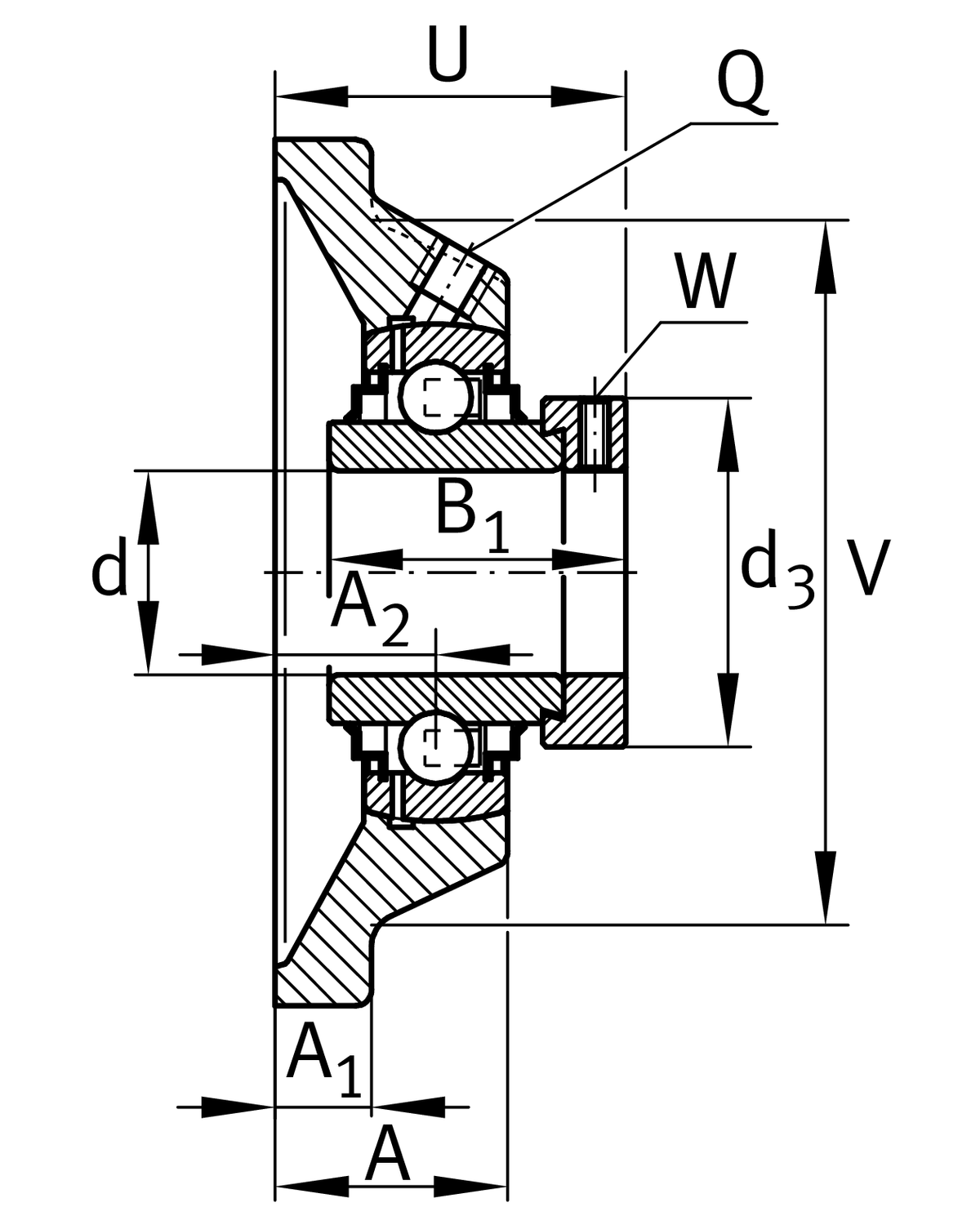

Dimensions
A 27.8 mm Height housing
A1 13.4 mm Thickness of flange
A2 18 mm Distance raceway
B 31 mm Width
d 20 mm Bore diameter
L 86 mm Flange width
U 36.3 mm Total height unit
Cr 12.300 N Basic dynamic load rating. radial
C0r 6.300 N Basic static load rating. radial
Cur 310 N Fatigue load limit. radial
C0r G 10.200 N Load carrying capacity (housing)
˜m 0.294 kg Weight

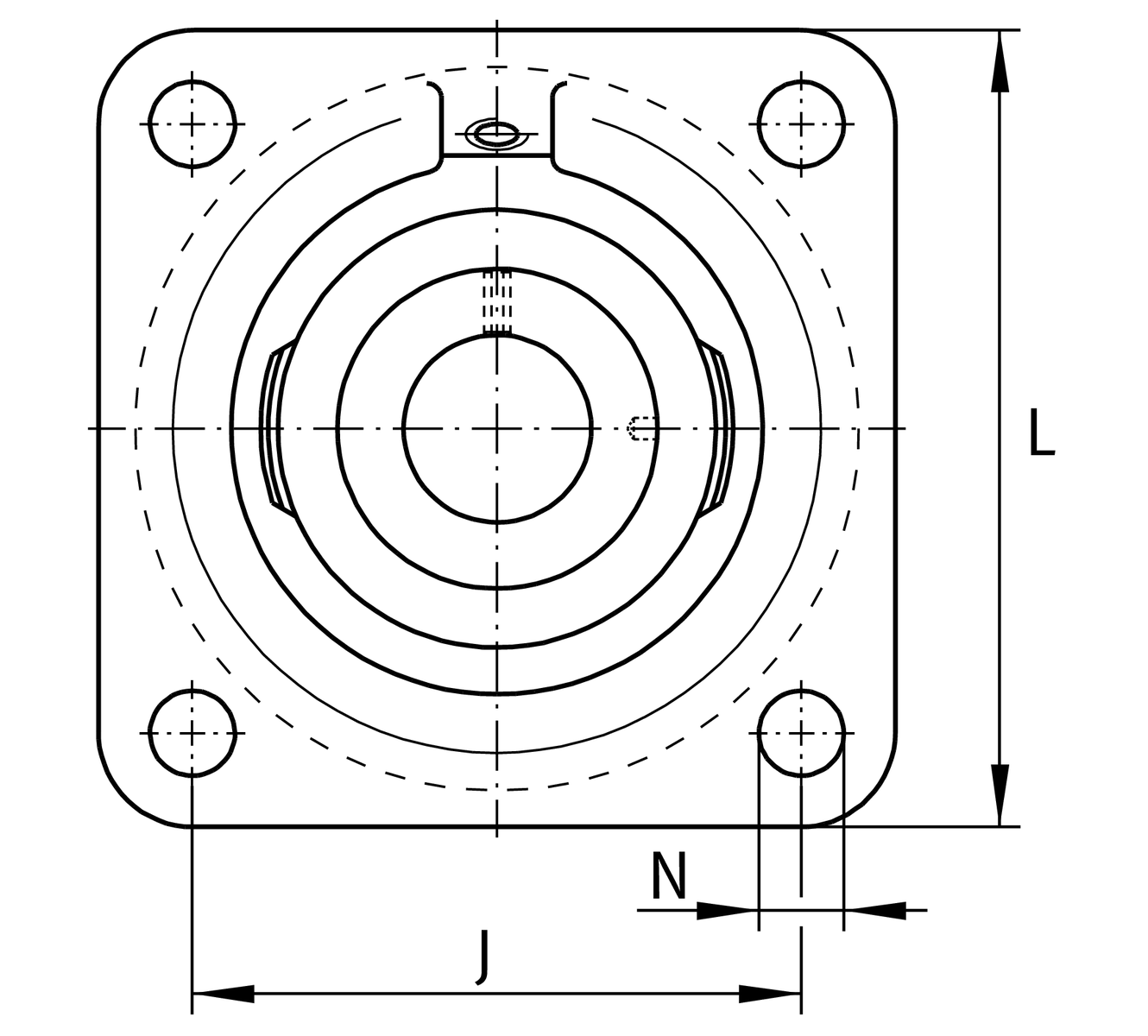

Mounting dimensions
J 63.5 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 27.8 mm Height housing
A1 13.4 mm Thickness of flange
A2 18 mm Distance raceway
B 31 mm Width
