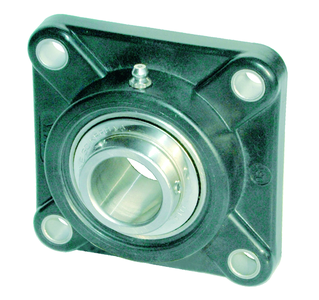

INA RCJY25-TV-VA-HLA
Normale prijs
€254,01
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 25 mm Bore diameter
L 95 mm Flange width
U 36.8 mm Total height unit
Cr 13.400 N Basic dynamic load rating. radial
C0r 7.500 N Basic static load rating. radial
Cur 370 N Fatigue load limit. radial
C0r G 12.100 N Load carrying capacity (housing)
˜m 0.36 kg Weight

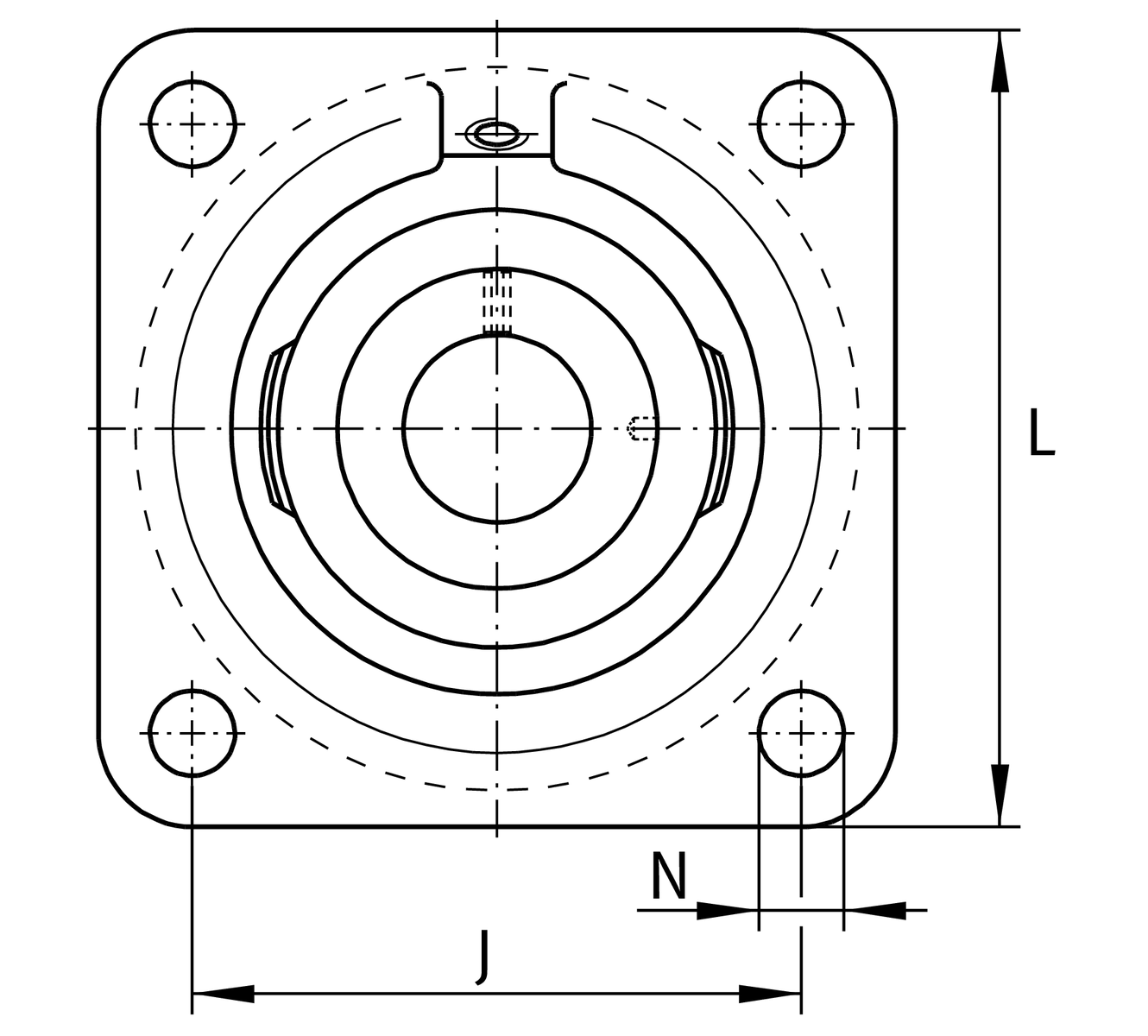

Mounting dimensions
J 70 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width of flats
n 4 Number of screwing holes

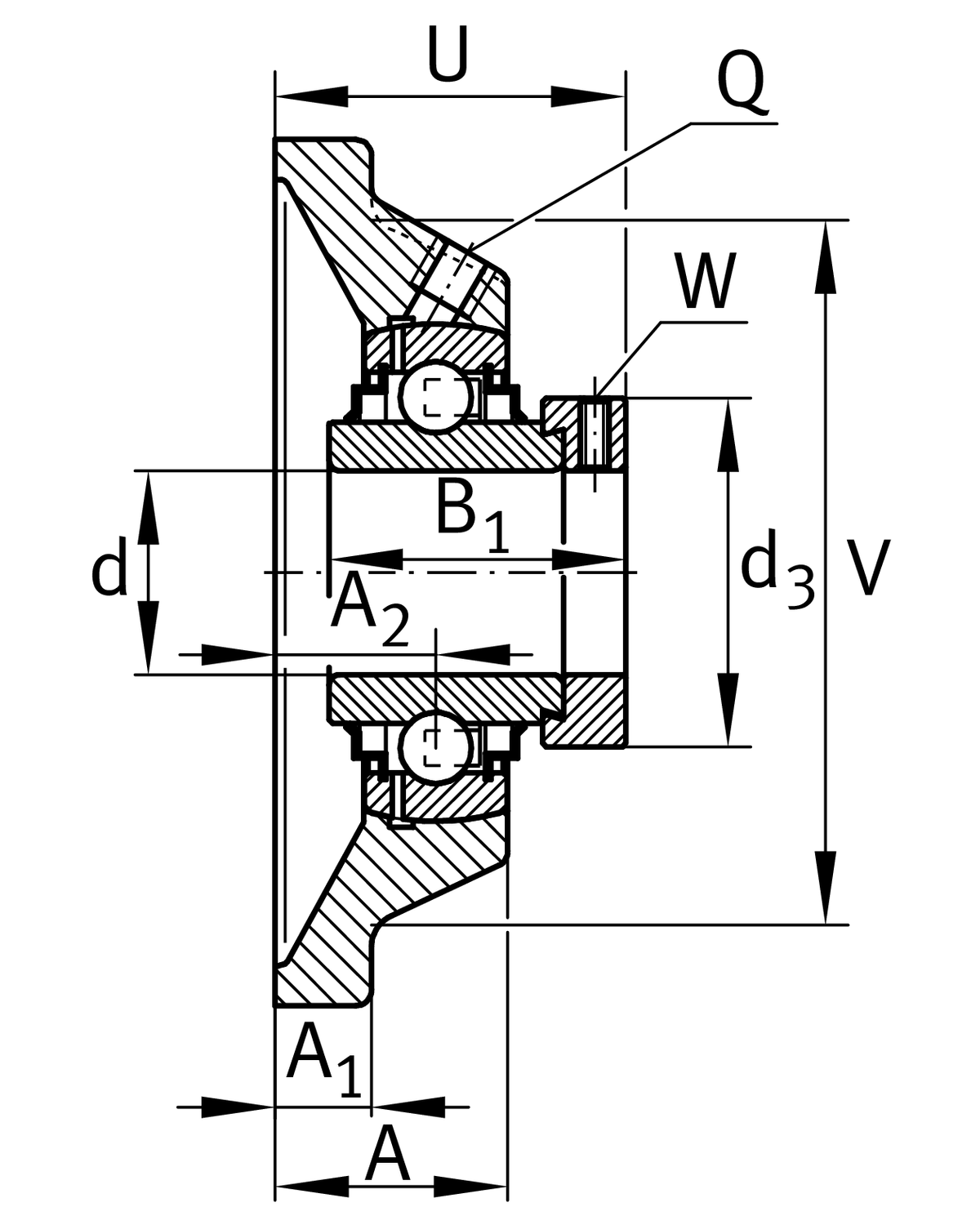

Dimensions
A 27.9 mm Height housing
A1 14.3 mm Thickness of flange
A2 14.3 mm Distance raceway
B 34.1 mm Width
d 25 mm Bore diameter
L 95 mm Flange width
U 36.8 mm Total height unit
Cr 13.400 N Basic dynamic load rating. radial
C0r 7.500 N Basic static load rating. radial
Cur 370 N Fatigue load limit. radial
C0r G 12.100 N Load carrying capacity (housing)
˜m 0.36 kg Weight

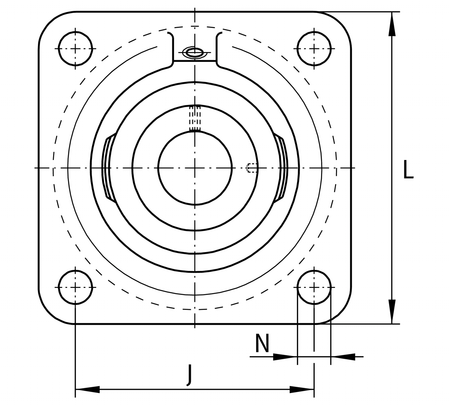

Mounting dimensions
J 70 mm Distance fixing bore
N 11 mm Fixing bore
W 2.5 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 27.9 mm Height housing
A1 14.3 mm Thickness of flange
A2 14.3 mm Distance raceway
B 34.1 mm Width
