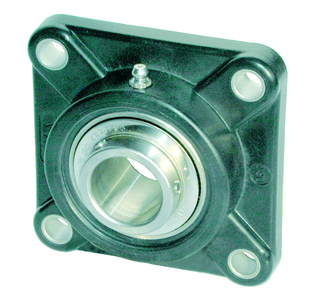

INA RCJY35-TV-VA-HLA
Normale prijs
€354,09
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 35 mm Bore diameter
L 117 mm Flange width
U 46.9 mm Total height unit
Cr 24.600 N Basic dynamic load rating. radial
C0r 14.600 N Basic static load rating. radial
Cur 720 N Fatigue load limit. radial
C0r G 18.500 N Load carrying capacity (housing)
˜m 0.728 kg Weight

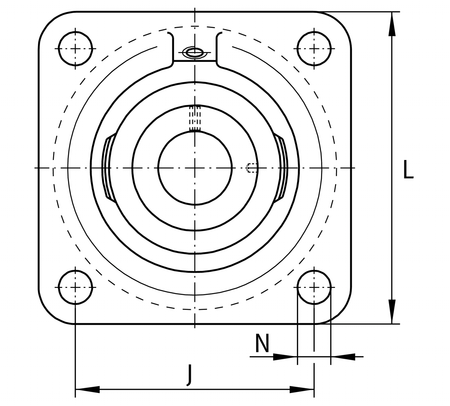

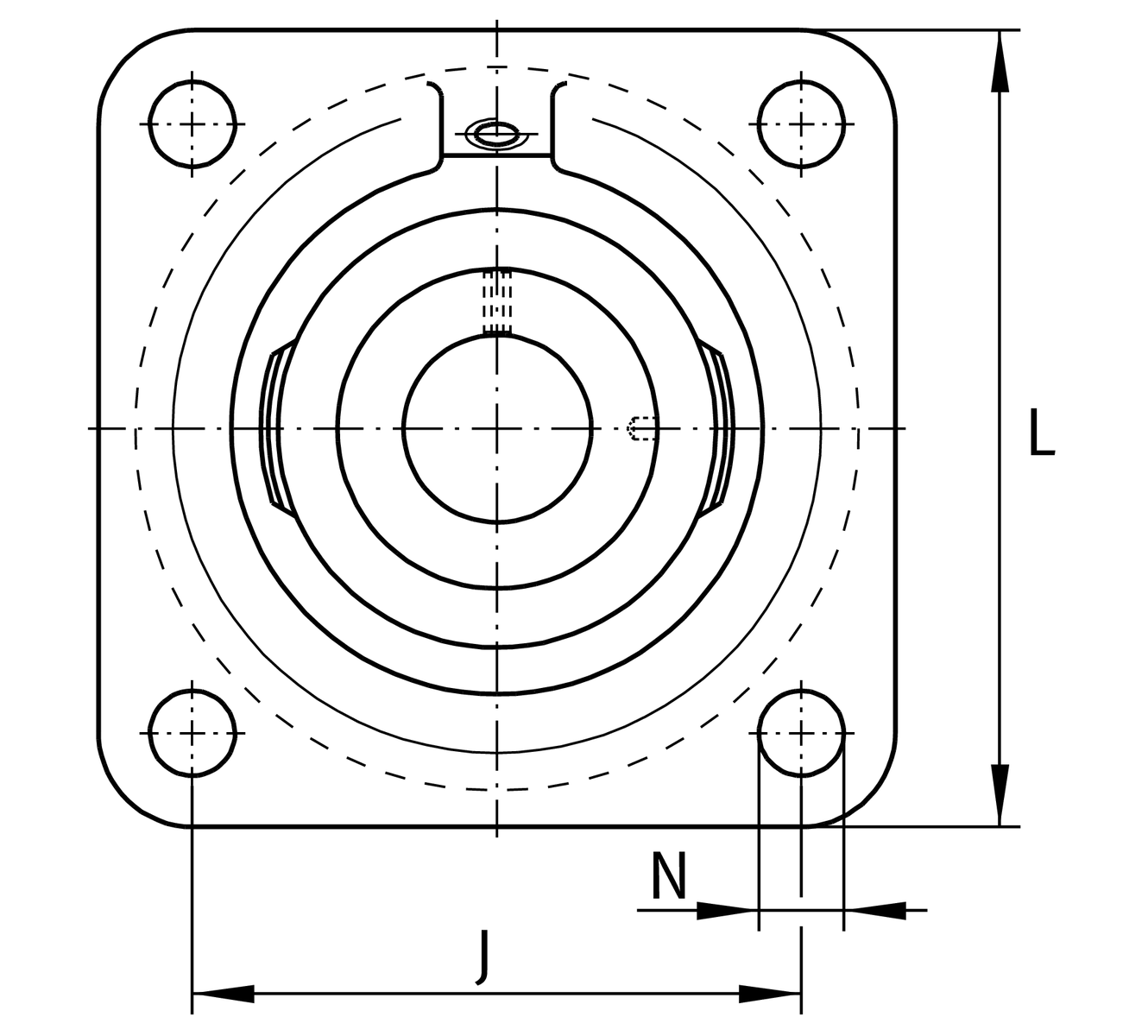

Mounting dimensions
J 92 mm Distance fixing bore
N 13 mm Fixing bore
W 3 mm Width of flats
n 4 Number of screwing holes

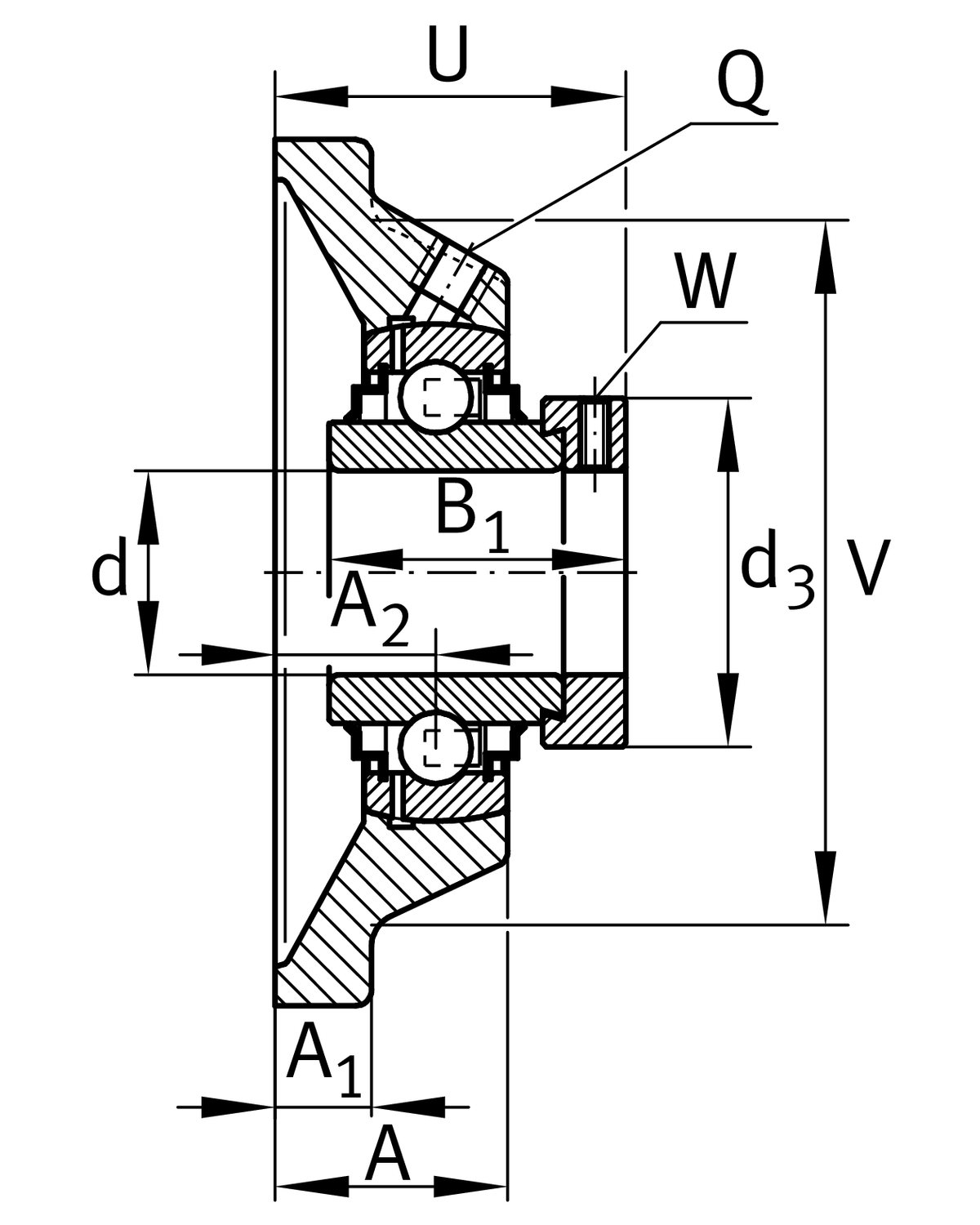

Dimensions
A 34.8 mm Height housing
A1 15.5 mm Thickness of flange
A2 21.5 mm Distance raceway
B 42.9 mm Width
d 35 mm Bore diameter
L 117 mm Flange width
U 46.9 mm Total height unit
Cr 24.600 N Basic dynamic load rating. radial
C0r 14.600 N Basic static load rating. radial
Cur 720 N Fatigue load limit. radial
C0r G 18.500 N Load carrying capacity (housing)
˜m 0.728 kg Weight
Mounting dimensions
J 92 mm Distance fixing bore
N 13 mm Fixing bore
W 3 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 34.8 mm Height housing
A1 15.5 mm Thickness of flange
A2 21.5 mm Distance raceway
B 42.9 mm Width
