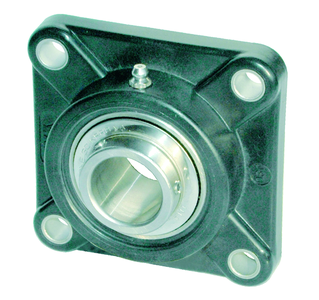

INA RCJY40-TV-VA-HLA
Normale prijs
€386,78
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 40 mm Bore diameter
L 130 mm Flange width
U 53.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 18.900 N Basic static load rating. radial
Cur 930 N Fatigue load limit. radial
C0r G 19.200 N Load carrying capacity (housing)
˜m 1.1 kg Weight

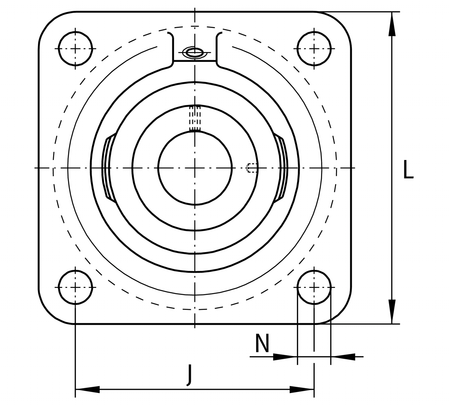

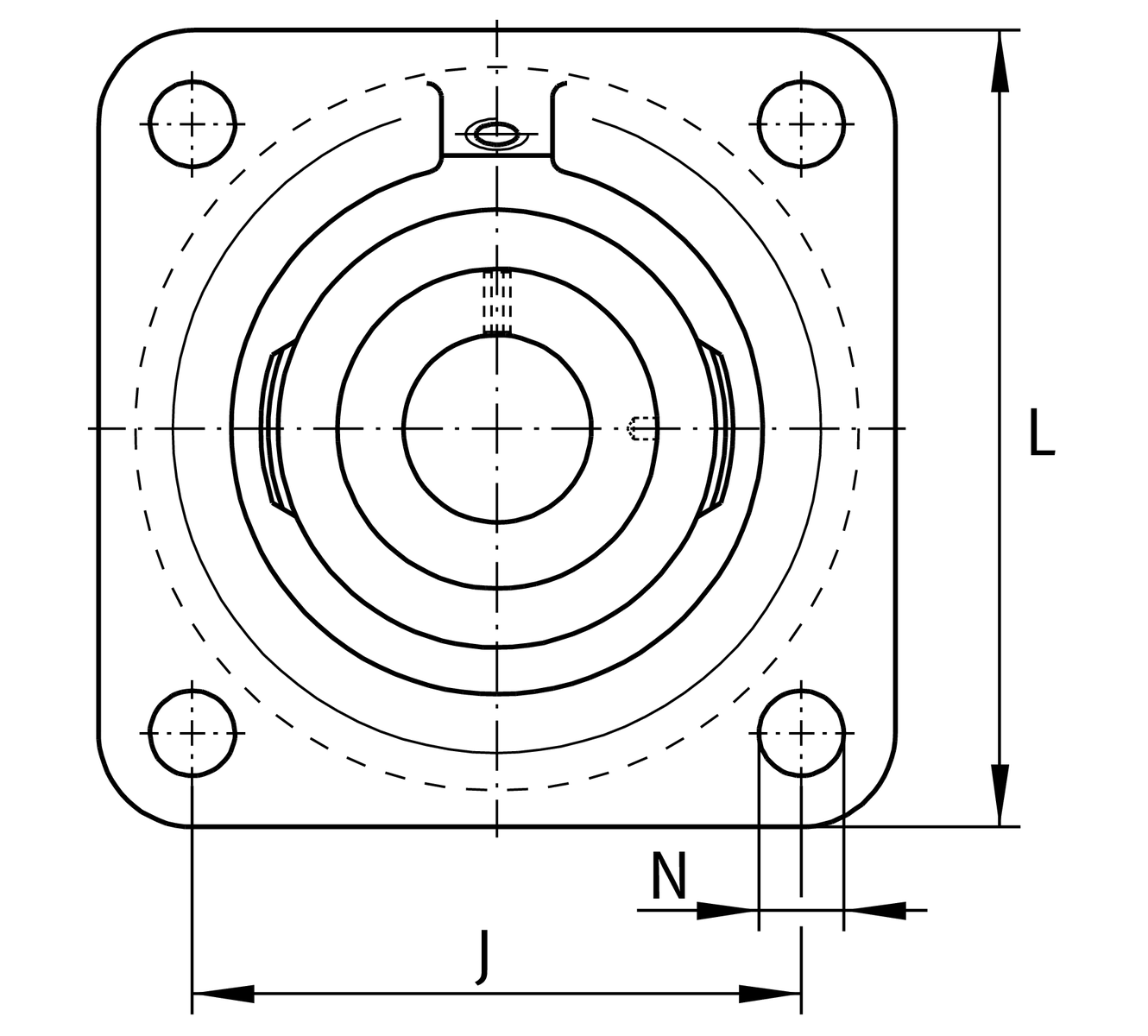

Mounting dimensions
J 102 mm Distance fixing bore
N 14 mm Fixing bore
W 4 mm Width of flats
n 4 Number of screwing holes

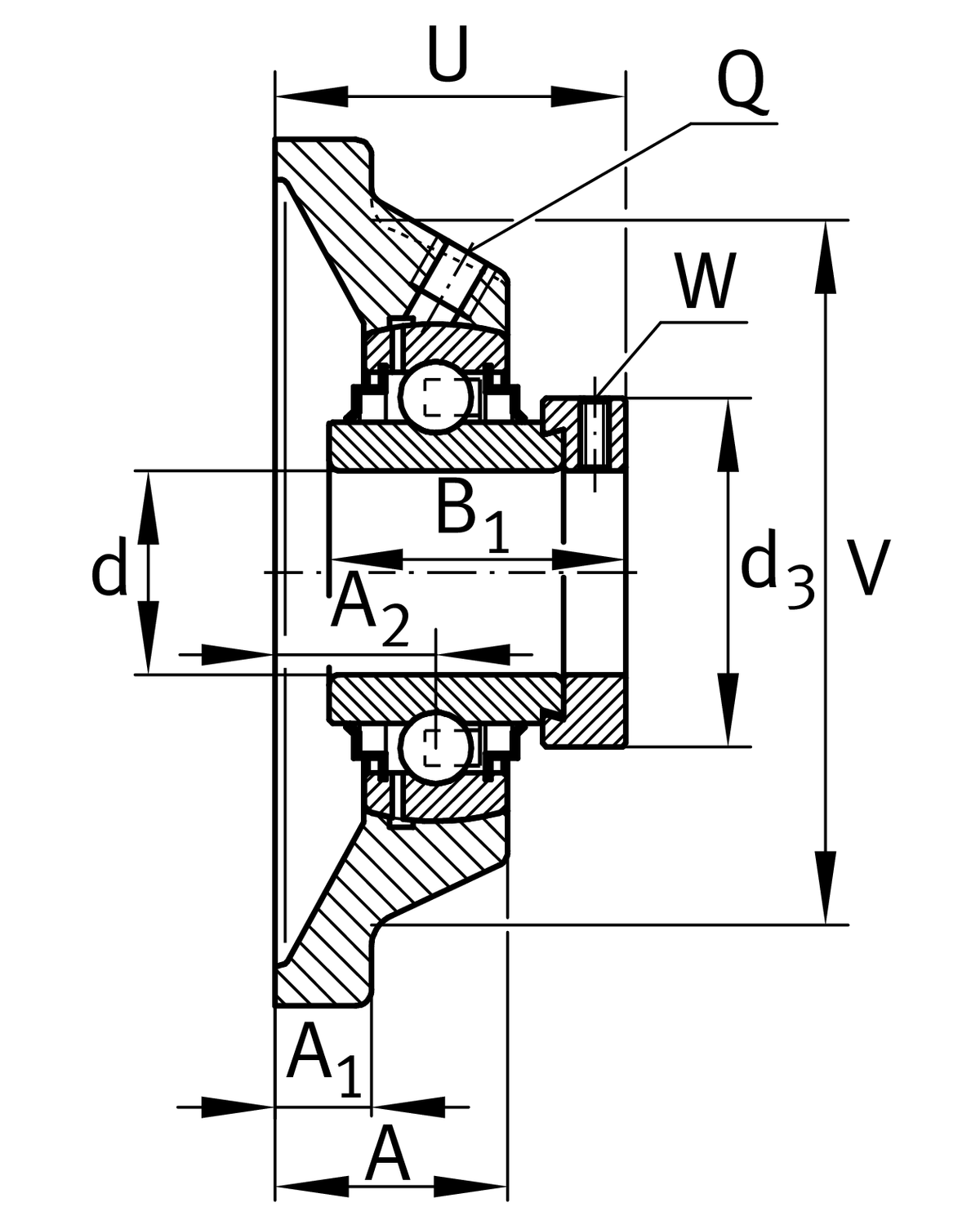

Dimensions
A 37.5 mm Height housing
A1 17 mm Thickness of flange
A2 23 mm Distance raceway
B 49.2 mm Width
d 40 mm Bore diameter
L 130 mm Flange width
U 53.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 18.900 N Basic static load rating. radial
Cur 930 N Fatigue load limit. radial
C0r G 19.200 N Load carrying capacity (housing)
˜m 1.1 kg Weight
Mounting dimensions
J 102 mm Distance fixing bore
N 14 mm Fixing bore
W 4 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 37.5 mm Height housing
A1 17 mm Thickness of flange
A2 23 mm Distance raceway
B 49.2 mm Width
