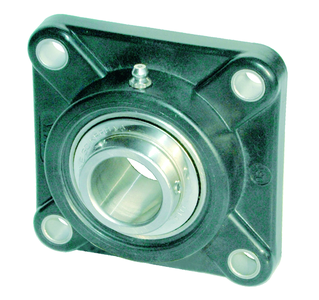

INA RCJY45-TV-VA-HLA
Normale prijs
€487,11
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 45 mm Bore diameter
L 137 mm Flange width
U 54.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 19.400 N Basic static load rating. radial
Cur 960 N Fatigue load limit. radial
C0r G 19.300 N Load carrying capacity (housing)
˜m 1.04 kg Weight

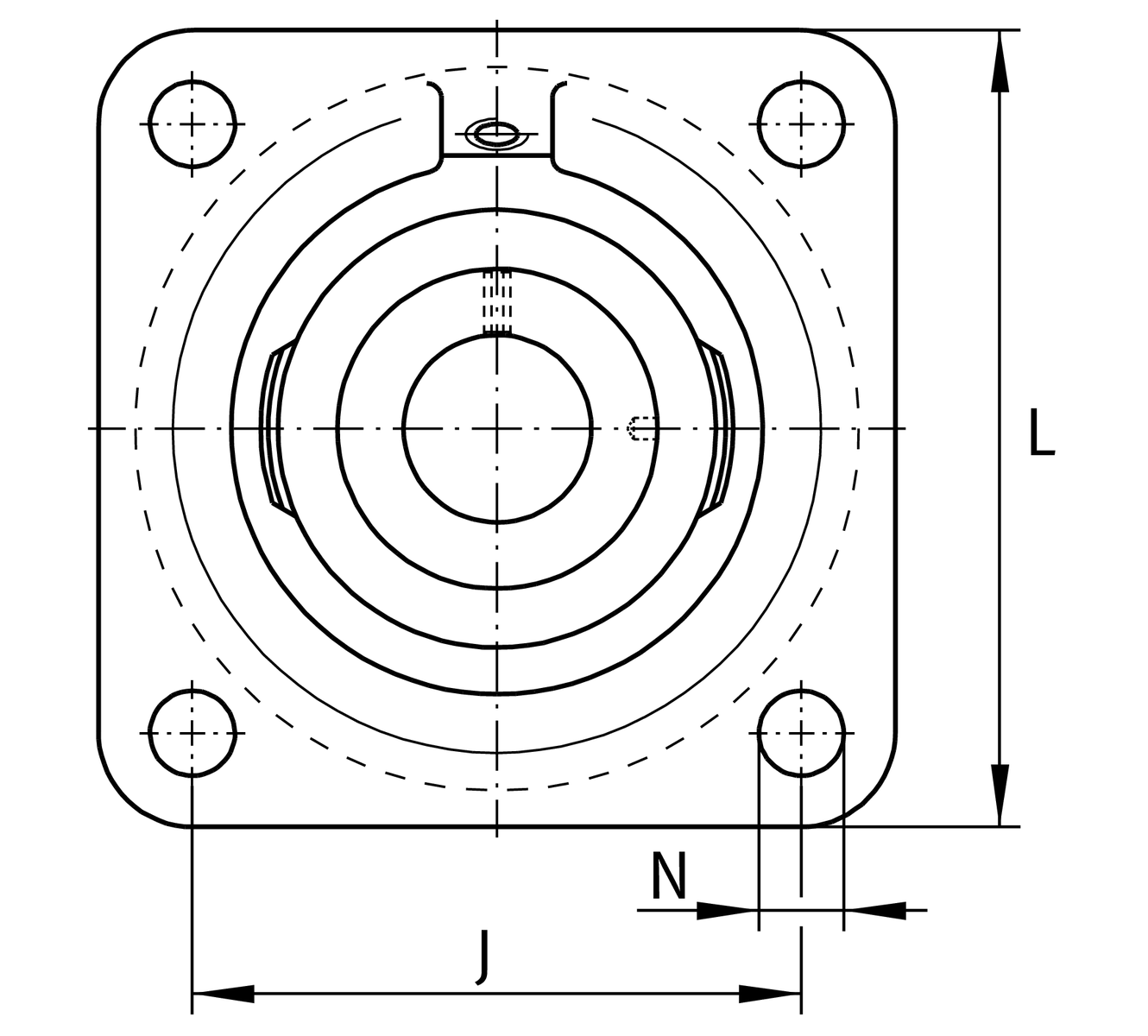

Mounting dimensions
J 105 mm Distance fixing bore
N 17 mm Fixing bore
W 4 mm Width of flats
n 4 Number of screwing holes

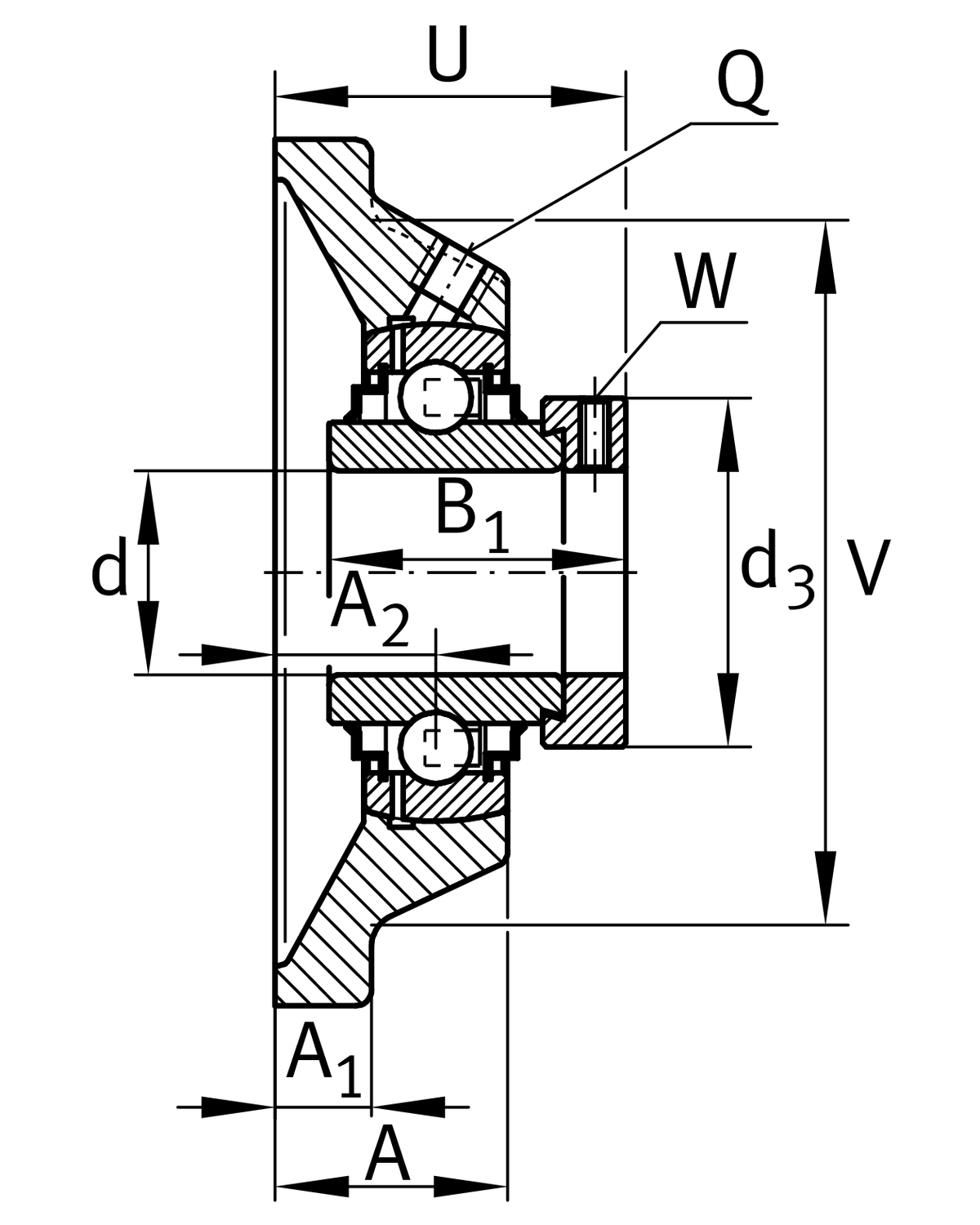

Dimensions
A 41 mm Height housing
A1 19 mm Thickness of flange
A2 24 mm Distance raceway
B 49.2 mm Width
d 45 mm Bore diameter
L 137 mm Flange width
U 54.2 mm Total height unit
Cr 31.500 N Basic dynamic load rating. radial
C0r 19.400 N Basic static load rating. radial
Cur 960 N Fatigue load limit. radial
C0r G 19.300 N Load carrying capacity (housing)
˜m 1.04 kg Weight

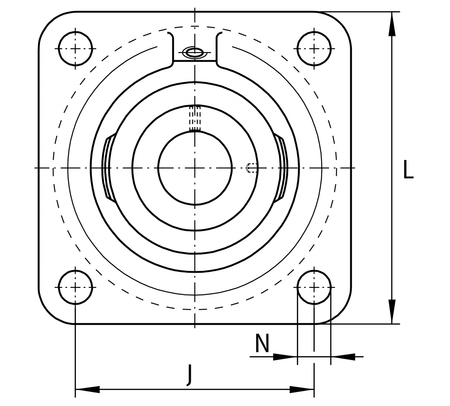

Mounting dimensions
J 105 mm Distance fixing bore
N 17 mm Fixing bore
W 4 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 41 mm Height housing
A1 19 mm Thickness of flange
A2 24 mm Distance raceway
B 49.2 mm Width
