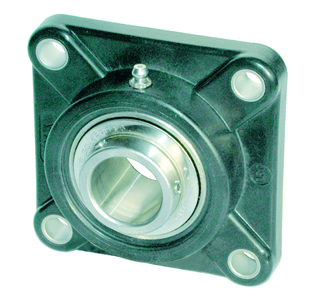

INA RCJY50-TV-VA-HLA
Normale prijs
€544,59
Laden voor beschikbaarheid voor ophalen niet mogelijk
Heeft u vragen?
Main Dimensions & Performance Data
d 50 mm Bore diameter
L 143 mm Flange width
U 57.6 mm Total height unit
Cr 33.500 N Basic dynamic load rating. radial
C0r 22.100 N Basic static load rating. radial
Cur 1.090 N Fatigue load limit. radial
C0r G 19.600 N Load carrying capacity (housing)
˜m 1.257 kg Weight

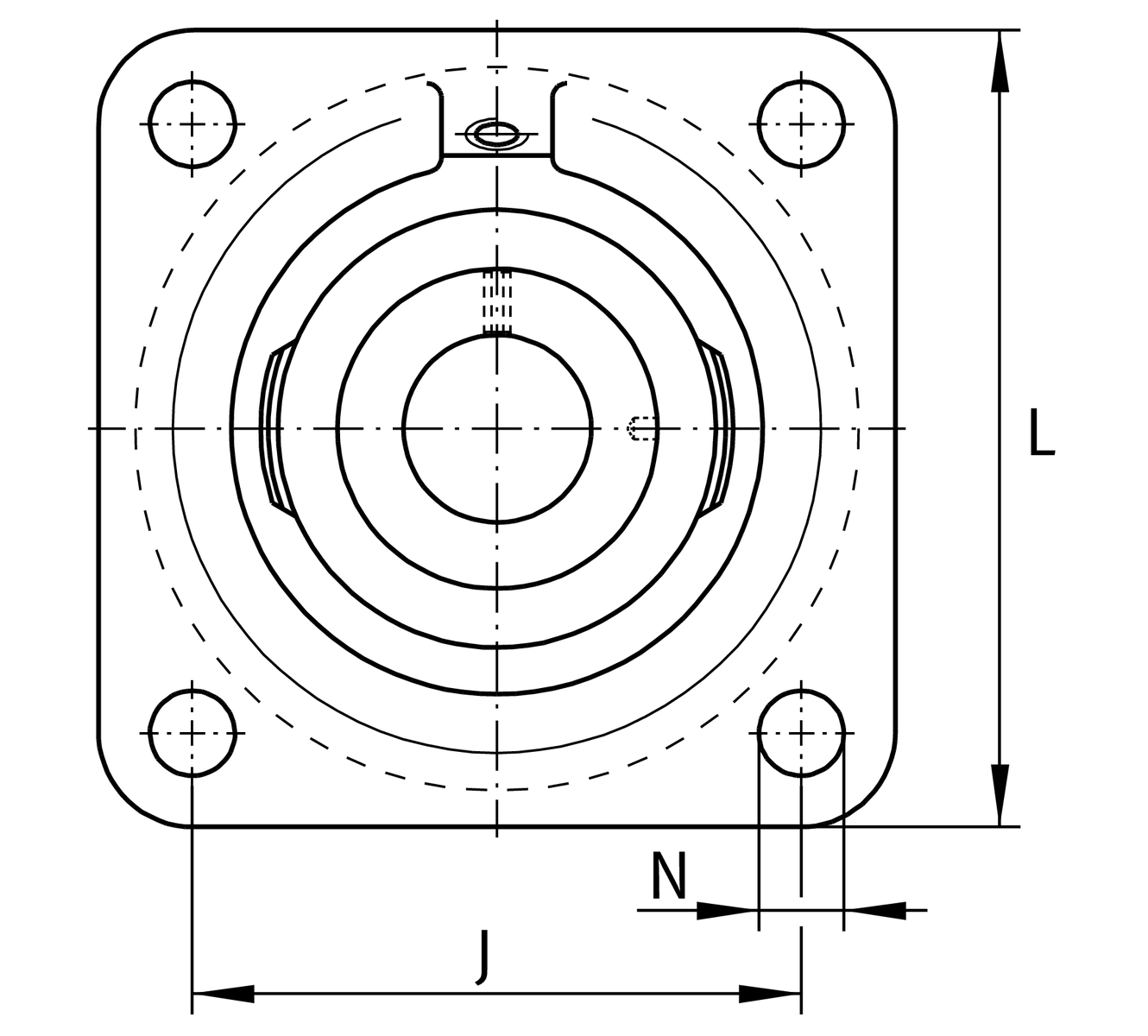

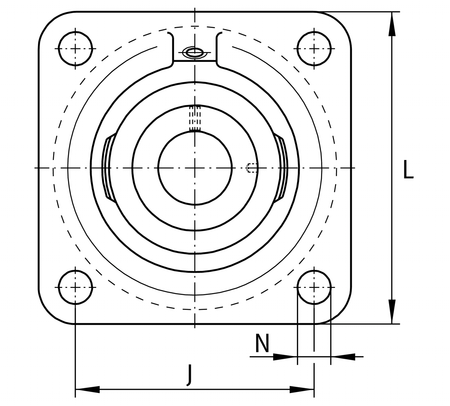

Mounting dimensions
J 111 mm Distance fixing bore
N 17 mm Fixing bore
W 5 mm Width of flats
n 4 Number of screwing holes

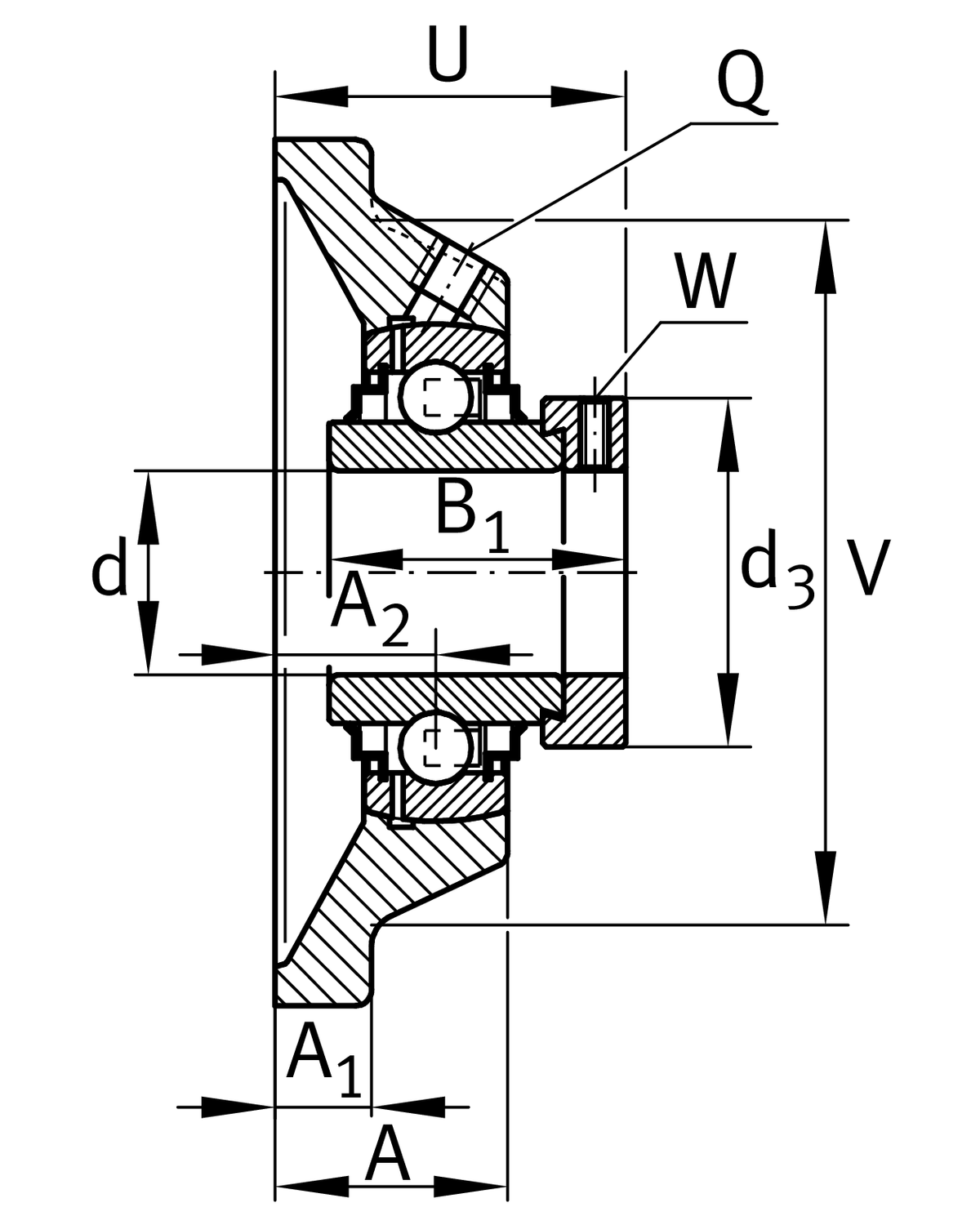

Dimensions
A 43 mm Height housing
A1 21 mm Thickness of flange
A2 25 mm Distance raceway
B 51.6 mm Width
d 50 mm Bore diameter
L 143 mm Flange width
U 57.6 mm Total height unit
Cr 33.500 N Basic dynamic load rating. radial
C0r 22.100 N Basic static load rating. radial
Cur 1.090 N Fatigue load limit. radial
C0r G 19.600 N Load carrying capacity (housing)
˜m 1.257 kg Weight
Mounting dimensions
J 111 mm Distance fixing bore
N 17 mm Fixing bore
W 5 mm Width of flats
n 4 Number of screwing holes
Dimensions
A 43 mm Height housing
A1 21 mm Thickness of flange
A2 25 mm Distance raceway
B 51.6 mm Width
